Industrial bin vent filter for fine dust particles
Enhance your production line with efficient fine dust filtration to ensure clean operations and meet stringent environmental standards.
Filters and De-dusts Fine Particles

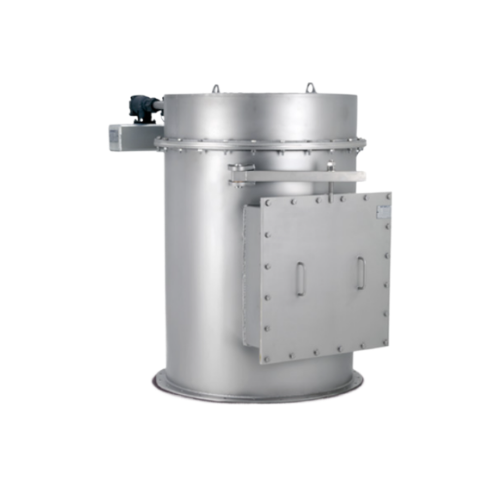

The DEB Filter ZSD from Zeppelin Systems is a pressure shock-proof ventilation filter designed for high-efficiency filtration and de-dusting across various industries, including chemical, food, plastics, and rubber. This system utilizes anti-static filter cartridges with a PTFE membrane, optimizing for environments handling powdered sugar, polyethylene pellets, and carbon black.
Its robust stainless steel construction ensures durability, and the cylindrical housing design facilitates easy access to filter cartridges via a hinged side door. The modular system is equipped with a microprocessor control system and air jet pipes for effective de-dusting with purified compressed air, ensuring continuous, automated operation.
Operational and compliance excellence is achieved through features like a compressed air reservoir with pneumatic diaphragm valves, differential pressure monitoring, and design compliance with ATEX 2014/34/EU for Zone 22 areas. The DEB Filter ZSD integrates seamlessly into existing processes, offering customization options, including electronic master controllers and soundproofing, tailored to meet specific production line requirements.
Benefits
- Enhances air quality by efficiently removing fine dust particles, ensuring a safe working environment.
- Saves space with downwards removal of filter cartridges, eliminating the need for overhead clearance.
- Reduces manual intervention through automated de-dusting with integrated pneumatic controls.
- Ensures process reliability with compliance to ATEX standards for explosive dust environments.
- Supports flexible integration with modular design for customization to specific production needs.
- Applications
- Food industry,Chemical industry,Fine dust,Plastics,Rubber and tire industry
- End products
- Polyethylene pellets,Powdered sugar,Rubber pellets,Pigment powders,Carbon black,Whey protein powder
- Steps before
- Material Handling,Dust Collection,Material Blending
- Steps after
- Air Filtration,Dust Collection,Safety Compliance Check
- Input ingredients
- fine dust particles,compressed air,de-oiled air,dust class M particles
- Output ingredients
- purified air,clean gas
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Filter housing material
- Stainless steel (1.4301)
- Filter housing height
- 1,000 mm
- Filter cartridge diameter
- 120 mm (DEB)
- Compressed air pressure
- Up to 6 bar
- Cartridge material
- Anti-static polyester fleece with PTFE membrane or aluminum coating
- Dust class
- "M" in accordance with DIN EN 60335-2-69
- Pneumatic valve control voltage
- 24 V DC
- Microprocessor control system
- Available
- Differential pressure monitoring
- Optional
- ATEX compliance
- 2014/34/EU for Zone 22
- Batch vs. continuous operation
- Batch / Inline Continuous
- Automation level
- Manual / PLC / SCADA
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- CIP/SIP
- CIP 121°C / SIP 135°C
- ATEX certification
- 2014/34/EU for Zone 22
- Dust class certification
- M (DIN EN 60335-2-69)
- Footprint
- Compact
- Shape
- Cylindrical
- Height
- 1,000 mm
- Material
- Stainless Steel (1.4301)
- Filter Cartridge Diameter
- 120 mm
- Access
- Hinged Side Door
- Discharge Method
- Pull Downwards
- De-dusting control
- Electronic master controller
- Differential pressure monitoring
- Available
- Anti-static filter cartridges
- PTFE membrane or aluminum coating
- Soundproofing
- Available
- Compliance
- ATEX 2014/34/EU Zone 22
- Microprocessor control system
- Available
