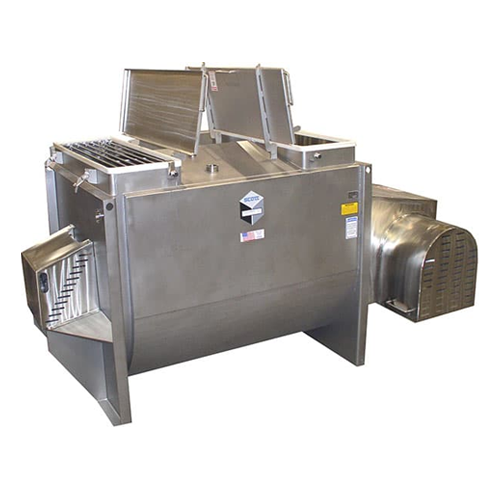

Industrial batch mixer agitators

Achieve precise and efficient mixing of diverse materials with industrial batch mixer agitators, ideal for integrating into both batch and continuous production lines.

Mixes and Blends Industrial Products Efficiently

The Industrial Batch Mixer Agitators from Scott Equipment are pivotal in achieving consistent, high-quality mixing of solid, powder, and granule products in sectors like animal nutrition and pharmaceuticals. These agitators feature options for heavy-duty ribbon or paddle designs, ensuring thorough blending with cycle times as low as 90 seconds. Available in both mild and stainless steel, they are designed to meet sanitary standards crucial for food and pharmaceutical applications. The agitators integrate seamlessly into existing production lines with optional surge hoppers and discharge conveyors for enhanced throughput and efficiency. Additionally, they support customization for specific processing requirements and offer easy cleaning with polished surfaces, making them suitable for operations needing frequent product changeovers. These agitators are also designed to comply with industry standards, ensuring reliability in demanding industrial environments.

Benefits

  • Enhances production efficiency with rapid mixing cycles as brief as 90 seconds.
  • Ensures product integrity with sanitary designs, minimizing contamination risks.
  • Reduces downtime with easy cleaning features and quick changeover capabilities.
  • Supports diverse applications across industries such as food, pharmaceuticals, and recycling.
  • Adapts to specific requirements with customizable material and design options.

General


Applications
Food,Ethanol,Pet food,Poultry litter,Fertilizer,Animal nutrition,Recycling,Pharmaceuticals
End products
Distillers dried grains,Poultry bedding pellets,Soup mixes,Animal feed supplements,Nitrogen-phosphorus-potassium fertilizer,Recycled plastic granules,Pet kibbles,Vitamin capsules
Steps before
Grinding,Purification,Drying
Steps after
Sterilization,Packing
Input ingredients
raw materials,ingredients,animal nutrition products,ethanol components,fertilizer components,food ingredients,pet food ingredients,pharmaceutical ingredients,recyclable materials
Output ingredients
mixed batch,blended mixture,nutritional products,processed ethanol,fertilizer blend,food products,pet food products,pharmaceutical products,recycled materials
Market info
Scott Equipment is known for its expertise in custom-designed industrial mixing and processing equipment, catering to diverse industries with a strong reputation for quality, innovation, and customer-focused engineered-to-order solutions.

Technical Specifications


Material
Mild or Stainless Steel
Finish
Standard,Sanitary,High Polish
Mixing Cycle Time
As low as 90 seconds
Agitator Design
Six different designs
Agitator Type
Paddle and Ribbon
Blade Adjustability
Adjustable and Replaceable
Support Structure
Gusseted and supported with back straps
Air-Purge Design
Optional through the main shaft
Discharge Gate Options
Drop-bottom gate
Surge Conveyor Design
Curved section for inclines up to 45 degrees

Operating Characteristics


Agitator Flexibility
Adjustable and replaceable blades
Agitator Finish Options
Standard,sanitary,high-polish
Batch Cycle Time
90 seconds
Combination with Surge Hopper
Yes
Cleaning Method
Easy cleanout between cycles
Material Options
Mild or stainless steel
Mixing Efficiency
High-quality mix with balanced design
Mixing Type
Batch mixing
Surge Hopper Discharge Options
Paddle drag or screw conveyor
Testing Availability
Available in Scott Test Lab
Mixer Discharge Options
Drop-bottom gate or curved section

Material Compatibility


Cleanability
Polished sanitary design
Corrosive resistance (e.g. acids)
Stainless steel


3A Sanitary Standards
Optional,up to 3A Dairy Standard
FDA compliance
Possible through mild or stainless steel options
FDA materials
Stainless steel options available

Physical Characteristics


Construction Material
Mild steel / Stainless steel
Finish
Standard / Sanitary / High-polish
Agitator Design
Ribbon / Paddle
Agitator Design Type
Heavy Duty / Standard
Agitator Adjustability
Adjustable / Replaceable Blades
Cycle Time
As low as 90 seconds
Surge Hopper Capacity
Holds complete batch
Conveyor Type
Paddle drag / Screw

Custom Options


Material option
Mild steel / Stainless steel
Finish option
Standard / Sanitary / High-polish
Agitator type
Paddle / Ribbon / Ribbon-Paddle combination
Design type
Single Shaft / Twin Shaft Horizontal
Discharge method
Paddle drag conveyor / Screw conveyor / Drop-bottom gate
Surge conveyor design
Standard / Curved section for inclines up to 45 degrees
Blade design
Adjustable / Replaceable
