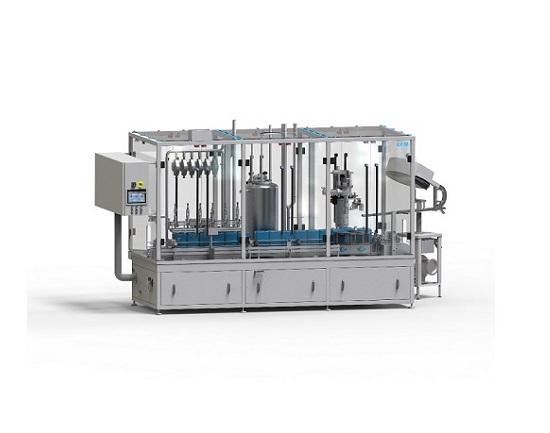

In-line monoblock linear filler & capper
In many food, chemicals and cosmetic industry processes it is vital to have a quick, accurate and reliable filling and sealing solution that can handle a wide variety of liquid types, including high viscosity and foaming products, into a range of bottle types.
High capacity filler and capper capable of handling wide range of product
The EFM Inline Monoblock Linear Filling and Capping series is available in both flowmeter and servo piston configurations to suit your exact requirements. Able to operate at up to 2,600 bottles per hour and fill volumes up to 30,000ml depending on model configuration, the Inline Monoblock is constructed in the Netherlands using all stainless steel and standardised components for longevity and ease of maintenance. Remote support from EFM engineers is also available for full peace of mind.
All variants features Siemens PLC and touchscreen controls, and all product contact points are of 316 stainless steel construction for longer life even when used with corrosive product. A polycarbonate safety casing gives superior protection and allows for excellent visibility for monitoring the filling and capping cycle. The capping module features high-torque sealing and a self-contained Detect and Reject operation to confirm the integrity of the seal, ensuring product quality.
The flowmeter variants are fitted with Endress & Hauser Mag or Mass flowmeters, and both flowmeter and servo piston versions feature bottle counting, individual centering detection and automated filling bridge height adjustment.
- High quality standardised components for ease of maintenance
- High capacity, with choice of fill-type variants to suit your exact requirements
- Capable of working with a wide range of product types and liquid viscosities
- Optional remote support service from manufacturer
- Up to 6 filling heads option available for maximum performance
