Immersion mill with sweep blade for high-viscosity products

Optimize your production line with this immersion mill designed to efficiently handle high-viscosity and heat-sensitive products, ensuring thorough dispersion and milling while minimizing manual intervention.

Processes High Viscosity and Thixotropic Products

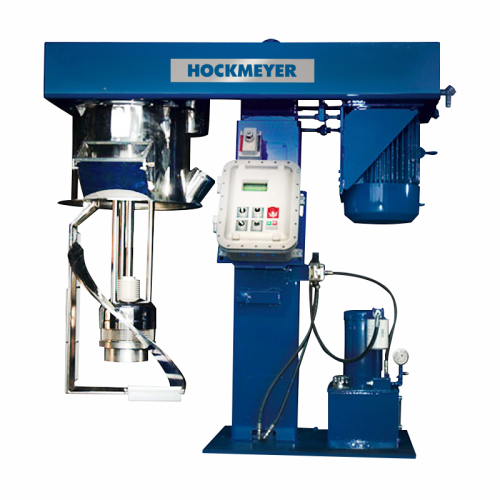

The HCPS Immersion Mill with Sweep Blade from Hockmeyer Equipment Corporation is engineered to handle the unique challenges of processing high viscosity and thixotropic products. Utilizing a patented sweep blade design, it ensures improved deagglomeration and heat transfer by compressing and scraping materials against the tank wall. The mill processes viscosities from 900 to 2 million cps, accommodating media sizes from 0.1 to 2.0 mm, making it suitable for applications ranging from adhesives and silicone sealants to pharmaceutical ointments and cosmetic creams. Its design facilitates a one-step milling process, reducing the need for manual intervention and increasing safety compared to traditional 3-roll mills.

The HCPS Immersion Mill is available in various models to suit different batch sizes, with capacities ranging from small-scale lab setups to industrial scale production. It integrates easily into existing production lines, featuring minimal operator interaction through PLC control for enhanced efficiency and safety. Additionally, the system allows for quick clean-up and batch flexibility, optimizing your production workflow while maintaining rigorous quality standards across chemical, pharmaceutical, biotech, and food industries.

Benefits

  • Enhances milling efficiency with simultaneous compression and scraping, ensuring uniform product quality.
  • Facilitates operational flexibility and reduces changeover time with easy-to-remove sweep blades.
  • Lowers energy consumption through optimized heat transfer, contributing to cost savings.
  • Increases safety and throughput when processing high viscosity materials, outperforming traditional mills.
  • Provides versatility for a range of industries, from chemical to pharmaceutical, supporting diverse application needs.

General


Applications
Thixotropic products,High-density products,Newtonian products,Heat sensitive products,High viscosity products
End products
Cosmetic creams,Heavy duty lubricants,Paints and coatings,Epoxy resins,Printing inks,Silicone sealants,Polymer dispersions,Adhesives,Food pastes,Pharmaceutical ointments
Steps before
Mixing,Dispersion,Preparation
Steps after
Deagglomeration,Heat Transfer,Batch Flexibility,Cleaning,Packing
Input ingredients
high viscosity materials,thixotropic products,Newtonian products,high density products,heat sensitive products,particle solids
Output ingredients
deagglomerated materials,processed high viscosity products
Market info
Hockmeyer Equipment is known for manufacturing high-quality industrial mixing and dispersion equipment. They specialize in ETO solutions for industries like paints, inks, and chemicals, renowned for innovation, reliability, and superior engineering.

Technical Specifications


Viscosity Range
900–2 million cps
Media Size
0.1–2.0 mm
Batch Size Min/Max
0.75/935 gallons
Media Volume
0.25–63 liters
Heat Transfer
Improved
Operator Interface
Minimal
Process Type
One-step process

Operating Characteristics


Working mechanism
Separately driven sweep blade
Integrated steps
Auger feeds,sweep blade scrapes and compresses
Batch vs. continuous operation
Batch
Cleaning method
One-step process,easier cleaning
Automation level
Minimal operator interface
Heat transfer improvement
Dramatic improvement through sweep and helical design

Material Compatibility


Abrasion resistance
Yes
Density/particle size
900–1.5 million cps / 0.1–2.0 mm
Cleanability
Yes,easier cleaning

Product type Characteristics


Product Type
Thixotropic / Newtonian / High Density / Heat Sensitive


Patented technology compliance
Covered by patents
5,497,948
5,820,040
7,175,118
7,559,493
7,828,234
7,883,036
7,914,200
8,182,133
8,376,252
8,733,677
9,597,691 B1

Physical Characteristics


Tank shape and size
Varies by model
Feed method
Auger and sweep blade
Discharge method
Via sweep blade

Custom Options


Sweep Blade Type
Interchangeable single-arm / Helical
Auger Design
Patented auger
Scraper Blade
Interchangeable scraper blades
Flexible Batch Processing
Sweep easily removed for batch flexibility
Heat Transfer Improvement
Improved heat transfer design
