Hygienic vacuum conveyor for pharmaceutical and food industries
Optimize your material handling process with a vacuum conveyor that ensures dust-tight transfer and reduces manual handling, ideal for environments where product integrity and hygiene are paramount.
Automates and Transfers Powders Efficiently

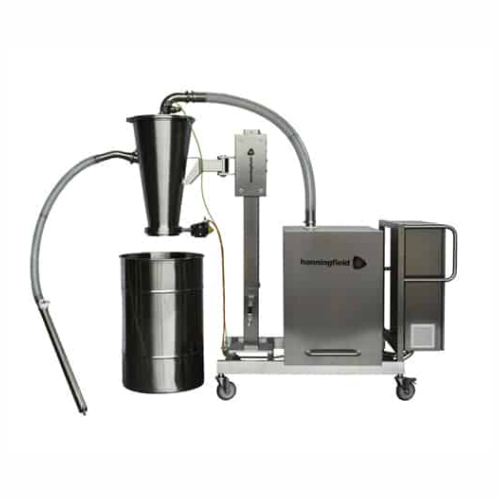

The Uni-Vac V-Series V05 from Hanningfield represents an ultra-hygienic vacuum conveyor solution, specifically engineered for effective powder transfer. Its seam-welded, rolled hopper design eliminates all welds for easy cleaning, making it ideal for stringent applications in the pharmaceutical, food and beverage, nutraceutical, chemical, and cannabis industries. This unit accommodates up to 300 kgs/hr, integrating seamlessly into your processing lines by providing automated, dust-tight transfer across various stages. Unlike compressed-air reliant systems, the Uni-Vac V05 operates with an electric pump, reducing energy consumption and streamlining maintenance. Constructed using 316L and 304 stainless steel for superior durability and corrosion resistance, this conveyor supports versatile applications, including pharmaceutical tablets and vitamin supplement production. Its design aligns with GMP standards, ensuring compliance with regulatory requirements and facilitating easy dismantling for cleaning, thus enhancing operational efficiency while safeguarding product integrity.
Benefits
- Enhances production efficiency by automating dust-tight powder transfers, minimizing manual handling.
- Operates without compressed air, reducing energy costs and simplifying maintenance.
- Facilitates quick and contamination-free cleaning with fast-clamp assembly design.
- Ensures compliance with GMP standards, maintaining high product quality and safety.
- Offers customization options to fit specific process requirements without increasing hopper height.
- Applications
- Chemical powders,Nutraceuticals,Food and beverage ingredients,Cannabis products,Pharmaceutical powders
- End products
- Detergent powders,Pharmaceutical tablets,Protein shakes,Vitamin supplements,Cannabis oil capsules
- Steps before
- Grinding,Milling,Sifting,Mixing
- Steps after
- Packing,Tablet Pressing,Coating,Filling
- Input ingredients
- powder,granules,materials for pharmaceutical industry,materials for food industry,materials for chemical industry
- Output ingredients
- transferred powder,transferred granules,processed materials
- Market info
- Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.
- Max Throughput
- 300 kgs/hr (660 lbs/hr)
- Contact Parts Material
- 316L stainless steel (1.4404)
- Non-Contact Parts Material
- 304 stainless steel (1.4301)
- Hopper Diameter
- 270mm (10.6")
- Hopper Height
- 600mm (23.6")
- Hopper Capacity
- 5 litres
- Standard Hose Diameter
- 1.0 / 1.5 inches
- Automation
- Electric pump for air flow
- Working Mechanism
- Suck-and-dump / Direct loading
- Automation Level
- Automated / Electric pump
- Batch vs. Continuous Operation
- Inline Continuous
- Cleaning Method
- Easy dismantling for cleaning
- Height Optimization
- Low-profile design with sloped hopper sides
- Abrasion resistance
- High
- Corrosive resistance (e.g. acids)
- Moderate
- Cleanability
- Easy to dismantle for cleaning
- Biological compatibility
- Compliant with GMP standards
- Density/particle size
- Suitable for 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact
- Hopper Diameter
- 270 mm (10.6")
- Hopper Height
- 600 mm (23.6")
- Hopper Capacity
- 5 litres
- Standard Hose Diameter
- 1.0 / 1.5 inches
- Hopper Shape
- Rolled and seam welded
- Discharge method
- Gravity feed or vacuum transfer
- Hopper customization
- Custom sizes and configurations
- Material of Construction
- 316L stainless steel
- 304 stainless steel
- Mounting Options
- Inline
- Gravity feed
- Vacuum transfer
- Pump Type
- Electric
