Hygienic pressure dissolver for high heat exchange

Efficiently dissolve and cook a wide range of confectionery masses with optimal heat transfer, ensuring consistent product quality and minimizing dead zones for residue buildup in your continuous production line.

Processes and Cooks Confectionery Masses Efficiently

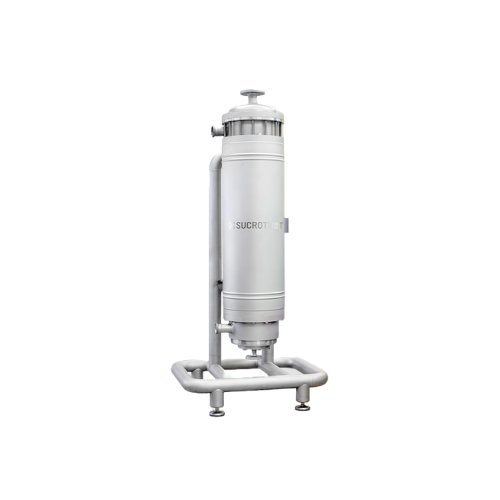

The SUCROTWIST® from CHOCOTECH GmbH is an advanced hygienic spiral cooker designed specifically for the high-demand environment of confectionery production. This unique pressure dissolver excels with its compact design and superior heat exchange properties. By channeling the product stream through spiral piping with vertical steam heating, it generates high turbulence, ensuring efficient mixing and cooking of sugar-based and sugar-free masses. Ideal for producing diverse confectionery items—from caramel squares and jelly beans to fondant icing and peanut brittle—this robust machine offers a processing capacity ranging from 50 to 6,000 kg/h, depending on the recipe. Automated via PLC control systems, it seamlessly integrates into continuous production lines, and its full Clean-In-Place (CIP) capability ensures minimal downtime for maintenance, eliminating any residue buildup. Available in corrosion-resistant materials, the SUCROTWIST® is tailored for the food and confectionery industries, providing reliable performance with options for customization to meet specific operational requirements.

Benefits

  • Enhances production speed and efficiency with high turbulence and optimal heat transfer.
  • Minimizes maintenance time with full Clean-In-Place (CIP) capabilities, ensuring quick cleaning cycles without dismantling.
  • Supports diverse confectionery outputs by handling various sugar and non-sugar masses.
  • Reduces energy usage with efficient heat exchange, lowering operational costs.
  • Ensures product consistency and quality with precise temperature control and consistent mixing.

General


Applications
Candy,Jelly,Brittle,Halva,Fondant,Sweets,Hard candy,Chewy candy,Chocolate,Caramel
End products
Hard mints,Caramel squares,Jelly beans,Sugar candies,Fondant icing,Chocolate bars,Sesame halva,Chewy taffy,Peanut brittle
Steps before
Weighing,Vacuuming,Caramelization
Steps after
Cooling,Forming,Tempering,Vacuum packet
Input ingredients
sugar,sugar-free masses
Output ingredients
cooked sugar mass,pressure dissolved jelly mass
Market info
CHOCOTECH is known for providing innovative solutions in the confectionery industry, specializing in machinery for processing and manufacturing chocolate, candies, and other sweets, with a reputation for precision engineering and tailored, high-quality equipment solutions.

Technical Specifications


Capacity
50–6000 kg/h
Heat Exchange
High efficiency
Flow type
High turbulent flow
CIP capability
Fully CIP-able

Operating Characteristics


Working Mechanism
Spiral flow in steam heated piping for turbulent heat transfer
Integrated Steps
Dissolving and cooking in one unit
CIP Principles
Full CIP-able with no dead areas for build-up
Batch vs Continuous Operation
Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Spiral heat exchange piping
Vertical configuration
Cleaning method
Full CIP-able
Capacity
50–6,000 kg/h
Turbulent flow design
High turbulence
Pressure cooker capability
Yes

Custom Options


Control panel type
HMI touch screen
Integration possibilities
SCADA/PLC integration
Compact design
Universal hygienic pressure dissolver/cooker
Footprint
Compact
