Horizontal screw loader for food processing

Optimize your production flow with a smooth-loading solution designed to efficiently handle and transport both solid and slurry food products with high capacity and continuous operation.

Transports and Stores Bulk Food Products

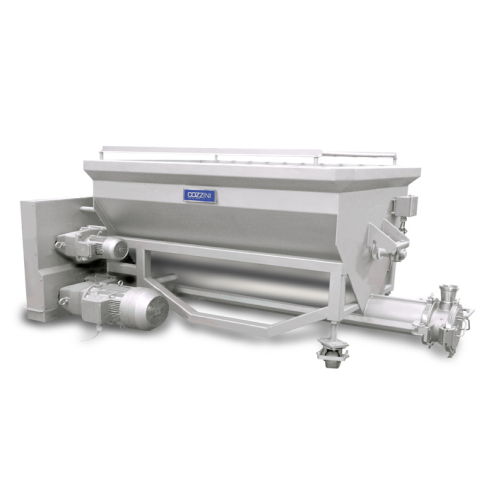

The Cozzini Horizontal Screw Loader is expertly engineered to enhance the operational efficiency of food and meat processing lines. It employs a heavy-duty feedscrew combined with a vane pump to reliably transport solids and slurries to subsequent processing stations, offering capacities between 500 lbs. (230 kg) and 10,000 lbs. (4500 kg). This system is especially beneficial for products ranging from ground beef and sausage mixes to potato chips and chocolate bars. Equipped with unique, quick-release watertight shaft seals, it ensures full washdown sanitation, adhering to USDA and CE standards. An optional agitator prevents product bridging, while integration into continuous operations supports high-capacity needs. Constructed from stainless steel, the loader offers excellent corrosion resistance.

Benefits

  • Enhances efficiency with continuous, high-capacity operation.
  • Maintains sanitation standards with easy-to-clean, watertight design.
  • Prevents product clumping and bridging, ensuring smooth flow.
  • Supports diverse product handling, from solid to slurry materials.
  • Offers excellent durability with corrosion-resistant stainless steel construction.

General


Applications
Protein processing,Sauces,Snacks,Pet food,Meat processing,Cereals,Food processing,Sweets
End products
Chicken nuggets,Ketchup,Cornflakes,Wet pet food,Hard candies,Muesli base flakes,Ground beef,Dry pet food kibble,Sausage mix,Potato chips,Chocolate bars,Mayonnaise,Protein bars
Steps before
Dumping,Mixing,Conveying
Steps after
Piping,Delivery to next processing station
Input ingredients
products from dumpers,mixers,conveyors,food products
Output ingredients
processed food products,product transportation,product delivery to processing station
Market info
Cozzini (Middleby) is known for manufacturing industrial food processing equipment, specializing in grinding, mixing, and emulsifying machinery, with a strong reputation for innovation, quality, and customer service in engineered-to-order solutions for the food processing industry.

Technical Specifications


Feedscrew Diameter
9" (230 mm)
Capacity
500 lbs. (230 kg) to 10,000 lbs. (4500 kg)
Shaft Seal Type
Quick-release,watertight
Agitator
Optional
Compliance
USDA accepted and CE approved
Design Principles
AMI Sanitary Equipment Design

Operating Characteristics


Working mechanism
Feedscrew with vane pump
Cleanability
Full washdown sanitation
Automation level
Manual / Semi-automated
Batch vs. continuous operation
Continuous
Capacity range
500 lbs (230 kg) to 10,000 lbs (4500 kg)
Agitation
Optional agitator to prevent bridging

Material Compatibility


Corrosive resistance (e.g. acids)
Yes

Product type Characteristics


Product bridging prevention
Optional agitator

Physical Characteristics


Discharge method
Feedscrew,vane pump
Customization options
Optional agitator

Custom Options


Shaft seal type
Quick-release,watertight
Auger diameter
9" (230 mm)
Agitator option
Available to prevent bridging
Unit capacity
500 lbs. (230 kg) to 10,000 lbs. (4500 kg)
