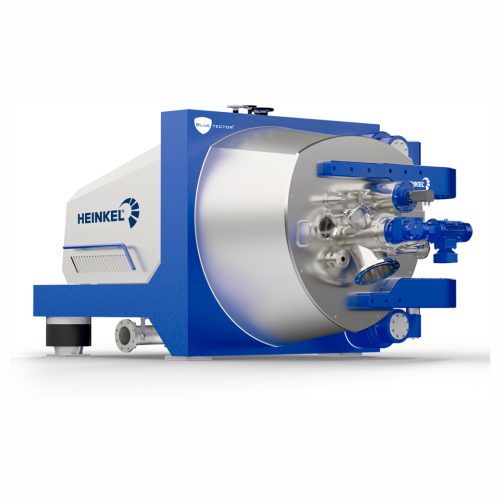

Horizontal peeler centrifuge for chemical applications
Achieve high-throughput product separation and purification with precise moisture control through efficient centrifuging and spin-drying—ideal for ensuring product purity and adaptability to varying product characteristics in a continuous production line.
Processes and Separates Large-Volume Chemical Materials
The Horizontal Peeler Centrifuge Chemical Series from HEINKEL Process Technology is designed for efficient separation and processing of chemical and pharmaceutical products. This centrifuge features a robust design ideal for continuous operation, using high g-forces to achieve low residual moisture in materials such as APIs, synthetic pigments, and specialty chemicals. Capable of handling large throughputs with short cycle times, it is perfect for processing solid, slurry, and cake materials. The innovative BLUETECTOR® H 1250 C model replaces traditional hydraulics with an electro drive system, enhancing energy efficiency and flexibility while complying with ATEX-Zone 1 standards for explosion protection. These centrifuges cater to various industries, including food products and metal recycling, with a focus on purity and operational efficiency. Integration into existing production lines is seamless, supported by PLC-controlled automation and intelligent energy management, reducing operational costs. Available in materials ensuring corrosion resistance, they meet stringent standards for safe and effective operation in demanding industrial environments.
Benefits
- Maximizes productivity with short cycle times and efficient separation.
- Ensures high product purity through effective washing processes.
- Reduces operational costs with intelligent energy management.
- Offers flexibility for various materials and processes with electrical drive systems.
- Provides compliance with safety standards for hazardous environments.
- Applications
- Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
- End products
- Chocolate granules,Recycled metal particulates,Metal powders,Specialty chemicals,Active pharmaceutical ingredients (apis),Lactose powders,Polymer pigments,Synthetic pigments
- Steps before
- Crystallization,Precipitation,Filtration
- Steps after
- Drying,Screening,Packing
- Input ingredients
- medium to large product quantities,products to be washed,products for continuous operation
- Output ingredients
- separated products,spin-dried products,products with low residual moisture,high product purity outputs
- Market info
- Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.
- Basket diameter
- 630 mm - 1600 mm
- Basket depth
- 400 mm - 1000 mm
- Filter area
- 0.79 m² - 5.03 m²
- Nominal volume
- 96 L - 860 L
- Max. Filling
- 62 kg - 1075 kg
- Max. Speed
- 950 - 2400 1/min
- Centrifugal force
- 807 x g - 2028 x g
- Length
- 2630 mm - 3940 mm
- Width
- 1370 mm - 2320 mm
- Height
- 1830 mm - 2780 mm
- Weight
- 4100 kg - 18500 kg
- Energy efficiency
- Highest
- Cycle time
- Shortest possible
- Drive concept
- Innovative electro drive
- Working mechanism
- Continuous operation
- Cycle time
- Shortest possible cycle times
- Energy efficiency
- Intelligent energy management
- Automation level
- Solely electrically driven discharge
- Noise emission
- Reduced noise
- Adaptation capability
- Optimal adaptation to changing products and characteristics
- Process flexibility
- Maximum flexibility via parameter variation
- Ex-area compliance
- ATEX-Zone 1
- Maintenance and serviceability
- Excellent serviceability
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product purity
- High
- ATEX certification
- Zone 1
- Discharge method
- Solely electrically driven discharge
- Machine length
- 2630 mm - 3940 mm
- Machine width
- 1370 mm - 2320 mm
- Machine height
- 1830 mm - 2780 mm
- Basket diameter
- 630 mm - 1600 mm
- Basket depth
- 400 mm - 1000 mm
- Filter area
- 0.79 m² - 5.03 m²
- Nominal volume
- 49 L - 860 L
- Max filling weight
- 100 kg - 1075 kg
- Slidable machine housing
- Yes
- Control panel type
- Touchscreen / PLC
- Integration possibilities
- SCADA / DCS
- Discharge method
- Electric / Hydraulic
- Slidable machine housing
- Yes
