High-speed wet glue labelling system

Ensure precise labelling on diverse bottle types with our versatile rotary labelling system, designed for high-speed production lines. Ideal for operations demanding seamless format changes and compatibility with both wet glue and self-adhesive units.

Applies Rotary Wet Glue Labels

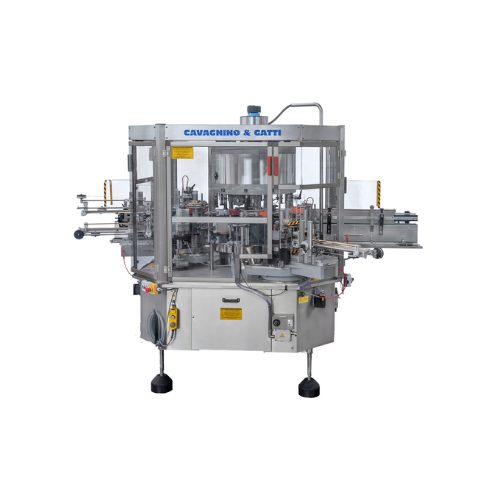

The CG 84 Series from Cavagnino e Gatti is a rotary wet glue labelling machine crafted for high-speed, high-volume production environments. Known for its reliability and adaptability, the machine efficiently handles applications across diverse industries, including beverages, food containers, chemicals, and cosmetics. Utilizing a rotary system, it ensures continuous operation and precise label application, with production capacities ranging from 5,000 to 40,000 units per hour. The machine’s modular design accommodates various label sizes and offers fast format changes, enhancing operational flexibility. Automated features include a bottle platforms handling system and multi-format inlet/outlet star wheels, allowing seamless integration into existing lines. Optional self-adhesive labelling units maximize versatility, while special setups like optical orientation systems improve label alignment. The CG 84 Series is an ideal solution for manufacturers seeking efficient, customizable labelling operations in demanding settings.

Benefits

  • Increases production efficiency with high-speed labelling capabilities up to 40,000 units per hour.
  • Enhances product presentation with precise, continuous label application.
  • Reduces setup time through quick format changes, ensuring minimal production disruption.
  • Offers versatile integration with both wet glue and self-adhesive labelling options.
  • Supports diverse packaging needs across multiple industries, accommodating various container types and label sizes.

General


Applications
Vinegar,Water,Wine,Mignon,Oil,Spirits,Chemical products,Cosmetics,Food containers,Juices,Soft drinks,Beer
End products
Bottled mineral water,Carbonated soft drink cans,Olive oil bottles,Balsamic vinegar bottles,Perfume bottles,Orange juice bottles,Whiskey bottles,Craft beer bottles,Jam jars,Shampoo bottles,Red wine bottles
Steps before
Bottle selection,Container preparation,Cleaning
Steps after
Packing,Inspection,Distribution
Input ingredients
bottles,containers,cylindrical bottles,glass bottles
Output ingredients
wet glue labels,self-adhesive labels,labeled bottles,labeled containers
Market info
Cavagnino & Gatti is renowned for designing and manufacturing high-performance labeling and packaging machines, specializing in providing tailored solutions for diverse industries with a reputation for innovation, quality, and reliability.

Technical Specifications


Speed
5,000 to 30,000 pieces/h
Label Width
110 mm – 180 mm
Volume Production
5,000 b/h – 40,000 b/h
Automation
Central touch-screen panel
Compatibility
Self-adhesive labelling units
Sector Use
Wine,Spirits,Beer,Oil,Vinegar,Soft Drinks,Water,Juices,Food,Chemical,Cosmetics
Format Change Time
Fast
Orientation System
Optical or Mechanical
Inlet and Outlet Star Wheels
60 mm to 110 mm diameter bottles
Label Application
Wet Glue

Operating Characteristics


Changeover time
Fast format change
Production capacity
5,000 to 40,000 pieces/h
Label type
Wet glue,self-adhesive
Sectors of use
Wine,Spirits,Beer,Oil,Vinegar,Soft Drinks,Water,Juices,Food,Chemical,Cosmetics
Automation level
Touch-screen panel control
Modularity
Wide range of accessories and set-ups

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bottle diameter
60–110 mm

Physical Characteristics


Machine footprint
Compact
Label width capacity
110 mm - 180 mm
Production volume capacity
5,000 - 40,000 b/h
Discharge method
Rotary technology

Custom Options


Label width
110 mm – 180 mm
Production speeds
5,000 b/h – 40,000 b/h
Combined label types
Wet glue and self-adhesive
Format change
Fast
External control
Central touch-screen panel
Orientation systems
Optical or mechanical
Bottle diameter
60 mm – 110 mm
