Hig Speed Tube Cartoner

Achieve seamless integration into your high-speed packaging line with a cartoning solution that ensures precise tube placement and carton closure, enhancing end-product integrity and operational efficiency.

Hig Speed Tube Cartoner
Great for making:
Hig Speed Tube Cartoner Cosmetic creams Hig Speed Tube Cartoner Toothpaste Hig Speed Tube Cartoner haircare products Hig Speed Tube Cartoner Sunscreen Hig Speed Tube Cartoner Bottles

Cartons and Inserts Tubes Continuously

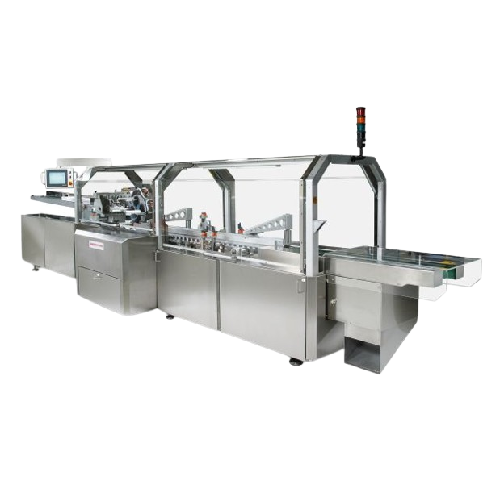

The NP 5002 from Norden is a high-speed cartoning machine expertly designed for industries ranging from home care to chemicals. Operating at up to 500 units per minute, it ensures seamless integration with tube filling lines, particularly utilizing a pick-and-place mechanism for controlled transfer. Its continuous operation efficiently handles diverse liquid products, from toothpaste and shaved creams to cooking oils. The machine supports end-load and side-load cartoning, making it versatile for different packaging needs. Featuring servo motors and digital counters for precise operation, it employs a three-inch pitch product chain ensuring consistent packaging. Constructed to comply with stringent food and safety regulations, the NP 5002 is not only robust but also reliable in maintaining product integrity. It offers optional leaflet insertion and can cater to a variety of carton sizes, adaptable to your packaging line requirements. With a focus on reducing downtime, its quick product changeover and horizontal packaging orientation streamline operations to enhance productivity.

Benefits

  • Enhances production efficiency with continuous operation at up to 500 units per minute.
  • Maintains product quality and reduces errors through precise pick-and-place transfer.
  • Increases versatility with compatibility for various liquid product packaging needs.
  • Minimizes downtime with quick changeover capability for seamless operation.
  • Ensures compliance with industry-specific food and safety regulations.

General


Applications
Personal care,Home care,Food,Chemicals
End products
Liquid soap bottles,Sunscreen tubes,Deodorant canisters,Cooking oil bottles,Toothpaste,Margarine tubs,Chemical cleaner bottles,Shaving cream tubes,Shampoo bottles,Moisturizer lotion tubes
Steps before
Tube Filling,Product Preparation,Quality Inspection
Steps after
Packing,Distribution,Quality Assurance
Input ingredients
tubes,leaflets
Output ingredients
cartoned tubes,carton boxes
Market info
Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.

Technical Specifications


Speed
500 units per minute
Footprint
Depth
Weight
6100 kg
Automation
Pick,Place unit with servo motors
Operating Mode
Continuous
Product Changeover
Yes
Packaging Range
Pack Height
Packaging Closing
Tuck
Packaging Material
Paperboard
Packaging Orientation
Horizontal
Packaging Type
Prefolded Carton
Insertion Mode
End Load/Side Load
Product Chain
Three-inch pitch product chain
Regulatory Requirements
Food Regulations CFR Title 21,1935/2004/EC,2023/2006/EC
Safety Regulations
EN ISO 13732-1,2009/105/EC,94/9/EC,97/23/EC,EN ISO 10218-2,EN ISO 11161,EN ISO 12100,EN ISO 13849-1,EN ISO 13849-2,EN ISO 13850,EN ISO 13855,EN ISO 13857,EN ISO 14119,EN ISO 14122 -1 -2 -3 -4,EN ISO 4414,EN ISO 7010,EN 349,EN 415-4,EN 547-1 -2 -3,EN 614-1 -2,EN 619,EN 953,IEC 60204-1,IEC 60529,IEC 60825-1,IEC/TS 62046,ISO/TR 14121-2,2014/30/EU,2006/42/EC,2014/35/EU
Linked Machines
NM 5002 Tube Filling Machine for plastic,laminate,and aluminum tubes (500 ppm)

Operating Characteristics


Automation level
Continuous
Batch vs. continuous operation
Inline Continuous

Product type Characteristics


Container type
Tube


Food Regulations
CFR Title 21,1935/2004/EC,2023/2006/E
Safety Regulations
EN ISO 13732-1,2009/105/EC,94/9/EC,97/23/EC,EN ISO 10218-2,EN ISO 11161,EN ISO 12100,EN ISO 13849-1,EN ISO 13849-2,EN ISO 13850,EN ISO 13855,EN ISO 13857,EN ISO 14119,EN ISO 14122 -1 -2 -3 -4,EN ISO 4414,EN ISO 7010,EN 349,EN 415-4,EN 547-1 -2 -3,EN 614-1 -2,EN 619,EN 953,IEC 60204-1,IEC 60529,IEC 60825-1,IEC/TS 62046,ISO/TR 14121-2,2014/30/UE,2006/42/EC,2014/35/UE

Physical Characteristics


Machine depth
1840 mm
Machine height
1750 mm
Machine length
8300 mm
Machine weight
6100 kg
Discharge method
End Load/Side Load

Custom Options


Control panel type
Digital counters
Integration possibilities
Linked Machines (e.g.,NM 5002,X85)
Compact footprint
Yes,due to dimensions
Equipment Groups
Conveyor belts
Product Groups
Chemicals Cosmetics Food
Processes
Cartoning Conveying Filling Packing
