High-speed tray sealer for food packaging

Streamline your packaging process with high-speed tray sealing, reducing labor costs while enhancing production efficiency in sealing and modified atmosphere packaging for various food and consumer products.

Seals Trays with Modified Atmosphere Packaging

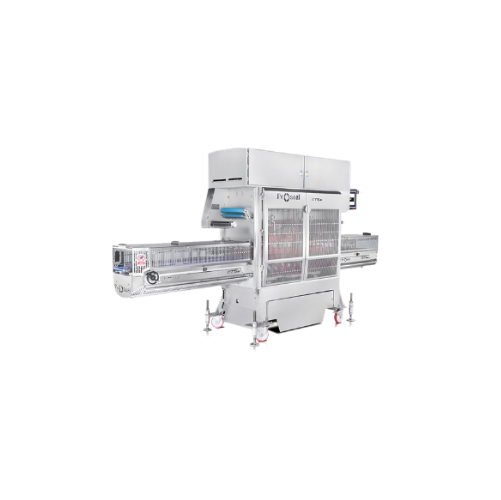

The Proseal GT5s Tray Sealer from Proseal offers an automatic, high-speed in-line sealing solution designed to deliver unmatched efficiency in tray sealing applications. It features a user-friendly, rapid-changeover tool system that processes up to 160 atmospheric packs per minute, making it ideal for high-volume operations. This equipment is particularly well-suited for industries such as food, pharmaceutical, and personal care, sealing end products ranging from pureed baby food and croissants to chicken breast fillets and blister pack tablets.

The GT5s system integrates seamlessly with existing production lines, accepting randomly spaced trays and offering optional ‘free-flow’ gas flush Modified Atmosphere Packaging (MAP) for extended shelf life. It conserves energy significantly with the EsealĀ® system, which increases sealing force while reducing energy consumption by 92%. For added efficiency, the ProMotion system enhances production speeds through its high-accuracy continuous motion tray infeed.

Made from food-industry-approved hygienic materials, the GT5s is designed with wash-down protection for easy maintenance. It also offers flexibility with optional integrations for peripheral equipment like de-nesters and labelers, ensuring comprehensive process automation. The system supports full customization, including remote data support with eWON connectivity and film monitoring through the i-film system, enhancing operational efficiency. Additionally, service options, lease, and rental agreements are available to suit various business needs.

Benefits

  • Increases production speed with up to 160 packs per minute capacity.
  • Cuts operational costs with a 92% reduction in energy consumption.
  • Offers flexible line integration with customizable configurations and automation options.
  • Extends product shelf life using optional Modified Atmosphere Packaging (MAP).
  • Ensures easy maintenance and hygiene with quick-release, wash-down capable components.

General


Applications
Sauces,Sandwiches,Bakery,Oils,Dairy,Seafood,Soups,Dairy alternatives,Seasonings,Personal care,Ready meals,Pet food,Fruits,Nuts,Baby food,Confectionery,Meat,Plant-based protein,Dressings,Poultry,Pharmaceutical
End products
Olive oil bottles,Ranch dressing cups,Pre-packaged ham sandwiches,Chicken breast fillets,Chocolate truffles,Apple slices,Face cream jars,Cheese slices,Salmon fillets,Tomato sauce jars,Croissants,Tofu blocks,Blister pack tablets,Roasted almonds,Barbecue seasoning packets,Almond milk cartons,Kibble packaging,Chicken noodle soup,Lasagna trays,Beef steaks,Pureed baby food
Steps before
Portioning,Weighing,Filling,Multi-head Weighing,De-nesting
Steps after
Packing,Labeling,Coding,Printing
Input ingredients
trays,food products,soft fruit,fresh produce,fish and seafood,pork,red meat,poultry,ready meals,desserts
Output ingredients
sealed trays,atmospheric packs,modified atmosphere packaging (MAP) packs,hermetic shrink packs
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Speed
Up to 160 packs/min
Capacity
Extra-large capacity
Automation
Automatic inline system
Tool Changeover Time
Two-minute tool changeover
Energy Efficiency
92% reduction in energy consumption
Seal Force
Massive increase with EsealĀ® system
Tray Acceptance
Can accept randomly spaced trays from any conveyor
Gas Flush
Optional 'free-flow' gas flush MAP
Construction
Hygienic construction with wash-down protection
Portability
Fully portable and castor mounted
Infeed System
ProMotion high accuracy continuous motion tray infeed system
Conveyor System
QR Conveyor system with modular quick release belts
Film Reel Monitoring
I-film intelligent film reel monitoring system
Login System
ProTect contactless machine login
Seal Methods
Atmospheric,Gas Flush,Hermetic Shrink
Oxygen Gas Flush
High Oxygen (O2) gas flush
Cut Method
Close Cut,Inboard Cut (IC)
Energy Consuming Element
Hot Rod seal tool-heating element
Optional Control Integration
Integration of peripheral equipment

Operating Characteristics


Automation level
Fully automatic
Changeover time
2 minutes
CIP/SIP
Wash-down protection
Cleaning method
Simple design for easy cleaning
Energy efficiency
92% reduction in energy consumption
Batch vs. continuous operation
Inline continuous
Food category suitability
Fish,Seafood,Pork,Red Meat,Poultry,Soft Fruit,Fresh Produce,Ready Meals,Desserts
Production speed
Up to 160 packs per minute
Tool changeover time
Two-minute
Sealing styles
Atmospheric,Gas Flush,Hermetic Shrink

Material Compatibility


Cleanability
Food industry approved hygienic construction
Corrosive resistance (e.g. acids)
Hygienic construction with wash-down protection
Biological compatibility
Suitable for all relevant food categories
Durability
Robust design for high-speed operation

Product type Characteristics


Tray size and shape
Various
Material type
Plastic,Board
Sealing type
Atmospheric,Gas Flush,Hermetic Shrink
Product types compatible
Fish,Seafood,Pork,Red Meat,Poultry,Soft Fruit,Fresh Produce,Ready Meals,Desserts
Packaging method
Modified Atmosphere Packaging (MAP)

Physical Characteristics


Discharge method
Integrated with other line equipment
Machine Footprint
Extra-large capacity,high-speed,in-line
Portability
Fully portable and castor mounted
Tool Changeover Time
Two-minute
Conveyor System
QR modular conveyor with quick release belts

Custom Options


Tool Changeover Time
Two-minute
Portability
Fully portable and castor mounted
Conveyor System
QR modular conveyor system
Gas Flush Option
Free-flow gas flush MAP
Control Integration
Peripheral equipment integration
Machine Connection System
eWON
Film Monitoring System
I-film
Contactless Login System
ProTect
Conveyor Usage
Straight through conveyor option
Seal Options
All around seal only
Cut Options
Close Cut,Inboard Cut
Film Coding and Printing
Available
Optional Control Integration
De-nesters,fillers,weighers,coders,labelers
Seal Element
Hot Rod - tool-heating element
Operation Modes
Sale,Lease Purchase,Rental
