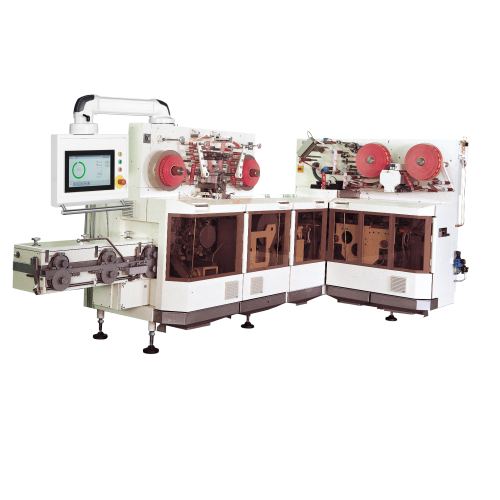

High speed packaging system for fold wrap and stick packs

Streamline your confectionery production with a versatile system that efficiently forms, cuts, and wraps diverse products in fold wraps and stick packs, ensuring high-speed output and consistent packaging quality.

Forms, Cuts, and Wraps Confectionery Products

The WHF2+F3 from Theegarten-Pactec is a high-speed packaging and wrapping system tailored for confectionery manufacturers. Specializing in forming, cutting, and wrapping processes, it efficiently handles products like chocolate bars and chewy sweets. Operating at up to 1,800 wrapped individual items per minute and packaging 300 stick packs per minute, this combination machine offers flexible wrapping styles, including bottom and side folds. Integrated within production lines, it leverages continuous operations to maximize throughput. Designed for seamless deployment, it supports compact factory environments with its space-efficient footprint. This equipment not only ensures high packaging precision but also promotes material efficiency, making it indispensable for food and confectionery industries aiming for high-volume production.

Benefits

  • Maximizes production speed by handling up to 1,800 products per minute.
  • Minimizes material usage with precise cutting and forming processes.
  • Enhances line flexibility with multiple wrapping styles for primary and secondary packaging.
  • Reduces factory floor space requirements with compact, integrated design.
  • Increases operational efficiency with seamless integration into continuous production lines.

General


Applications
Chewy sweets,Soft caramels,Bouillon cubes,Effervescent tablets,Hard candies,Eclairs,Fudge,Chocolate products,Toffee,Cereals,Jelly products,Bubble gum products,Dishwasher tablets,Krówki,Chewing gum
End products
Chocolate éclairs,Gummy bears,Chocolate-covered toffee,Granola bars,Beef stock cubes,Vitamin c tablets,Strawberry bubble gum,Caramel chews,Mint gum,Lemon dishwasher tablets,Salted caramels,Peppermint hard candies,Milk chocolate bars,Vanilla fudge,Polish krówki candy
Steps before
Feeding,Product Preparation,Mixing,Product Cutting
Steps after
Secondary Packaging,Storage,Distribution,Shipping
Input ingredients
soft caramels,toffees,chewy sweets,chewing gum,bubble gum products,hard candies,preformed products
Output ingredients
wrapped individual products,fold wrap packaging,stick packs,bottom fold,side fold,flat stick pack,on-edge stick pack
Market info
Theegarten-Pactec is known for its expertise in manufacturing highly specialized packaging machines for small-sized confectionery products, offering innovative, flexible, and efficient solutions tailored to various customer needs in the industry.

Technical Specifications


Speed
1,800 wrapped products/min
Speed
300 stick packs/min
Capacity
1,800 products/min,300 stick packs/min
Automation
Combination of primary and secondary packaging
Wrapping Styles
Bottom Fold,Side Fold,Folded Stick Packs
Packaging Type
Flat or stick pack on-edge
Compact Design
Small footprint

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick-change components
Energy efficiency
High-efficiency motors/gearboxes
Cleaning method
Easy-to-clean design
Output capacity
1,800 products/min

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Combination machine type
Primary and secondary packaging
Machine footprint
Small
Primary packaging method
Bottom Fold / Side Fold
Secondary packaging method
Flat Stick Pack / Stick Pack on-edge

Custom Options


Primary packaging styles
Bottom Fold,Side Fold
Secondary packaging styles
Flat Stick Pack,Stick Pack on-edge
Packaging speed
1,800 individual products per minute,300 stick packs per minute
