High-speed multi-head weigher for confectionery products

Achieve precise measurements and minimize waste in high-speed food production with this compact multi-head weigher, designed for gentle product handling and versatile operation across weighing, counting, and packing processes.

Precisely Weighs and Counts Small Solid Products

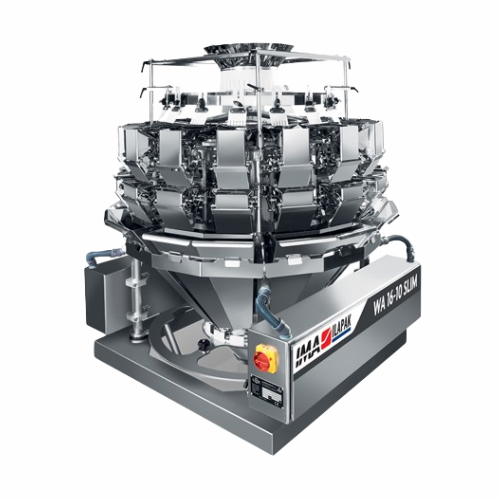

The WA 16-10 SLIM Multihead Weigher from IMA Group is engineered to enhance efficiency in the confectionery, bakery, and snack industries. This compact, high-speed weigher is tailored for precise weighing and counting of small solid and granule products, offering a range of applications from hard candies to potato chips. Utilizing vibratory or rotary distribution with loadcell-controlled infeed, it maximizes accuracy with C3 accuracy class loadcells. The machine supports up to 160 weighments per minute, facilitated by 16 weigh heads and adaptable bucket volumes for diverse production needs. Integration into existing lines is seamless with its industrial PC and remote control capabilities via a 12” color touch screen and optional augmented reality features. Built with stainless steel AISI 304, it withstands rigorous sanitary environments and offers easy, wash-down cleaning with quick-release components, ensuring swift maintenance and minimizing downtime.

Benefits

  • Maximizes precision with C3 accuracy loadcells, reducing product waste.
  • Enhances product integrity with low product drop and gentle handling.
  • Streamlines operations with user-friendly HMI and remote control access.
  • Facilitates swift maintenance due to hygienic design and quick-release components.
  • Adapts to diverse product types with configurable hopper volumes and coatings.

General


Applications
Food,Snacks,Confectionery,Bakery,Dairy
End products
Cheese cubes,Granola bars,Yogurt toppings,Hard candies,Nachos,Soft gummies,Potato chips,Cake mix portions,Croissants,Chocolate chips
Steps before
Ingredient Sorting,Initial Weighing,Product Calibration,Batch Preparation
Steps after
Packaging,Quality Control,Sealing,Labeling
Input ingredients
confectionery,bakery products,snacks
Output ingredients
weighed confectionery,weighed bakery products,weighed snacks
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Max. speed
160 wpm
Weigh heads
16
Bucket volume
1.0 L
Max. discharge volume (single dump)
2.5 L
Discharge weight range (single dump)
10 g – 750 g
Max. piece length
85 mm
Product distribution
Vibratory or rotary distribution cone
Product contact parts
Stainless steel AISI 304
Drive
Springless,high speed stepper motors
Loadcells
C3 accuracy class,OIML approved R76 class
HMI
12” (18” *) colour touch screen with remote control capability
Program memory
Over 1000 recipes
Power supply
230 Vac±5%,1 ph,neutral,GND,50/60 Hz,1.2 kW,6 A (3 A @ 480 V)
Compressed air
180 l/min @ 7 bar
Machine dimensions
1175 x 1175 x 1445 mm (46.25 x 46.25 x 56.75 in)
Machine weight
500 kg

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick release components
Cleaning method
Wash-down execution
Compact design
High-speed applications
Gentle product handling
Low drop mechanism

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product size compatibility
Max piece length 85 mm
Product variability
Snacks,bakery,confectionery


OIML approval
R76 class

Physical Characteristics


Machine footprint
1175 x 1175 x 1445 mm
Bucket volume
1.0 L
Max. discharge volume
2.5 L
Max. piece length
85 mm
Product distribution
Vibratory or rotary distribution cone
Product contact parts
Stainless steel AISI 304
Drive
Springless,high speed stepper motors
HMI
12” color touch screen,18” optional

Custom Options


Product contact parts
Plain execution,embossed or special coatings
Hopper volume
Small,medium,and large
Drive system
Springless,high speed stepper motors
