High-speed cutting mill for versatile material comminution

Efficiently transform diverse materials like plastics, textiles, and cannabis into fine, consistent particles with a high-speed cutting mill designed for precision and ease of cleaning, ensuring optimal performance in demanding environments.

Comminutes and Homogenizes Diverse Materials

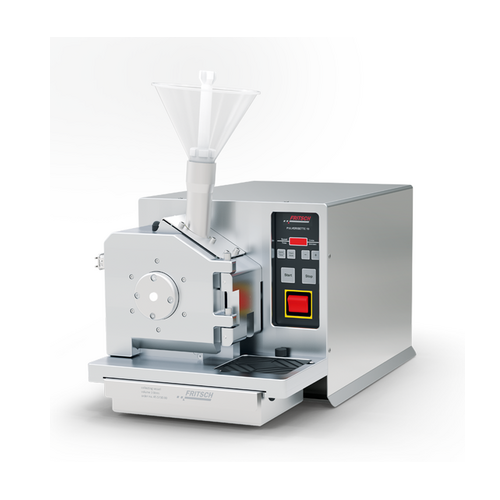

The Universal Cutting Mill PULVERISETTE 19 from FRITSCH is designed for high-precision comminution across a vast range of materials, from plastics and textiles to electronic waste and pharmaceuticals. It features a unique grinding chamber geometry that utilizes a scissor-like cutting principle, ensuring efficient and blockage-free processing. With a variable speed range of 300 to 3000 rpm and a torque of up to 30 Nm, it accommodates a maximum feed size of 70 x 80 mm and offers a throughput of up to 60 liters per hour. The mill is ideal for sectors requiring reliable size reduction, such as biofuel and cement industries, and meets RoHS compliance standards. Constructed with corrosion-resistant stainless steel 316L, it is suitable for food and pharmaceutical applications. Its design facilitates easy cleaning, featuring a fully openable grinding chamber and removable, wear-free labyrinth seals for quick maintenance. Customizable components like rotors, knives, and sieves allow adaptability for specific applications, supported by engineering consultation to tailor setups to unique production needs.

Benefits

  • Enhances operational efficiency with flexible speed adjustments from 300 to 3000 rpm.
  • Minimizes cross-contamination risks with easy-to-clean design and removable components.
  • Supports diverse industry needs with customizable rotor and knife configurations.
  • Improves processing accuracy for analytical applications through precise comminution.
  • Offers robust performance and longevity with maintenance-free operation and corrosion-resistant materials.

General


Applications
Chemistry,Silicone rubber,Secondary fuel,Forestry,Pharmaceutical industry,Phytopharmaceuticals,3d printing,Cannabis,Batteries,Electronic waste,Biofuel,Additives in textile industry,Animal feed,Construction materials,Analytical sector,Rohs,Natural cosmetics,Plastics,Food stuffs,Refuse derived fuels,Cement industry,Leather,Environment,Traditional chinese medicine,Hazardous waste,Agriculture,Textiles,Toys
End products
Demolished electronic circuit boards,Textile dye additives,Chemical-free leather goods,Polyethylene pellets,Straw pellets,Organic skincare,Cement clinker,Lithium-ion battery powder,Silicone rubber sheets,Concrete aggregate,Woodchips,Biodiesel,Compost,Decontaminated hazardous waste,Metal powders for additive manufacturing,Processed rdf pellets,Rohs-compliant electronic components,Plant-based extracts,Herbal medicine components,Pharmaceuticals,Cannabis oil,Recycled polyester fibers,Shredded waste for fuel,Nutraceuticals,Lead-free toys,Pelletized animal nutrients
Steps before
Pre-cooling,Material selection,Sample collection,Sample preparation,Embrittlement with liquid nitrogen,Sample exhaustion with cyclone separators
Steps after
Comminution analysis,Particle size analysis,Chemical analysis,Homogenization,Secondary fuel analysis,Quality control testing
Input ingredients
dry materials,soft materials,medium-hard materials,fibrous materials,plastics,straw,films,bulk materials,pre-cooled materials,materials embrittled with liquid nitrogen,heterogeneous mixtures,secondary fuels,batteries,cannabis plants,electronic waste,textiles,leather,nuts,silicone rubber,timber,refuse-derived fuels
Output ingredients
fine powder,homogeneous samples,finely milled material,comminuted materials,reduced particle size,processed samples for RoHS analysis,samples for chemical analysis,samples for quality control,samples for further analysis
Market info
Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.

Technical Specifications


Rotor speed
300-3000 rpm,variable adjustable
Torque
Up to 30 Nm
Max. feed size
70 x 80 mm
Throughput
Up to 60 l/h
Sieve cassettes
0.2 – 10 mm,further sizes available
Collection vessel
0.25 litres to 60 litres
Motor
5 kW three-phase motor with frequency converter
Airflow
Optimum for fast comminution and anti-clogging
Wear-free seals
Stainless steel labyrinth seals
Comminution with dry ice and liquid nitrogen
Effective for sticky,tough-elastic,or temperature-sensitive materials

Operating Characteristics


Variable speed
300–3000 rpm
Comminution method
Cutting principle of scissors
Batch vs. continuous operation
Continuous
Easy cleaning design
Optimised Clean Design
Sample feed size
Max. 70 x 80 mm
Throughput
Up to 60 l/h
Feed material compatibility
Dry,soft to medium-hard,fibrous materials
Automation level
Manual control panel operations
Comminution with cooling
Dry ice and liquid nitrogen
Cleaning method
Easy open and tool-free

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel version 316L

Product type Characteristics


Adjustable rotor speed
Yes

Physical Characteristics


Rotor speed
Variable 300-3000 rpm
Feed size
Max. 70 x 80 mm
Throughput
Up to 60 l/h
Collection vessel size
0.25 to 60 litres
Footprint
Compact design
Material
Stainless steel 316L

Custom Options


Control panel type
Front panel with digital display
Rotor speed adjustment
Variable 300 – 3000 rpm
Interchangeable sieve cassettes
0.2 – 10 mm
Funnel type
Standard / Protected with sample pusher
Collection vessel size
0.25 litres to 60 litres
Material version
Corrosion-resistant stainless steel 316L
Rotor type
Different rotors for multi-functional use
Rotor and fixed knives
Exchangeable
