High-speed centrifuge for laboratory applications

Maximize efficiency in high-volume centrifugation tasks with this versatile solution, designed to streamline separation, purification, and concentration processes, ensuring precision and reliability for demanding applications in biotechnology and pharmaceutical production.

Centrifuges and Purifies Biological Samples Efficiently

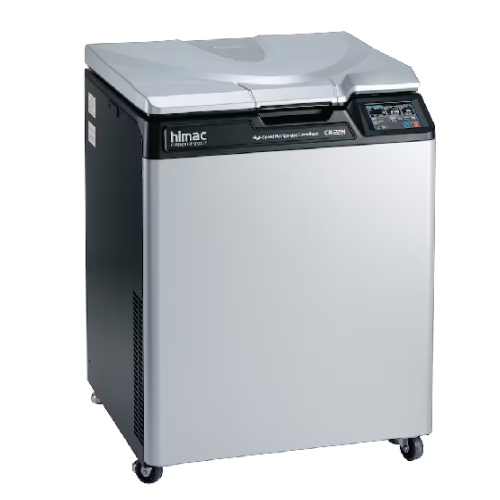

The High-Speed Centrifuge CR22N from Eppendorf is a robust solution for laboratories and biomanufacturers requiring efficient biomass harvesting and sample purification. Featuring a unique rotor design, it simplifies workflows by allowing high-capacity processing of up to 6 liters per run. The system excels in applications ranging from vaccine component separation to nutrient supplement concentration, supporting industries such as biotech, pharmaceuticals, and food and beverage. With its refrigerated, floor-standing model, the CR22N maintains consistent temperatures between -20°C to 40°C, essential for sensitive sample integrity. The induction motor and rotary inverter-driven compressor enhance energy efficiency, while the intuitive touch panel and user management functions ensure seamless operation. Compliance with GMP standards and safety features like self-locking rotor systems and automatic rotor recognition bolster its reliability in controlled environments. Integration into digital lab systems is facilitated by USB and optional LAN connectivity for comprehensive operational logging, making the CR22N an integral part of modern, high-throughput laboratories.

Benefits

  • Maximizes sample throughput with capability to process up to 6 liters in a single run.
  • Enhances workflow efficiency by reducing handling steps and eliminating the need for multiple rotor changes.
  • Maintains sample integrity with precise temperature control from -20°C to 40°C.
  • Reduces operational costs through energy-efficient induction motor and inverter technology.
  • Ensures regulatory compliance and operational reliability with built-in GMP features and safety mechanisms.

General


Applications
Food,Clinical trials,Bioprocessing,Biofuels,Biotechnology,Microbiology,Stem cells,Medicine,Molecular biology,Beverage,Forensic,Biopharmaceuticals,Health,Pharmaceuticals
End products
Microbial cultures,Protein extracts,Fruit juice concentrates,Stem cell lines,Bioethanol,Dna/rna samples,Monoclonal antibodies,Nutrient supplements,Medical-grade proteins,Bioreactor samples,Diagnostic reagents,Cell-based assay products,Fermentation starter cultures,Genetic testing samples,Fermented beverages,Drug precursors,Vaccine components
Steps before
Biomass harvesting,Cell preparation,Sample collection,Reagent addition,Mixing,Sample loading
Steps after
Pellet resuspension,Supernatant removal,Sample purification,Sample storage,Sample analysis,Cleaning and maintenance
Input ingredients
biomass,cells,subcellular organelles,larger viruses,nucleic acids,samples,triangular bottles
Output ingredients
pelleted cells,concentrated samples,purified nucleic acids,decanted supernatant,resuspended pellet
Market info
Eppendorf is known for manufacturing high-quality laboratory equipment, including pipettes, centrifuges, and bioprocessing tools. Renowned for their precision and reliability, Eppendorf's products are widely used in scientific research and clinical laboratories worldwide.

Technical Specifications


Max RCF
58,700 × g
Speed
300–22,000 rpm
Max Capacity
4 × 1,500 mL
Number of Programs
30 programs
Noise Level
64 dB(A)
Interfaces
USB port
Power Supply
230 V,50/60 Hz
Max Power Consumption
3200 W
Dimensions (W×D×H)
700 × 760 × 915 mm
Product Weight
260 kg
Cooling
Refrigerated
Temperature Range
-20 °C to 40 °C
Acceleration/Deceleration Mode
9 modes
Drive Unit
Induction Motor (Inverter)
Safety Devices
Door interlock,overspeed detection,imbalance detection,rotor cover detection,over-temperature detection
Variable Deceleration Slope
Yes
Operating Log Management
LAN port option
Economy Mode
Yes
User Management
Yes
Automatic Rotor ID Detection
Yes
Self-locking Rotor System
Yes
High-Resolution LCD
5.7 inch color LCD

Operating Characteristics


Maximum Speed
22,000 rpm
Maximum Relative Centrifugal Force (RCF)
58,700 x g
Automation Level
User management and documentation function
Batch vs. Continuous Operation
Batch
Temperature Control Range
-20°C to 40°C
Noise Level
64 dB(A)
Rotor Recognition
Automatic rotor ID detection
Safety Features
Door interlock,overspeed detection,imbalance detection
Variable Deceleration Slope
9 modes,moderate deceleration

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Control panel type
Touch sensitive LCD panel
Compact footprint
700 x 760 mm
Dimensions (W × D × H)
700 × 760 × 915 mm
Cooling system
Refrigerated
Device weight
260 kg

Custom Options


Control panel type
Touch sensitive LCD panel
User management
Multi-user management feature
Documentation function
User documentation and log management
Rotor recognition
Automatic rotor ID detection
Deceleration option
Variable Deceleration Slope
Language options
English / Japanese
Program capacity
30 programs with RCF(g) / g x sec function
