High shear granulator for wet granulation of powders

Achieve consistent granule density and size with a high shear granulator designed for efficient wet granulation, ideal for precise formulation demands in laboratory and pilot-scale setups.

Processes Powders into Granules and Coated Tablets

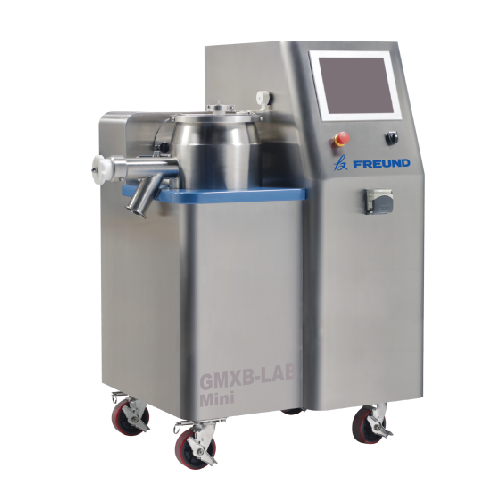

The GMXB-LAB Mini GRANUMEIST® from Freund is a state-of-the-art high shear wet granulator designed for efficient and homogeneous granulation processes in pharmaceutical, chemical, biotech, and food industries. Its bottom-drive system allows for easy cleaning, maintenance, and user safety. The unit utilizes interchangeable product bowls (4L, 6L, and 10L) and user-defined mixer and chopper blade speeds, enhancing process flexibility. It’s ideal for producing paracetamol tablets, vitamin supplements, and more.

Offering integrated peristaltic pumps and optional jacketed and vacuum-drying bowls, it supports both aqueous and solvent processing. This makes it versatile in operations like wet granulation, mixing, drying, and coating. With a proportional mixer blade tip speed and bowl and blade geometries, it scales easily from lab to pilot operations. A color touchscreen gives you validatable process control with multiple endpoint detection parameters like mixer power and granulation time.

The GMXB-LAB Mini GRANUMEIST® ensures compliance with industry standards while offering customization options and engineering support for tailored solutions. The quick-changeover design requires no tools, minimizing downtime and ensuring efficient production cycles.

Benefits

  • Enhances product uniformity with precise granulation control, improving final product quality.
  • Reduces cleaning and maintenance time through its bottom-drive design, increasing operational efficiency.
  • Offers scalability from lab to pilot production, facilitating smooth transition to larger-scale manufacturing.
  • Minimizes setup time with tool-free, quick-changeover design, optimizing production uptime.
  • Ensures process flexibility with multi-bowl capacity and user-defined settings, accommodating diverse production needs.

General


Applications
Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder
End products
Amino acid complexes,Herbal supplements,Vitamin c supplements,Multivitamin tablets,Ibuprofen granules,Magnesium supplements,Omega-3 capsules,Paracetamol tablets,Fine chemical granules like calcium carbonate,Pharmaceutical excipients
Steps before
Powder Batching,Mixing,Formulation Preparation
Steps after
Granule Drying,Coating,Tablet Pressing,Packaging
Input ingredients
powders,aqueous solutions,solvents
Output ingredients
medium density granules,high density granules
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Automation
Color Touchscreen Control System
Batch size
1.2 - 7.0 L
Speed
52 - 720 RPM
Capacity
4L,6L,10L
Processing type
Wet Granulation
Temperature Control
Jacketed Bowl for Product Temperature Control
Integrated Pump
Peristaltic Pump
Drying System
Vacuum Drying (Optional)
Data Collection
USB Data Collection Port
Flexibility
User-Defined Settings for Mixer and Chopper Blade Speeds

Operating Characteristics


Working mechanism
Bottom Drive High Shear Wet Granulation
Quick changeover design
No tools required
Process flexibility
Interchangeable product bowls
Automation level
Smart-Safe™ Containment Optional
Cleaning method
Easy cleaning and maintenance
User-defined settings
For mixer and chopper blade speeds
Integrated steps
Integrated peristaltic pump
Batch vs. continuous operation
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Processing flexibility
Aqueous and solvent-based

Physical Characteristics


Bowl capacity
4 L,6 L,10 L
Working capacity
1.2 - 7.0 L
Control panel type
Color Touchscreen

Custom Options


Interchangeable Product Bowls
4L,6L,10L
User-Defined Settings
Mixer and Chopper Blade Speeds
Integrated Pump
Peristaltic Pump
Processing Capability
Aqueous and Solvent Processing
Product Temperature Control
Jacketed Bowl (Optional)
Drying Capability
Vacuum Drying for One-Pot Processing (Optional)
Containment Option
Smart-Safe™ Containment (Optional)
Changeover Design
Quick Changeover – No Tools Required
Process Control
Color Touchscreen Control System
Data Collection
USB Data Collection Port
Scalability
Engineered Scalability
