High-performance stirrer for open drums

Effortlessly homogenize high-viscosity liquids and slurries right in their storage drums, maximizing efficiency and maintaining product quality throughout the mixing process.

Mixes and Homogenizes Liquid Solutions

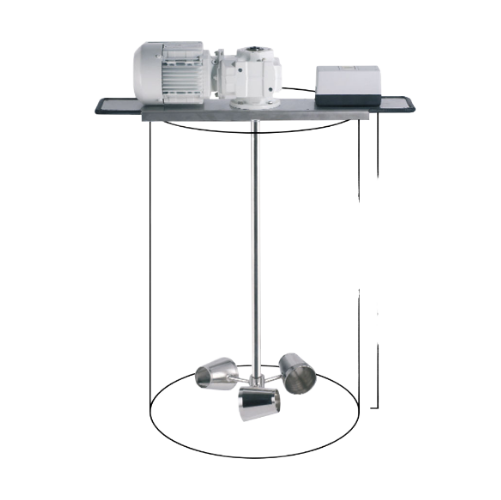

The VISCO JET VJ380 from VISCO JET® is designed for seamless integration into manual and batch operations, providing an effective solution in mixing and homogenizing for industries ranging from chemicals to petrochemicals. This drum mixer utilizes the patented VISCO JET®CLASSIC agitation technology, ensuring optimal blending of products with viscosities up to 5,000 mPas, such as polyethylene glycol, face cream, and lubricating oil. With a drive power of 0.37 kW and stainless steel construction, the VJ380 offers exceptional durability and corrosion resistance, meeting stringent industrial standards. Its efficient design allows for quick setup directly on open drum rims, minimizing quality loss from sedimentation. The mixer can be equipped with a frequency inverter for customizable speed control and is available with ATEX certification for operations in explosive environments. Maintenance is simplified through low-wear components and easy-to-clean surfaces, allowing for sustained performance and extended service life.

Benefits

  • Enhances productivity with quick and simple drum setup.
  • Maintains consistent product quality by preventing sedimentation.
  • Minimizes energy usage through efficient low-speed operation.
  • Facilitates compliance with industrial safety standards, including ATEX.
  • Reduces maintenance with durable, easy-to-clean stainless steel components.

General


Applications
Chemicals,Paints and coatings,Dairy products,Cosmetics,Food and beverages,Sweets,Petrochemicals,Soaps,Mining,Paper manufacturing,Pharmaceuticals
End products
Chocolate syrup,Lubricating oil,Acrylic paint,Ore slurry,Pain relief gel,Pulp slurry,Yogurt,Polyethylene glycol,Face cream,Tomato paste,Liquid soap
Steps before
Material Dispensing,Loading,Pre-mixing
Steps after
Homogenizing,Transferring to Storage,Filling,Sealing
Input ingredients
viscous media,substances up to 5,000 mPas,liquids,pastous products,chemicals,industrial materials
Output ingredients
homogenized media,mix with uniform viscosity,no sedimentation,reduced rest volume
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistung
0,37 kW
Spannungsversorgung
400 V / 50 Hz
Fassungsvermögen
bis zu 200 Litern
Viskosität
bis zu 5.000 mPas
Material der Traverse
Edelstahl 1.4301
Material der Rühreinheit
Edelstahl 1.4571 / 1.4404
Optionale ATEX Ausführung
gemäß RL2014/34/EU
Drehzahlregelung
Frequenzumformer
Reinigungsgrad
Ra<0,8 µm oder Ra<0,4 µm

Operating Characteristics


Working mechanism
Edge-mounted agitator
Handling Complexity
Self-explanatory,intuitive operation
Cleaning method
Easy manual cleaning
Batch vs. continuous operation
Batch
Flexibility
Adaptable to different viscosities up to 5,000 mPas
Automation level
Manual / Potential for frequency converter integration
Energy Efficiency
Low drive power of 0.37 kW
Noise Levels
Low due to low rotational speeds
Sustainability
Short stirring times,low power consumption
Setup
Easy setup with twist lock on drum edge

Material Compatibility


Abrasion resistance
Edelstahl (Stainless Steel)
Corrosive resistance (e.g. acids)
Edelstahl 1.4571 / 1.4404
Cleanability
Electropolished options
Density/particle size
Viscosity up to 5,000 mPas

Product type Characteristics


Container size
Up to 200 L


Machine safety
2006/42/EU
Electromagnetic compatibility
2014/30/EU
Electrical equipment for use within certain voltage limits
2014/35/EU
ATEX certification
Optional according to RL2014/34/EU

Physical Characteristics


Machine Footprint
Flat on barrel rim
Material
Edelstahl 1.4301 / 1.4571 / 1.4404
Drum Size
Up to 200 L
Control Panel Type
Intuitive/Manual
Discharge Method
Direct barrel attachment

Custom Options


Optional Frequency Converter
Integrated frequency converter for speed control
ATEX Compliance
Optional ATEX Zone 1 version
Drive Options
Electric / Pneumatic drive options
Finish Options
Polished components with Ra<0.8 µm
Control Elements
Various switch set options for efficiency
