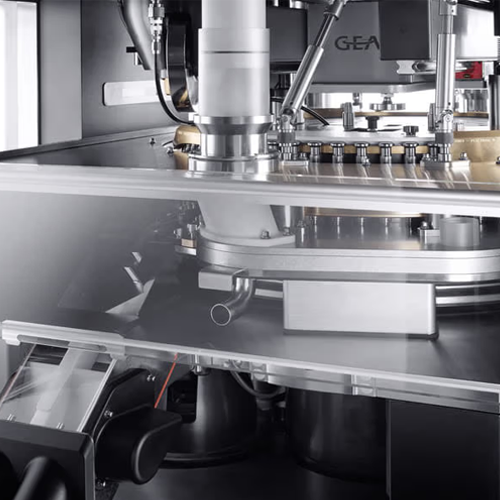

High-output tablet press for pharmaceutical production

Achieve high-speed, continuous production of precise and consistent tablets with this advanced double-sided rotary press, designed for seamless integration into your pharmaceutical production line while minimizing downtime and maximizing output.

Compresses and Produces Single and Bilayer Tablets

The PERFORMA D Tablet Press from GEA is a robust, double-sided rotary press engineered for pharmaceutical manufacturers focused on large-scale production of oral solid dosage forms. Unique for its versatile turret enclosure, it allows rapid, tool-free changeovers and maintains high levels of operator protection. Capable of producing up to 1,140,000 tablets per hour, it is ideal for high-volume applications requiring minimal downtime. The PERFORMA D offers independent weight control for both single and bilayer tablets, ensuring consistent dosage and drug delivery. The machine integrates seamlessly with automated operations, supported by an intuitive MC5 operating system for compliance with 21 CFR PART 11 guidelines. Energy-efficient and easy to maintain, it features a forced powder infeed system to maximize output and consistent tablet quality. With multiple compression modes and programmable dwell times, it excels in producing various pharmaceutical, nutraceutical, and supplement tablets, meeting stringent GMP standards.

Benefits

  • Ensures consistent drug delivery with individual layer weight control for bilayer tablets.
  • Minimizes production interruptions with rapid, tool-free changeovers.
  • Enhances operator safety through enclosed turret design.
  • Increases output efficiency, producing up to 1,140,000 tablets per hour.
  • Complies with 21 CFR PART 11, ensuring regulatory adherence and data integrity.

General


Applications
Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder
End products
Protein supplement tablets,Ibuprofen tablets,Vitamin d tablets,Herbal supplement tablets,Probiotic tablets,Multivitamin tablets,Calcium tablets,Paracetamol tablets
Steps before
Granulation,Blending,Mixing,Weighing
Steps after
Coating,Polishing,Quality Control,Packaging
Input ingredients
powder,formulations
Output ingredients
tablets,single-layer tablets,bilayer tablets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Max. output capacity
1,272,000 tablets/hour
Max. tablet diameter
35 mm
Max. pre-compression force
10 kN (under extended dwell time)
Max. main compression force
100 kN
Punch positions
106
Power installed
32.4 kVA
Compressed Air Requirements
7-8 bar,500Nl/min peak
Dust extraction requirements
150 m³/h at 15 mbar (single layer),230 m³/h at 50 mbar (bi-layer)
Operating temperature range
15-40 °C
Relative humidity
< 60%
Machine dimensions
W = 1,450 mm x D = 1,450 mm x H = 2,245 mm
Machine weight
5,700 kg

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Batch
Changeover time
Rapid
Cleaning method
Tool-free removal
Energy efficiency
Cost-effective and energy efficient
Bi-layer Production
Double-sided pressure system
Intermediate dry cleans
Yes
Operator protection
High levels through turret enclosure
Powder infeed system
Double-paddle forced

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bilayer Production Capability
Yes/No


21 CFR PART 11
Yes

Physical Characteristics


Machine footprint
W = 1,450 mm x D = 1,450 mm (+ max 865 mm extended HMI arm) x H = 2,245 mm
Machine weight
5,700 kg (excluding electrical cabinet)
Electrical cabinet dimensions
W 810 x D 510 x H 2,150 mm
Number of stations
Up to 106
Max output capacity
1,140,000 tablets per hour
Tablet turret size
Large turret
Discharge method
Three- or four-way tablet chute

Custom Options


Control panel type
User friendly,intuitive MC5 operating system
Compact footprint
Small footprint
HMI flexibility
The HMI panel can be moved to either side of the unit
Turret enclosure system
Exchangeable turret enclosed in a barrier system
Data collection system
MULTI-CONTROL 5 (MC5) for automated monitoring and control
