High-containment capsule dosing and filling system

Achieve precise dosing and optimal containment for pharmaceutical productions requiring high safety standards and operational efficiency, ensuring protection for both operators and sensitive substances.

Fills and Weighs Capsules Under Containment

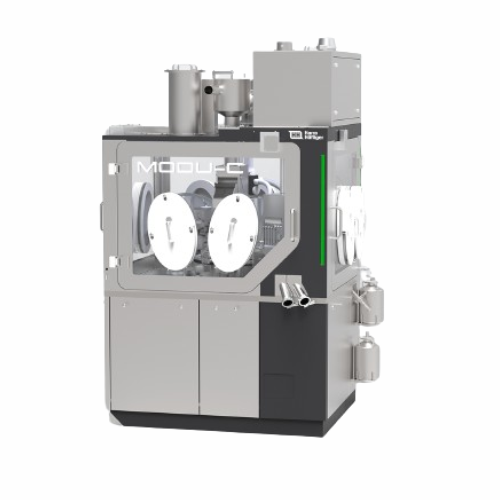

The Modu-C CS Containment from Harro Höfliger is a versatile capsule filling machine designed for pharmaceutical and medical device industries, capable of processing formulations up to OEB 5 classification. This system excels in containment and operator safety, featuring an integrated 100% gross weighing mechanism for precise dosing. The patented trolley system allows swift changeovers among powders, pellets, tablets, mini tablets, and liquids, enhancing workflow efficiency. Common applications include producing hard gelatin, plant-based, and softgel capsules, with an output of up to 43,500 capsules per hour. The equipment ensures compliance with GMP standards and features a wetting-in-place cleaning system for minimal downtime and contamination-free operations.

Benefits

  • Ensures optimal worker safety and product integrity with advanced containment features.
  • Enhances production flexibility through a quick-change trolley system for diverse formulations.
  • Increases accuracy with integrated 100% gross weight control for consistent dosing.
  • Minimizes production downtime with efficient wetting-in-place cleaning protocols.
  • Maximizes operational throughput, producing up to 43,500 capsules per hour while maintaining precision.

General


Applications
Mini tablets,Liquid formulations,Inhalation products,Diagnostic products,Pellets,Pharmaceutical powder,Tablets,Capsules
End products
Viscous liquid capsules,Softgel capsules,Lung inhalation powders,Micro pellets,Sustained-release capsules,Multi-layer tablets,Plant-based capsules,Nasal inhalants,Diagnostic test strips,Suspension-filled capsules,Sugar-coated tablets,Effervescent tablets,Diagnostic reagents,Hard gelatin capsules
Steps before
Product Preparation,Empty Capsule Feeding,Customized Product Feeding,Metal Detection
Steps after
Capsule Weighing and Sorting,Quality Control,Packing
Input ingredients
powders,pellets,tablets,mini tablets,liquids,highly active substances,empty capsules
Output ingredients
capsules with single dose,capsules with fixed dose combinations
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
43,500 capsules/h
Formats
000 to 5
Filling units
Tamping station,drum filler,pellets,dosator,tablet,mini tablet,liquid
Capsule filler type
Automatic / Semi-auto / Dosator / Vacuum
100% Weight control
Gross weight control
Cleaning method
Wetting-in-place

Operating Characteristics


Containment level
Up to OEB 5
Automation level
PLC
Cleaning method
WIP (wetting-in-place)
Changeover time
Fast,due to trolley system
Weighing method
100% Gross weighing under containment
Environmental control
Humidity and temperature control in containment
Flexibility
Modular and short downtimes
Accessibility
360° due to separate control cabinet
Processing capability
43,500 capsules/h

Material Compatibility


Density/particle size
Specific to capsule components
Moisture sensitivity
Handled through humidity control
Oxygen sensitivity
Handled through containment
Abrasive materials
Capability to process powders,pellets

Physical Characteristics


Compact footprint
Integrated design with separate control cabinet for 360° accessibility
Discharge method
Integrated capsule deduster
Control panel type
Separate control cabinet
Machine footprint
Compact design
Modularity
Trolley system for fast dosing system changeovers

Custom Options


Control panel type
Separate control cabinet
Trolley system
Quick changeover capability
Modularity
Configurable up to OEB 5
Cleaning system
Wetting-in-place (WIP)
Humidity and temperature control
In containment environment
Weighing under containment
Integrated 100% gross weight control
Accessibility
360° accessibility
Product feeding
Customizable feeding solutions
