High capacity production milling for bulk materials

Optimize your production with our high-capacity milling solution, designed to handle bulk materials efficiently, reducing processing time and ensuring consistent particle size for your end products in various processing stages.

Processes and Sizes Bulk Powders Efficiently

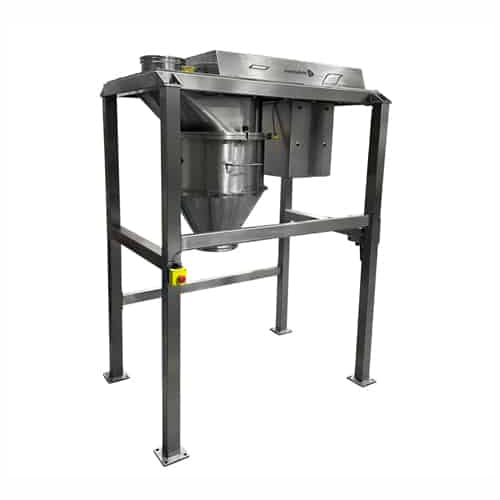

The Uni-Mill M60-B from Hanningfield is an advanced conical mill engineered for the rigorous demands of high-capacity powder processing. Featuring an over-driven milling design, it offers precise control over particle size through customizable screen and impeller configurations. The M60-B excels in applications such as processing pharmaceutical powders and food ingredients, ensuring consistent granule and powder specifications essential for end-products like paracetamol tablets and protein powders. Its robust 15kW motor facilitates a throughput capacity of up to 7,200 kgs/hr, making it suited for continuous, high-speed operations. Constructed from 316L stainless steel, it offers superior corrosion resistance, meeting stringent GMP and FDA standards. Integration into production lines is seamless with customizable inlet/outlet configurations and options for various mounting solutions. Additionally, the unit supports energy-efficient operations with variable speed settings, thereby reducing operational costs. Maintenance is efficient with easy access for inspection and cleaning, essential for minimizing downtime.

Benefits

  • Enhances operational efficiency with high throughput capacity up to 7,200 kgs/hr.
  • Reduces particle size variability for consistent product quality across batches.
  • Minimizes maintenance downtime with easy-access design for quick inspection and cleaning.
  • Complies with GMP and FDA standards, ensuring product safety and quality assurance.
  • Adapts to diverse applications with customizable configurations for optimal performance.

General


Applications
Chemical powders,Nutraceuticals,Pharmaceutical powder,Food ingredients,Cannabis products
End products
Protein powder,Silicon carbide powder,Paracetamol tablets,Cbd oil capsules,Vanilla flavoring
Steps before
Purification,Drying,Grinding
Steps after
Packing
Input ingredients
bulk material,raw materials for milling,large material pieces
Output ingredients
milled bulk material,fine particles,powder,approximately 150 microns size particles
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Max Throughput
7200 kgs/hr (16000 lbs/hr)
Screen Diameter
609mm (24")
Standard Motor
15 kW (20 HP)
Approx. Weight
475 kgs (1045 lbs)
Standard Speed
480 RPM
Lowest Achievable Particle Size
Approx. 150 microns (80 mesh)
Typical Noise Level
<78dB
Contact Parts Material
316L stainless steel (1.4404)
Non-Contact Parts Material
304 stainless steel (1.4301)
Country of Design
United Kingdom
Country of Manufacture
United Kingdom

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
Changeover time
Quick changeover possible with spacer set
Cleaning method
CIP (Clean-in-Place) available
Energy efficiency
Variable speed motor with 15kW power
Particle size control
Achievable down to 150 microns

Material Compatibility


Contact Parts
316L stainless steel (1.4404)
Non-Contact Parts
304 stainless steel (1.4301)
Density/particle size
Approx. 150 microns (80 mesh)

Product type Characteristics


Milling Capacity
7200 kgs/hr (16000 lbs/hr)

Physical Characteristics


Screen Diameter
609mm (24")
Inlet Size
560 x 280mm
Outlet Shroud Diameter
660mm
Weight
475 kgs (1045 lbs)
Mounting Solutions
Mobile frame,fixed-stand,hoist-mounted,free-standing
Spacer Set for Gap Adjustment
Included
Customization Options
Screen hole size and shape,impeller type

Custom Options


Impeller type
Round-Bar,Square Bar
Screen hole shape
Round-Hole,Square-Hole,Grater-Hole
Screen hole size
Customizable
Mounting solutions
Mobile frame,fixed-stand,hoist-mounted,free-standing
Inlet/outlet configuration
Modifiable to suit requirement
Motor speed
480RPM standard,variable speed available
