Fluid bed and coating system for small batch processing

Streamline your R&D process with a modular system that ensures precise scaling from laboratory to production, optimizing granulation and coating of tablets, capsules, and powders.

Processes Granulation, Coating, and Drying Operations

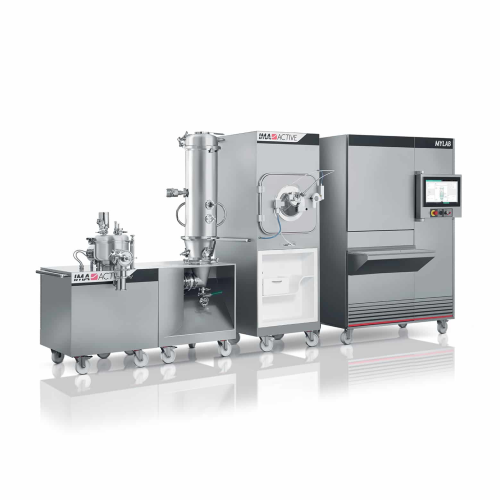

The MYLAB unit from IMA Group provides a compact and modular solution for granulation and coating processes, designed specifically for pharmaceutical and biotech applications. It integrates a Main Technical Unit with air handling, spray systems, and control panels, ensuring precise operation for R&D and pilot scales. With its fluid bed modules and high shear granulators, MYLAB efficiently processes tablets, capsules, and powders, making it ideal for pain relief tablets, vitamin capsules, and extended-release pellets production. The equipment supports both top and bottom spray operations, and its coating pans are equipped with interchangeable drums for flexible batch sizes, from 0.5 to 10 liters. MYLAB’s automation is enhanced by a new HMI interface that improves operator efficiency. Compliant with stringent GMP standards, it offers quick product changeovers and easy cleaning, ensuring seamless integration into your production line.

Benefits

  • Ensures precise batch scaling and consistency, minimizing production errors.
  • Enhances operator productivity with an intuitive HMI interface.
  • Provides versatile processing with interchangeable modules for varied batch sizes.
  • Complies with stringent GMP regulations, ensuring product safety and quality.
  • Streamlines cleaning and maintenance, reducing downtime and contamination risk.

General


Applications
Pharmaceutical tablets,Pellets,Granules,Powders,Capsules
End products
Extended-release pellets,Pharmaceutical powder blends,Pain relief tablets,Granulated excipients,Vitamin capsules
Steps before
Formulation,Mixing
Steps after
Coating,Tablet Pressing
Input ingredients
tablets,capsules,pellets,granules,powders
Output ingredients
coated tablets,coated capsules,coated pellets,dried granules,mixed powders
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Air flow
50 – 300 Nm³/h
Air temperature
20 – 90°C
Top spray working capacity
3 – 6 litres
Interchangeable bowl
1-3 litres
Bottom spray working capacity
3 – 6 litres
HSG working capacity
0.5-2 litres
Interchangeable bowl
3-6 litres
Perforated drum capacity
1.5-6 litres
Optional perforated drum capacity
0.5-2 litres
Pan diameter
460 mm
Solid wall drum capacity
1-3 litres
Wedge wire screen drum capacity
0.6-6 litres
Weight
935 kg

Operating Characteristics


Working mechanism
Granulation and coating
Integrated steps
Granulation,coating,drying
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Cleaning method
Manual / CIP
Changeover time
Quick and easy product change
Modular system
Fluid bed and coating modules

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Batch size for fluid bed
3–6 litres
Batch size for coating pan
0.5–10 litres
Batch size for high shear granulator
0.5–2 litres
Product container type
Interchangeable
Spray type
Top/Bottom
Coating method
Pan coating with interchangeable drums
Top spray granulation
Yes
Bottom spray coating
Yes
Powder layering capability
Yes
High shear mixing
Yes
Heat sensitive products
Compliant
Container size adaptability
1-6 litres


GMP Compliance
Yes
FDA Compliance
Yes
CE Marking
Yes

Physical Characteristics


Machine footprint
Compact modular design
Batch size
0.5 to 10 litres
Bowl capacity
1 to 6 litres
Pan diameter
455 to 460 mm
Weight
935 kg
Control panel type
Integrated in MTU
Discharge method
Modular / Interchangeable

Custom Options


Control panel type
Integrated in the Main Technical Unit (MTU)
HMI type
MAX new corporate HMI
Interchangeable product containers
Top and Bottom Spray Processes
Interchangeable drums
Perforated,Wedge,Solid wall executions
Panel integration
Prearranged to work with production modules
