Entry-level starchless depositor for nutraceutical gummies

Manufacturing nutraceutical products such as vitamin, CBD ,or other supplements in gummies necessitates a hygienic production approach to prevent potential cross-contamination. Using starch depositing heightens the probability of starch particles compromising the product surroundings.

Deposits and moulds nutraceutical gummies hygienically on heated contact surfaces

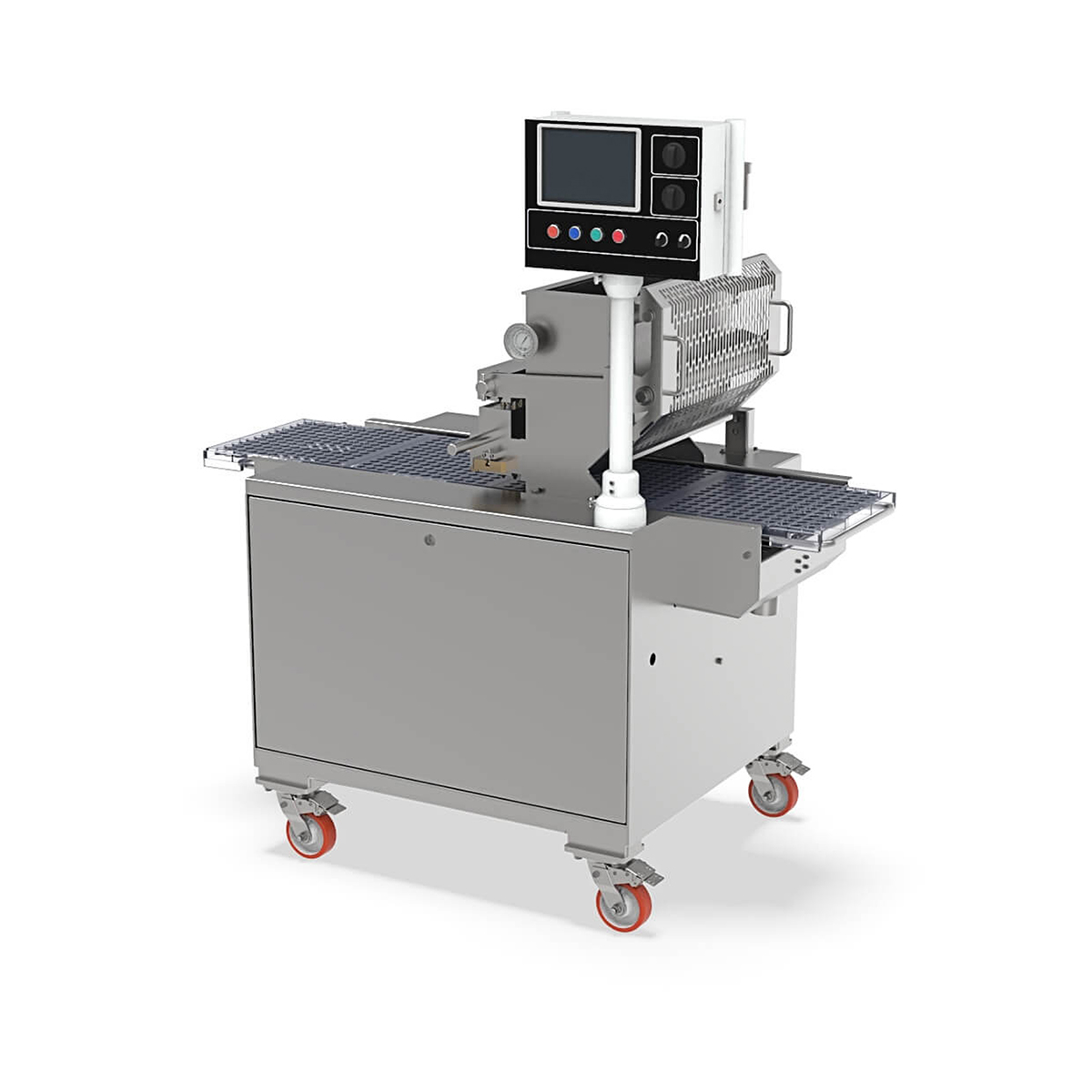

The OTC 400S NS Moulding, from Tanis, is a starchless depositing and moulding system specifically designed for handling nutraceutical and CBD gummies. The system features heated contact surfaces where the product mass passes to prevent the risk of pre-gelling. The machine is equipped with a closed-jacketed pump housing that keeps the dosing accurate. Moulds used in the system are made of top-quality hygienic and rigid polycarbonate material, but can also deposit in silicon moulds. Controls for piston parameters such as piston speed, suck back, and stroke length can be adjusted through an intuitive HMI interface.


  • Production capacity of up to 3 moulds/ minute
  • Easy operation through intuitive PLC controls
  • Hygienic rigid plastic moulds
  • Minimal pre-gelling
  • Accuracy over total mould of 0.1 grams
