Efficient grinding and drying mill

Transform your production line with a versatile mill that simultaneously grinds, dries, and classifies, delivering ultra-fine powders with precise particle size control.

Grinds, Dries, and Classifies Materials

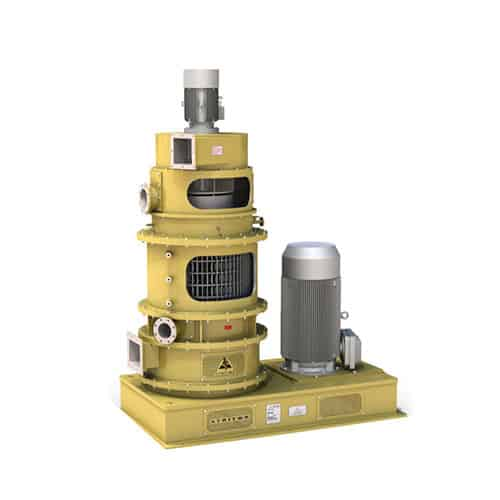

The Atritor Cell Mill from Scott Equipment Company offers a versatile solution for industries needing efficient ultra-fine powder production. This equipment simultaneously grinds, dries, and classifies a variety of materials, utilizing multiple rotors on a vertical shaft to achieve mean particle sizes below 20 microns. Its modular construction permits customized design to fit specific operational requirements, and an integral dynamic classifier ensures precise control over top particle size. The Cell Mill operates as an air-swept unit, enabling it to serve both as a flash dryer and a mill capable of direct slurry feeding. Manufacturing applications range from minerals like bentonite and kaolin to chemicals, dyes, pigments, and foodstuffs, with capacities spanning from 100 to 33,000 lb/hr and an evaporation rate of up to 6600 lb/hr. With components available in materials ranging from carbon steel to tungsten carbide, it is suited for diverse processing environments, supporting continuous and high-speed operations. The inclusion of a frequency inverter aids in energy efficiency by controlling mill speed and limiting starting current, while the choice of hardened, stainless, or tungsten carbide-tipped rotor blades offers enhanced durability and reduced maintenance needs.

Benefits

  • Achieves precise particle size distribution, improving product consistency and quality.
  • Integrates grinding, drying, and classifying, enhancing production line efficiency.
  • Customizable design allows adaptation to specific operational needs and material compatibility.
  • Air-swept operation reduces moisture content rapidly, supporting faster processing times.
  • Frequency inverter minimizes energy use, leading to cost savings in power consumption.

General


Applications
Chemicals,Dyes,Metal powders,Minerals,Foodstuffs,Plastics,Pigments,Pharmaceuticals
End products
Cocoa powder,Plastic resins,Bentonite powder,Wheat gluten,Pharmaceutical excipients,Ultramarine blue pigment,Calcium carbonate powder,Kaolin clay
Steps before
Purification,Slurry preparation,Feeding,Initial grinding
Steps after
Classification,Product packaging,Post-drying,Particle size analysis
Input ingredients
bentonite,brewer’s grain,calcium carbonate,coal,cocoa,dyes,flour,kaolin,limestone,metal powders,methyl cellulose,petroleum coke,pigments,plastics,starch,ultramarine,wheat,wheat gluten
Output ingredients
ultra-fine powders,dry fine powder,materials with mean particle sizes below 20 microns
Market info
Scott Equipment is known for its expertise in custom-designed industrial mixing and processing equipment, catering to diverse industries with a strong reputation for quality, innovation, and customer-focused engineered-to-order solutions.

Technical Specifications


Capacity
100 to 33,000 lb/hr
Evaporation Rate
up to 6600 lb/hr
Particle Size
below 20 microns
Mill Speed Control
Frequency inverter
Grinding Track Material
Carbon steel,high-chrome iron,stainless steel,high-alumina ceramic
Rotor Blades Material
Hardened,stainless or tungsten carbide-tipped steel
Air Swept Mill
Yes

Operating Characteristics


Working mechanism
Multiple rotors on a vertical shaft
Integrated steps
Grind,dry,and classify simultaneously
Air incorporation control
Frequency inverter for mill speed control
Batch vs. continuous operation
Continuous
Capacity
100 to 33,000 lb/hr

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Modular construction
Yes
Vertical shaft-mounted rotors
Multiple
Compact footprint
Yes
Material compatibility
Various materials available
Dynamic classifier
Integral
Air-swept design
Yes

Custom Options


Construction
Modular
