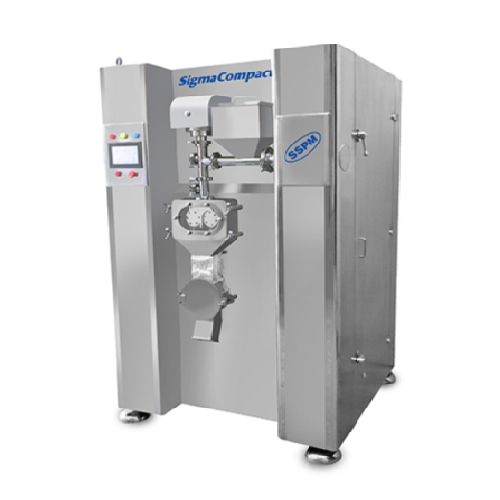

Dry granulation roll compactor

Optimize your tablet and capsule formulation by efficiently compacting and granulating powders with precise control over particle size and density in continuous operation.

Compacts and Granulates Pharmaceutical Powders

The SigmaCompactor™ series from SSPM Systems & Engineers is designed as a versatile encapsulated roll compactor for the pharmaceutical, chemical, and food industries. Utilizing a unique twin screw design with one fixed and one hydraulically floated roller, it ensures efficient compaction and granulation of powders into uniform granules. This system is ideal for processing a wide range of materials, including paracetamol tablets and vitamin C tablets, with output capacities ranging from 5 to 300 kilograms per hour depending on the model. The equipment offers both online and offline operation capabilities, controlled via PLC and HMI systems for precise recipe management. Energy efficiency is optimized with variable-speed motors, enhancing throughput and reducing operational costs. Constructed for durability, it can be customized with a water-jacketed roller for heat-sensitive materials and comes with options for CIP systems, vacuum de-aeration, and isolation chambers, ensuring compliance with GMP standards. This compactor integrates seamlessly into existing production lines, aiding in continuous or batch processing with minimal maintenance requirements.

Benefits

  • Enhances product consistency and quality through precise granulation.
  • Minimizes manual intervention with PLC-controlled operation, reducing labor costs.
  • Offers flexible processing options with dual online and offline capabilities.
  • Decreases operational costs by optimizing energy use with variable-speed motors.
  • Ensures quick changeovers and easy cleaning with optional CIP systems.

General


Applications
Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powders
End products
Multivitamin capsules,Vitamin c tablets,Ascorbic acid powder,Ibuprofen granules,Paracetamol tablets,Protein supplement powder
Steps before
Material Handling,Sifting,Milling
Steps after
Tablet Coating,Formulation,Blending
Input ingredients
Output ingredients
Market info

Technical Specifications


Model/Size
RC 50x25,RC 100x50,RC 100x75,RC 200x75,RC 200x100,RC 200x150,RC 300x200,RC 300x300
Output [Kg/Hr]
5 to 300 Kg/Hr
Roller [RPM]
1 to 20 RPM
Vertical Feed Screw [RPM]
1 to 75 RPM
Cutting Roller Motor
N/A or 1 to 100
Dry Granulator [RPM]
1 to 185 RPM
Compaction Force
2.5 Ton to 17.5 Ton
Roll Motor [HP]
1 to 25 HP
Vertical Feed Screw Motor [HP]
1 to 7.5 HP
Dry Granulator Motor [HP]
0.25 to 5 HP
Hydraulic Power Pack [HP]
1.5 to 3 HP
Utility-Electrical [HP]
3.75 to 45 HP
Dual Screw Roll Compactor Type of Model
Cantilever Model,Between the Wall Model
Horizontal Feed Screw [RPM]
1 to 190 RPM
Horizontal Feed Screw Motor [HP]
0.25 to 5 HP

Operating Characteristics


Working Mechanism
Single/Twin Screw Design
Automation Level
PLC,HMI with Recipe Management
Operation Mode
Online or Offline
Cleaning Method
Wash in Place System
Batch vs. Continuous Operation
Batch

Material Compatibility


Chemical compatibility
Corrosion-resistant materials
Moisture sensitivity
Dry granulation processes
Biological compatibility
Pharmaceutical-grade materials
Density/particle size
Compatible with 50–1000 µm
Cleanability
Designed for easy cleaning with WIP/CIP systems
Corrosive resistance (e.g. acids)
Stainless steel construction

Physical Characteristics


Machine footprint
Compact design for space efficiency
Roller design
Single/Twin screw design
Roller mechanism
One fixed,second hydraulically floated
Operation type
Online or offline operation
Temperature control
Water jacketed roller option
Vacuum system
Vacuum de-aeration available
System integration
Can be offered in isolator

Custom Options


Integration possibilities
Online or Offline
Roller Features
One Fixed,Second Hydraulically floated Roller Mechanism
Vacuum De-aeration
Can be provided
Water Jacketed Roller
Can be provided
Dry Granulator
Can be provided
Auto Loading System
Can be provided
Wash in Place System
Can be provided
Isolator Option
Can be offered with Isolator
