Double shaft batch mixer for chocolate production

Optimize your chocolate and confectionery production with precise mixing and homogenization, ensuring consistent product quality across batch operations with double shaft technology.

Mixes and Homogenizes Chocolate and Confectionery Ingredients

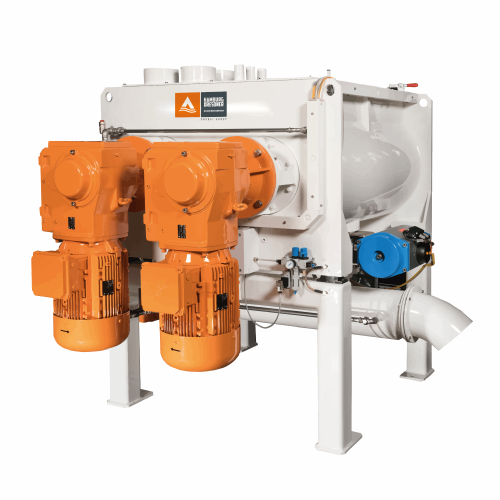

The Double Shaft Batch Mixer HBM from Hamburg Dresdner Maschinenfabriken is tailored for rigorous demands in chocolate, cocoa, and confectionery processing. Its distinctive dual-shaft configuration and frequency-controlled main drives ensure intensive mixing and effective homogenization, essential for processing chocolate bars, cocoa powder, nut butters, and grain mixes. Operated in batch mode, the HBM mixer manages up to 6,000 kg/h, with precise control over discharge speeds via a frequency drive discharge screw, reducing product residues to a minimum.

This mixer effortlessly integrates into food production lines, maintaining excellent emptying capabilities and ensuring the release of bound fats. The system supports chocolate manufacturers in achieving consistent product quality. Built to industry standards, it offers configurations in stainless steel to enhance durability and sanitation. Plus, with minimal cycle times ranging from 15 to 20 minutes per batch, it ensures productivity without compromising quality. Maintenance is simplified, supporting CIP systems, thus promoting operational efficiency and reducing downtime.

Benefits

  • Enhances product consistency with intensive homogenization and thorough mixing.
  • Minimizes waste and product loss with efficient discharge and low residue accumulation.
  • Increases operational efficiency, processing up to 6,000 kg per hour.
  • Improves flexibility with customizable processing for solids, powders, and granules.
  • Reduces downtime with streamlined, easy-to-maintain CIP-compatible design.

General


Applications
Cocoa,Grains,Confectionery,Malt,Nuts,Seeds,Chocolate
End products
Malt extracts,Cocoa powder,Nut butters,Seed pastes,Confectionery coatings,Chocolate bars,Grain mixes
Steps before
Cocoa Processing,Cleaning,Pre-Treating,Winnowing,Sterilising,Alkalising,Roasting,Grinding
Steps after
Pre-Refining,Refining,Conching,Packaging
Input ingredients
cocoa,chocolate ingredients,grains,seeds,malt,nuts
Output ingredients
homogenized product,chocolate mix
Market info
Hamburg Dresdner Maschinenfabriken GmbH is known for expertise in manufacturing industrial machines for the cocoa, chocolate, and confectionery industries, particularly focusing on roasting, grinding, and refining processes. They have a strong reputation for quality and innovation.

Technical Specifications


Capacity
500 kg,1000 kg,2000 kg per batch
Throughput
2000 kg/h,4000 kg/h,6000 kg/h
Cycle time per batch
15-20 min
Mixing shafts number
2
Connected load
2 x 11 kW,2 x 18.5 kW,2 x 33 kW
Net weight
2900 kg,3950 kg,5700 kg
Discharge method
Frequency drive discharge screw

Operating Characteristics


Working Mechanism
Double-Shaft Design
Automation Level
Frequency Controlled
Batch vs. Continuous Operation
Batch
Discharge Method
Frequency Drive Discharge Screw
Intensive Homogenization
Yes
Effective Release of Bound Fat
Yes
Minimum Product Residues
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Homogenization
Intensive
Product residue minimization
Minimum product residues
Fat release
Effective

Physical Characteristics


Batch content
500 kg,1000 kg,2000 kg
Mixing shafts
2
Connected load
2 x 11 kW,2 x 18.5 kW,2 x 33 kW
Weight (net)
2900 kg,3950 kg,5700 kg
Cycle time per batch
15 - 20 min
Frequency controlled main drives
Yes
Discharge method
Frequency drive discharge screw

Custom Options


Discharge method
Controlled discharge speed by frequency drive discharge screw
Control panel type
Frequency controlled main drives
Batch sizes
500 kg,1000 kg,2000 kg
Cycle time
15 - 20 min
Number of mixing shafts
2
Performance range
Up to 2000 kg/h,Up to 4000 kg/h,Up to 6000 kg/h
