Dissolution online system for automated Uv-vis analysis

Ensure precise dissolution testing and seamless UV/VIS analysis with streamlined, semi-automatic system integration for pharmaceutical and biopharmaceutical formulations.

Conducts Automated Dissolution Testing and Analysis

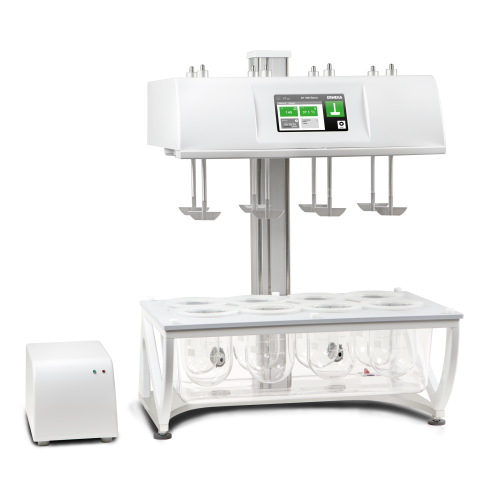

The ERWEKA Dissolution Online System DT 950 is a sophisticated solution designed to meet the demanding requirements of pharmaceutical dissolution testing. Integrating seamlessly with various UV/VIS spectrophotometers, this system automates the dissolution process, from precise sampling with the ASS-9 station to comprehensive data management with Disso.NET software. It’s particularly suited for testing extended-release tablets, enteric-coated formulations, and other complex pharmaceutical products. The DT 950 supports a range of USP methods, ensuring compliance with industry standards. With its semi-automatic operation and PC control, the system allows for extensive customization and ease of integration into existing laboratory workflows. Enhanced by energy-efficient peristaltic and piston pumps, it offers reliable performance with minimal maintenance, making it an essential tool for R&D and quality assurance labs.

Benefits

  • Enhances testing accuracy with automated, precise sampling and analysis.
  • Streamlines data handling and compliance reporting through Disso.NET software.
  • Reduces manual intervention, lowering labor costs and potential errors.
  • Ensures regulatory compliance with USP/EP/JP standards.
  • Integrates seamlessly with existing lab setups, improving workflow efficiency.

General


Applications
Vitamins, Supplements, Liquid formulations, Pharmaceutical tablets, Nutraceuticals, Biopharmaceuticals
End products
Liquid multivitamins, Probiotic supplements, Enteric-coated tablets, Herbal tinctures, Extended-release tablets, Dietary capsules, Effervescent vitamin c tablets, Biopharmaceutical injectables
Steps before
Media Preparation, Mixing, Granulating, Coating
Steps after
Sterilization, Data Export, Quality Control, Documentation
Input ingredients
dissolution media, tablet samples, test solutions, sample collection vessels
Output ingredients
UV/VIS analysis data, dissolution test reports, PDF files with results, XML data exports, audited protocols
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Automation
Semi-Automatic
Compliant Standards
USP/EP/JP
Sampling Station
Automated (ASS-9)
Pump Type
Peristaltic IPC 8 / Piston PVP
Sample Analysis Device
UV/VIS Spectrophotometer
Temperature Control
External Flow-through Heater
Number of Test Stations
12–14
Software Control
Disso.NET
Test Methods
USP 1, 2, 5, 6
Accuracy
±0.5 ml (Pump)
System Control Interface
RS 232
User Management
Active Directory
Report Format
PDF/XML

Operating Characteristics


Automation level
Semi-automatic / Controlled by Disso.NET
Batch vs. inline operation
Online analysis
Integrated steps
Automated sampling and UV-VIS analysis
Cleaning method
Easy cleaning design
Temperature control
External flow-through heater
Vibration control
Vibration-free heating system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


USP Compliance
USP 1, 2, 5, 6

Physical Characteristics


Vessel size
Multiple vessel sizes available
Pump type
Peristaltic pump IPC 8 or PVP 820 piston pump
Discharge method
Automated sampling station ASS-9
Control panel type
PC-controlled by Disso.NET software
External heater
Flow-through heater
UV/Vis Device
Shimadzu 1900i, Thermo Fisher Evolution Pro, Analytic Jena Specord 200/10

Custom Options


Control panel type
PC-based control via Disso.NET
Integration possibilities
Compatible with various UV/VIS devices (Shimadzu, ThermoFisher, Analytica Jena)
Pump options
Peristaltic pump IPC 8 or Piston pump PVP 820
Test methods
Flexible high-head and low-head modes
Sample collector compatibility
Compatible with FRL 624/724/824 sample collector
