Continuous ice cream freezer
Enhance the consistency and texture of frozen desserts with this self-contained solution, streamlining your production line by ensuring precise control over freezing and mixing processes for optimal product quality.
Freezes and Controls Liquid Dairy Products

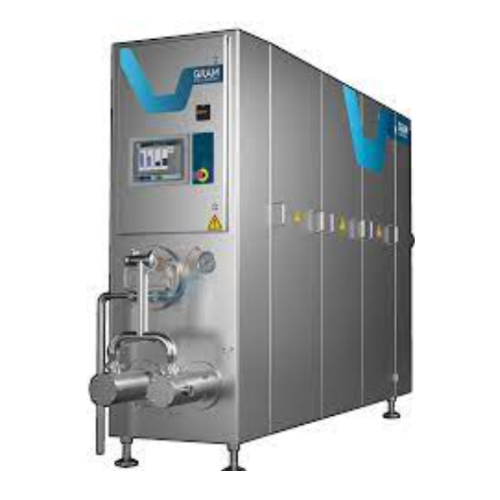

The GIF 700/1500 from Gram Equipment is a self-contained continuous ice cream freezer ideal for small-scale production and laboratory settings. This equipment integrates seamlessly into ice cream and frozen dessert manufacturing lines, offering exceptional control over freezing and mixing processes. With a capacity ranging from 50 to 1,500 liters per hour, it accommodates various production needs, including vanilla and chocolate ice creams, low-fat frozen yogurt, mango sorbet, and raspberry gelato.
The GIF series employs automatic overrun control and advanced flow regulation, ensuring precise mix consistency and quality outputs. Equipped with high-efficiency air filtering and hermetic or piston compressors, these freezers minimize energy consumption, enhancing operational efficiency. The compact design, combined with automatic start-up and user-friendly interface, allows for straightforward integration and control via PLC systems, ensuring smooth, continuous operations with reduced product waste.
The freezers are constructed with stainless steel and incorporate sanitary filters and CIP-compatible components, facilitating easy cleaning and maintenance. Customize your setup with accessories for simulation and accommodate unique production requirements, with support from Gram Equipment’s engineering expertise.
Benefits
- Ensures consistent product quality and texture with precise control over freeze and mix parameters.
- Reduces operational costs with compact, energy-efficient design.
- Facilitates quick, hygienic cleaning through full CIP capability.
- Decreases waste with automated start and stop procedures.
- Enhances production flexibility with adjustable throughput capacity.
- Applications
- Gelato,Frozen desserts,Ice cream,Sorbet,Dairy products
- End products
- Mango sorbet,Vanilla ice cream,Raspberry gelato,Chocolate ice cream,Low-fat frozen yogurt
- Steps before
- Mix preparation,Ingredient loading,Cooling of ingredients
- Steps after
- Ice cream storage,Packing,Distribution
- Input ingredients
- ice cream mix,compressed air,water
- Output ingredients
- ice cream,smooth product texture
- Market info
- Gram Equipment is known for manufacturing innovative industrial ETO equipment for the ice cream industry, offering advanced technology solutions and a strong reputation for high-quality, reliable machinery tailored to customer needs.
- Capacity
- 50–1500 litres/hour
- Automation
- Automatic Overrun Control
- Automation
- Automatic Mix Flow Control
- Pressure Control
- Automatic Cylinder Pressure Control
- Pumps
- Mix and Discharge Gear Pumps
- Compressor
- Built-in Hermetic Scroll Compressor (GIF 700)
- Compressor
- 6 Cylinder Piston Compressor (GIF 1500)
- Cooling System
- R448A Direct Expansion System
- Display
- Color Touch Display with Graphical Interface
- Control System
- PLC-controlled (Allen Bradley CompactLogix)
- CIP Design
- Two Gear Pumps with CIP Design
- Dasher Drive
- Compact and Silent
- Temperature Control
- Condenser Water Flow Controlled by Automatic Pressure Valve
- Viscosity Control
- Closed Loop Viscosity Control by Hot Gas Injection
- Mix Flow Control
- Closed Loop Mix Flow Control with Volumetric Mix Flow Meter
- Overrun Control
- Closed Loop Overrun Control with Air Mass Flow Meter
- Pressure Control
- Closed Loop Cylinder Pressure Control
- Sanitary Features
- Sanitary Filters,Pressure Booster
- Cooling Medium
- Condenser Water
- Refrigeration System
- Efficient Refrigeration Plant
- Structural Material
- Full Stainless-Steel Construction
- Memory System
- Saving-memory of Working Parameters (up to 25 recipes)
- Data Download
- PLC Download of Data (optional)
- Automatic overrun control
- With air mass flow meter
- Automatic mix flow control
- With volumetric mix flow meter
- CIP design
- Mix and discharge gear pumps
- Automatic cylinder pressure control
- Closed loop
- Start/Stop functionality
- Automatic
- User memory
- Stores up to 25 recipes
- Visualization of operating data
- Display with graphical overview
- Horizontal freezing cylinder placement
- Yes
- Dashers drive
- Compact and silent
- Closed loop viscosity control
- By hot gas injection
- Condensation control
- Water flow controlled by automatic pressure valve
- Automation level
- PLC-controlled
- Pump speed control
- Electronically controlled by VFD
- Adjustable dasher rotation speed
- By VFD
- User-friendly trend screen
- Yes
- Closed loop mix flow control
- With volumetric mix flow meter
- Closed loop overrun control
- With air mass flow meter
- Closed loop cylinder pressure control
- Yes
- CIP Cycle
- User settable
- Compact design
- Very compact and efficient
- Product texture
- Extra smooth and creamy
- Machine footprint
- Compact size
- Freezer type
- Self-contained
- Construction material
- Full stainless-steel
- Freezing cylinder orientation
- Horizontal
- Dasher drive
- Compact and silent
- Electrical box location
- Top part of the frame
- Compressor type (GIF 700)
- Hermetic scroll
- Compressor type (GIF 1500)
- 6 cylinder piston
- Control panel type
- User-friendly interface with pushbuttons and color touch display
- Integration possibilities
- Allen Bradley CompactLogix PLC
- Automatic overrun control
- Air mass flow meter
- Automatic mix flow control
- Volumetric mix flow meter
- User settable CIP cycle
- Automatic procedure
