Continuous chocolate mixer and melter
Optimize your chocolate production with a solution that ensures precise temperature control and continuous, consistent mixing, ideal for crafting uniform chocolate bars, pralines, and coated confections.
Melts, Mixes, and Dispenses Liquid Chocolate

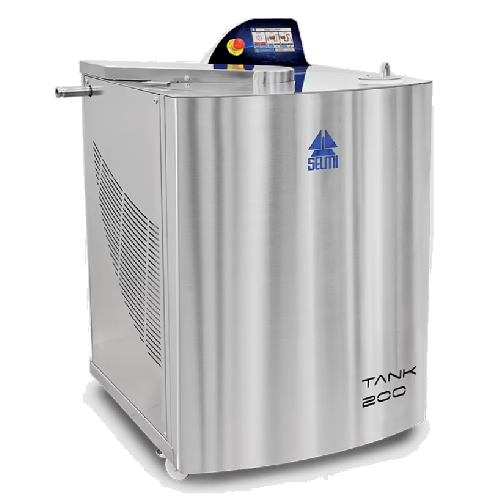

The Tank 200 from Selmi Group is a precision-engineered continuous chocolate mixer and melter, built to streamline chocolate production processes for manufacturers and confectioners. Constructed entirely from stainless steel AISI 304, it ensures durability and high resistance to corrosion. This machine is distinguished by its flexible operation modes, offering both continuous and intermittent mixing with programmable temperature and timing controls, crucial for maintaining product consistency.
Capable of processing up to 200 kg of liquid chocolate, the Tank 200 is designed for easy integration into existing production lines, featuring an integrated pump for smooth feeding to tempering machines and optional right or left-side spout configuration. Its dual thermoregulation system separately manages the tank and exit conduit temperatures, enhancing energy efficiency and operational precision.
Ideal for producing chocolate bars, pralines, truffles, and enrobed confectionery, it supports automated operations with optional supply sensors. The enhanced accessibility due to its large top opening facilitates efficient cleaning and maintenance, critical for maintaining high hygiene standards. This robust piece of equipment suits industrial food processors and artisanal chocolate makers looking to elevate their chocolate production capabilities.
Benefits
- Ensures consistent chocolate quality with precise temperature and timing controls.
- Streamlines production by integrating seamlessly with existing tempering machines.
- Enhances operational efficiency with an energy-optimized, dual thermoregulation system.
- Facilitates easy maintenance and hygiene with a fully accessible large top opening.
- Allows flexible workspace configurations with customizable spout placement.
- Applications
- Confectionery,Ganache,Chocolate fillings,Sweets,Chocolate,Truffles
- End products
- Chocolate ganache fillings,Truffle chocolates,Chocolate pralines,Milk chocolate products,Dark chocolate products,Chocolate-coated sweets,Chocolate bars,Specialty chocolate,Hollow chocolate figures,Enrobed confectionery items
- Steps before
- Grinding,Roasting,Mixing cocoa ingredients,Bean to Bar processing
- Steps after
- Tempering,Chocolate enrobing,Moulding,Dispensing,Cooling,Packing
- Input ingredients
- chocolate,cocoa mass
- Output ingredients
- melted chocolate,tempered chocolate
- Market info
- Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.
- Power required
- 4 Kw
- Voltage
- 400 V three phase - 50 Hz
- Optional voltage
- 220 V three phase – 50/60 Hz
- Tank capacity
- 200 kg
- Dimensions
- 880x1000x1350 mm (LxWxH)
- Automation
- Continuous or intermittent mode,programmable temperatures and timed mixing
- Heating method
- Dry tank heating
- Thermoregulation
- Separate thermoregulation for tank and exit conduit
- Material
- Stainless steel AISI 304
- Control method
- Pedal or button controlled screw pump
- Pump feature
- Reverses direction for tubing cleaning
- Capacity
- Continuous chocolate mixer and melter
- Working mechanism
- Continuous or intermittent mode
- Integrated steps
- Chocolate mixing and heating
- CIP/SIP
- Sanitizable design
- Batch vs. continuous operation
- Continuous operation
- Automation level
- Automated with programmable temperatures and timed mixing
- Cleaning method
- Accessible for manual cleaning
- Energy efficiency
- Requires only power supply connection
- Pumping mechanism
- Equipped with a screw pump
- Pump reversible cleaning
- Reverses direction to clean tubing
- Corrosive resistance (e.g. acids)
- Stainless steel AISI 304
- Cleanability
- Sanitizable with large top opening
- Biological compatibility
- Food-grade stainless steel
- Machine footprint
- 880x1000x1350 mm
- Tank capacity
- 200 kg
- Material construction
- Stainless steel AISI 304
- Tank opening
- Large top opening
- Discharge method
- Integrated pump with spout on right or left
- Control panel type
- Pedal or button controlled
- Pump emission point customization
- Right or left side
- Heating system
- Dry tank heating
- Operation mode
- Continuous or intermittent
- Material
- Stainless steel AISI 304
- Pump type
- Screw pump
