Compact spiral freezer for food processing

Enhance your production efficiency and hygiene standards with a compact, self-stacking freezer that optimizes energy use and integrates seamlessly into continuous high-speed food processing operations.

Freezes and Chills Solid Food Products

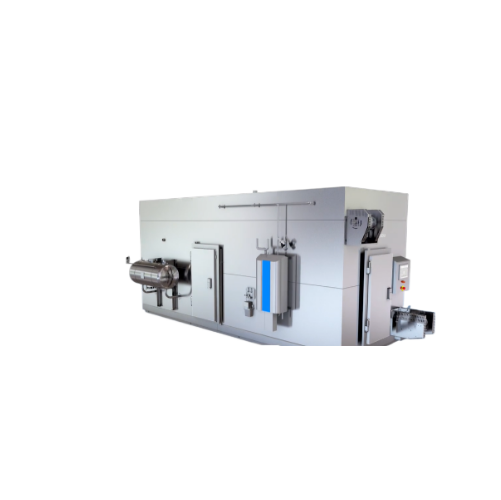

The Frigoscandia GYRoCOMPACT® 40 Spiral Freezer from JBT is a self-stacking solution designed to streamline freezing operations in food processing. This equipment is distinguished by its unique FRIGoBELT® Nova conveyor system, which creates a closed freezing zone for enhanced energy efficiency and hygiene. Ideal for applications including bakery, confectionery, and ready meals, it can handle up to 1,000 kg/hour. Using the FRIGoDRIVE® system, the freezer eliminates the need for a center drum, minimizing jamming risks. With its hygiene-focused design, maintenance is simplified, featuring no stationary belt components to trap dirt. Options include various CIP systems and an LVS refrigeration system to optimize energy use. Available in different configurations to suit specific production needs, the GYRoCOMPACT® 40 is customizable to fit proofing processes as well.

Benefits

  • Enhances product quality with efficient freezing, preserving texture and taste.
  • Minimizes energy costs with optimized power usage from just five kWH.
  • Shortens installation time with pre-assembled delivery.
  • Increases operational uptime with available Air Defrost system (ADF).
  • Supports hygienic operations with an open design minimizing contamination risks.

General


Applications
Seafood,Ready meals,Pasta,Bread,Bakery,Confectionery,Meat,Fruits,Nuts,Plant-based protein,Poultry
End products
Baguettes,Frozen pastries,Roasted almonds,Soy-based burgers,Frozen chicken breasts,Beef steaks,Frozen berries,Chocolate-coated confectioneries,Lasagna,Shrimp tempura,Spaghetti noodles
Steps before
Preparation,Injection,Portioning,Slicing,Grinding
Steps after
Packing,Coating,Sterilization
Input ingredients
bakery products,confectionery,bread,pasta,fruits,nuts,plant-based protein,poultry,meat,seafood,ready meals,alternative meat
Output ingredients
frozen bakery products,frozen confectionery,frozen bread,frozen pasta,frozen fruits,frozen nuts,frozen plant-based protein,frozen poultry,frozen meat,frozen seafood,frozen ready meals,frozen alternative meat
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Freezing Capacity
Up to 1,000 kg/hour
Energy Consumption
From 5 kWh
Belt Width
375 mm
Product Height
50,65,or 85 mm
Capacity Increase
35% to 40% higher than competitors
Defrost System
Air Defrost System (ADF)
Cooling System
LVS Refrigeration System

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP / Manual
Defrost system
Air Defrost system (ADF)
Energy efficiency
Unrivalled energy efficiency
Changeover time
Delivered pre-assembled for shorter installation time on site

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Stainless Steel

Physical Characteristics


Compact footprint
Most compact spiral freezer
Conveyor belt width
375 mm net belt width
Freezer capacity
Up to 1,000 kg/hour
Product height configurations
50,65,and 85 mm
Pre-assembled delivery
Shorter installation time

Custom Options


Control panel type
PLC
CIP system levels
Three different levels
Product height configurations
50,65,85 mm
Refrigeration system
LVS
Defrost system
Air Defrost System (ADF)
System tuning
Specific to production process
