Compact high-torque extruder for customizable extrusion tasks

Ensure precise control over your extrusion processes with a versatile extruder designed for high-torque operations, adaptable for a wide range of production needs, from pharmaceuticals to specialty chemicals.

Processes and Extrudes Diverse Industrial Materials

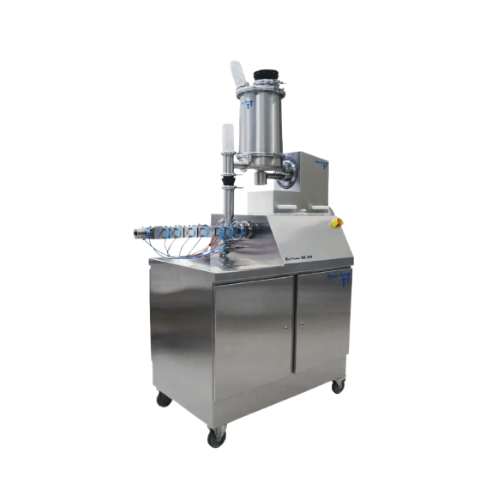

The ZE 24 HMI from Three-Tec is a versatile twin-screw extruder engineered for pharmaceutical, chemical, and food processing industries. It features a compact design with a high-torque drive, facilitating precise mixing, kneading, and extrusion processes. Its modular screw configuration allows for customizable setups using interchangeable segments to meet diverse production requirements. This extruder excels in producing tablets, biodegradable plastics, and functional food ingredients with a throughput capacity of 50 kg/h. It offers flexible speed control ranging from 0.1 to 300 min-1, adjustable up to 1,000 min-1, catering to specific customer needs. The machine supports continuous and high-speed operations, integrating seamlessly into existing production lines due to its intuitive HMI touch-panel and low noise servo motor. Built with stainless steel parts, it ensures high durability and corrosion resistance suitable for harsh processing environments and complies with industry standards. Additionally, the ZE 24 HMI supports efficient water and air cooling methods and offers up to 12 customizable heating zones, promoting energy efficiency and optimal temperature control for sensitive processes.

Benefits

  • Enhances product quality with precise control over mixing and extrusion processes.
  • Reduces operational costs through low noise and energy-efficient servo motor.
  • Supports flexible production demands with customizable screw configurations and adjustable speed settings.
  • Ensures longevity and reliability with stainless steel construction suited for corrosive environments.
  • Facilitates seamless integration into existing systems with user-friendly HMI touch-panel interface.

General


Applications
Process equipment,Fine chemicals,Industrial extrusion,Specialty chemicals,Nutraceuticals,Food processing,Industrial materials,Pharmaceuticals
End products
Functional food ingredients,Polymer beads,Chemical compounds,Specialty coatings,Adhesives,Dietary supplements,Tablets,Flavor encapsulates,Biodegradable plastics,Protein bars,Capsules,Snack pellets
Steps before
Material Preparation,Mixing,Preheating
Steps after
Cooling,Cutting,Packaging
Input ingredients
raw materials,polymer granules,powder,pellets,additives
Output ingredients
extruded profiles,tubing,filaments,sheets
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Screw diameter
24 mm
Max. Torque
120 Nm
Max. Temperature
230°C (400°C optional)
Cooling Options
Water / air or water-air mixture
Heating Zones
1 to 12
Speed Range
0.1-300 min-1,optionally 1-1'000 or customer specified
L/D Ratio
20,25,30,40,50,60 or custom
Weight
≈ 200 kg
Throughput
50 kg/h
Drive Type
Low noise servo motor
Material (Product Contact)
Stainless steel
Material (Barrel,Dies)
Various stainless steels,hardened,customer adapted

Operating Characteristics


Automation level
Intuitive touch-panel operation
Batch vs. continuous operation
Adapted to extrusion task
Changeover time
Interchangeable extrusion dies

Material Compatibility


Abrasion resistance
Yes
Cleanability
CIP / Manual
Corrosive resistance (e.g. acids)
Stainless Steel
Biological compatibility
Stainless Steel

Physical Characteristics


Machine footprint
Compact design
Control panel type
Intuitive touch-panel operation
Discharge method
Interchangeable extrusion dies

Custom Options


Control panel type
Intuitive touch-panel
Extrusion dies
Easily interchangeable
Screw segments
Conveying,return conveying,kneading,mixing
Heating zones
1 to 12
Speed
0.1-300 min-1,optionally 1-1'000 or customizable
L/D Ratio
20,25,30,40,50,60 or customizable
Material barrel,extrusion dies
Various stainless steels hardened,custom application adapted
Cooling options
Water / air or water-air mixture
