Compact combined labelling solution for bottling lines

Optimize your bottling line with a versatile, compact labelling solution that seamlessly integrates wet glue and self-adhesive technologies, catering to diverse product formats while ensuring precise label application. Ideal for high-quality labelling even in low-volume productions.

Combines Wet Glue and Self-Adhesive Labelling

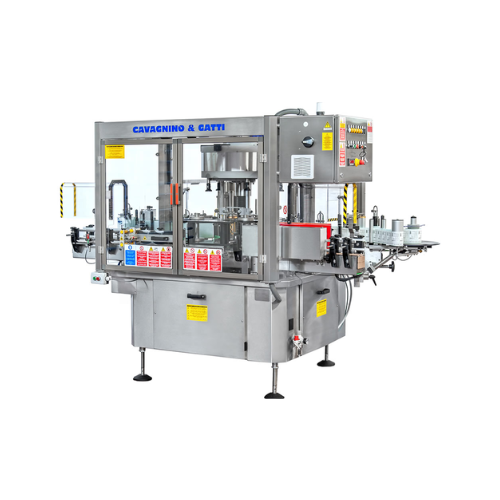

The CG 80 Series from Cavagnino e Gatti integrates wet glue and self-adhesive labelling technologies in one compact design, offering seamless application across diverse bottling lines, including mobile operations. Its step-motor driven XPS and RPS units achieve throughput up to 3,000 bottles per hour, with speeds reaching 40 meters per minute. Ideal for wine, spirits, and cosmetics, it excels in orienting and synchronizing labels on products like Cabernet Sauvignon bottles and face cream jars. An intuitive touch-screen PLC interface facilitates automation, managing bottle accumulation, speed variation, and production alarms. The system is configurable, featuring self-adhesive label units and multi-format star wheels for flexible production needs.

Benefits

  • Enhances production versatility with both wet glue and self-adhesive labelling in a single unit.
  • Optimizes space and mobility, fitting seamlessly into fixed and mobile bottling lines.
  • Increases production efficiency with up to 3,000 b/h throughput and rapid label application speeds.
  • Simplifies operation and maintenance through an intuitive touch-screen PLC interface.
  • Accommodates diverse product formats with customizable label units and adaptable star wheels.

General


Applications
Vinegar,Water,Wine,Mignon,Oil,Spirits,Chemical products,Cosmetics,Food containers,Juices,Soft drinks,Beer
End products
Household cleaning spray bottles,Craft beer cans,Miniature liquor bottles,Cola bottles,Fruit juice cartons,Mineral water bottles,Balsamic vinegar bottles,Plastic food storage containers,Extra virgin olive oil bottles,Face cream jars,Tequila bottles,Cabernet sauvignon bottles
Steps before
Bottle accumulation,Mechanical orientation
Steps after
Capsule spinning or heat-shrinkage,Packing
Input ingredients
bottles,containers,cylindrical bottles,glass with notches
Output ingredients
labelled bottles,wet glue labels,self-adhesive labels,multi-format bottles
Market info
Cavagnino & Gatti is renowned for designing and manufacturing high-performance labeling and packaging machines, specializing in providing tailored solutions for diverse industries with a reputation for innovation, quality, and reliability.

Technical Specifications


Speed
1,000 to 3,000 b/h
Speed (RPS unit)
Up to 25 m/min
Speed (XPS unit)
Up to 40 m/min
Automation
Touch-screen panel interface with PLC management
Machine size
Compact Design
Label application
Wet glue and self-adhesive
Bottle compatibility
Cylindrical bottles of variable diameter
Maximum capacity
3,000 b/h

Operating Characteristics


Label types
Wet glue / Self-adhesive
Label production volume
1,000 to 3,000 b/h
Automation level
PLC-controlled
Label application speed
RPS
Orientation handling
Mechanical orientation of notches
Bottle compatibility
Cylindrical bottles,variable diameter
Capsule handling
Spinning or heat-shrinkage of capsules
Operating flexibility
Multi-format inlet and outlet star wheels

Product type Characteristics


Container type
Glass / Plastic
Container shape
Cylindrical
Label type
Wet glue / Self-adhesive
Production volume
Low volume
Industry Sector
Wine,Spirits,Beer,Soft Drinks,Water,Juices,Food,Chemicals,Cosmetics

Physical Characteristics


Design Type
Compact and straightforward
Machine Footprint
Compact size,suitable for mobile lines
Integration Capability
Can be added to existing bottling lines
Modularity
Modular self-adhesive label units
Bottle Compatibility
Cylindrical bottles of variable diameter
Orientation Capability
Mechanical orientation of notches on glass
Control Panel Type
Touch-screen panel interface

Custom Options


Control panel type
Touch-screen panel interface
Integration possibilities
Self-adhesive label distribution units,modular options
Bottle handling system
Multi-format inlet and outlet star wheels
Bottle orientation system
Mechanical orientation of notches
Capsule handling
Automatic synchronised system for spinning or heat-shrinkage
Automation
Automation package with PLC management
Labeling units
RPS and XPS units
