Compact aseptic filling solution for versatile production

Maximize production line efficiency with a compact filling system that seamlessly integrates aseptic processing and rapid changeovers, ensuring consistent quality and minimal downtime.

Fills and Sterilizes Liquid Food Products

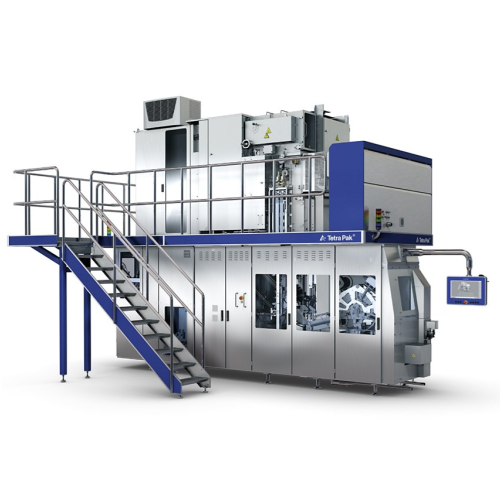

The Tetra Pak A3 CompactFlex from Tetra Pak is an innovative aseptic filling machine designed for efficiency in space-limited environments. This equipment stands out for its compact design of 4.3 meters in height and a 20 m² footprint, while ensuring high food safety through a unique FDA-filed aseptic process. The machine’s servo-driven jaw system allows for versatile production changeovers, accommodating a wide range of liquid products such as UHT milk, flavored milk, yogurt drinks, and juice. With its automatic material supply, the CompactFlex ensures uninterrupted production and delivers consistent, high-quality packaging. The iLine automation platform maximizes production reliability by enabling seamless integration with existing line equipment. Featuring a deep peroxide bath for enhanced packaging material sterilization and QuickChange technology for rapid adaptation between package types, this filling machine significantly reduces waste and energy consumption. Ideal for beverage producers and food processors, the CompactFlex supports a variety of package types, enhancing customization and operational control.

Benefits

  • Enhances production efficiency with QuickChange technology, allowing rapid package type transition.
  • Minimizes energy consumption and operational costs with compact design and optimized motor controls.
  • Maintains high product safety with FDA-filed aseptic processing.
  • Ensures continuous operation with automatic material supply and minimal human intervention.
  • Integrates seamlessly into existing production lines with iLine automation platform.

General


Applications
Sauces,Cheese,Infant formula powder,Tomato products,Dairy,Food,Soups,Desserts,Spreads,Still drinks,Plant-based products,Milk powder,Fruit preparations,Juice,Baby food,Whey processing,Nectar,Dips,Plant-based powder,Dressings
End products
Dairy-based desserts,Pasta sauce,Processed cheese,Still water,Yogurt drinks,Tomato paste,Nectars,Non-dairy puddings,Flavored milk,Whey protein powder,Skimmed milk powder,Hummus,Uht milk,Almond milk,Cream cheese,Plant-based protein powder,Fruit jam,Fruit juices,Pea protein drinks,Salad dressings,Soy milk,Fruit jelly,Ketchup,Pureed baby food
Steps before
Material Preparation,Emulsification,Grinding,Ingredient Mixing
Steps after
Packing,Sterilization,Sealing,Labeling
Input ingredients
packaging materials,strips,aseptic packaging materials,viscous products,sterile air,inert gas
Output ingredients
Tetra Brik Aseptic packages,Tetra Prisma Aseptic packages,PullTab opening packages,hermetically sealed packages,headspace enabled packages,variety of package volumes
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Height
4.3 m
Footprint
20 m²
Automation
Automatic material supply
Sterilisation Method
Deep peroxide bath
Drive System
Servo driven jaw system
Production Changeover
QuickChange technology
Operator Panel
Touch screen interface
Data Collection
PLMS centre
Package Types
Multiple Tetra Brik® and Tetra Prisma® types
Aseptic Process
FDA filed
Sealing Processes
Controlled via iLine automation
Headspace Injection
Sterile air or inert gas
Viscous Product Filling
High Viscosity Aseptic (HVA) Kit
Packaging Opening
Integrated PullTab Unit

Operating Characteristics


Automation level
Integrated iLine automation platform
Changeover time
20 minutes with QuickChange technology
Aseptic conditions
Maintained with closed-loop sterile air control
Cleaning method
Automatic material supply
Batch vs. continuous operation
Continuous inline operation
Energy efficiency
Saving in consumption due to small aseptic zone

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean
Biological compatibility
High
Abrasion resistance
Yes
Density/particle size
Adaptable


FDA compliance
Unique aseptic process FDA filed

Physical Characteristics


Compact footprint
4.3m high,20m² footprint
Control panel type
Intuitive touch screen interface
Operator interface
Tetra Pak Operator Panel

Custom Options


Control panel type
Tetra Pak Operator Panel with intuitive touch screen
Compact footprint
4.3m high and 20m² footprint
Integration possibilities
iLine automation platform
QuickChange capability
Switch production between packages rapidly
Headspace by Injection
For products that need shaking before consumption
High Viscosity Aseptic (HVA) Kit
For filling viscous products
Integrated PullTab Unit
Production of packages with PullTab opening
