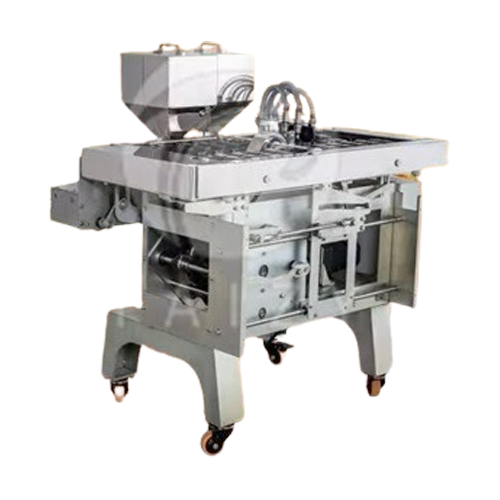

Commercial delimanjoo and taiyaki custard cake maker

Enhance your pastry production with high-speed, mold-customizable cake makers producing diverse shapes and flavors, captivating customers while optimizing output.

Produces and Shapes Filled Custard and Taiyaki Cakes

The Delimanjoo and Taiyaki Cake Production Machine offers an innovative solution for the confectionery and bakery industries. This equipment is designed to produce intricately shaped and stuffed cakes, such as the popular fish-shaped Delimanjoo and Taiyaki waffles, with customizable fillings including strawberry, mango, and cheese. It operates through a multi-step process encompassing mixing, preheating, grouting, molding, baking, and cooling, ensuring consistent quality and high throughput.

Ideal for seamless integration into existing production lines, the machine is PLC-controlled for precise operation and requires minimal manual intervention. With a capacity to produce up to 800 cakes per hour, it caters to high-demand environments such as food processing facilities, western restaurants, and cafes. The use of food-grade cast aluminum molds provides high-temperature resistance and a non-stick surface, suitable for continuous automated operations.

Energy efficiency is enhanced through variable heating options, offering both electrical and gas choices, aligning with operational preferences. This equipment allows mold customization to create diverse shapes that captivate consumers, further supported by low maintenance costs and straightforward cleaning procedures. Whether aiming to expand product offerings or optimize production efficiency, this machine delivers a reliable and flexible solution.

Benefits

  • Enhances production efficiency with high-speed, continuous operation.
  • Expands product offerings through customizable mold designs for unique shapes.
  • Lowers energy costs with efficient heating options, including electric and gas.
  • Minimizes labor requirements by allowing single-person operation.
  • Promotes easy cleaning and maintenance with non-stick, high-temperature resistant molds.

General


Applications
Snacks,Confectionery,Waffles,Sweets,Pastries,Bakery products,Custard cakes
End products
Walnut-shaped custard cakes,Chocolate-stuffed cakes,Custard cream cakes with cheese filling,Corn-shaped custard cakes,Custard cream cakes with strawberry filling,Taiyaki waffles,Pine nut-shaped custard cakes,Strawberry-stuffed cakes,Fish-shaped delimanjoo cakes,Panda-shaped custard cakes,Custard cream cakes with mango filling,Mango-stuffed cakes
Steps before
Batter preparation,Beater usage,Preheating machine
Steps after
Cake removal,Packing,Cooling,Quality inspection
Input ingredients
batter,custard cream,chocolate filling,strawberry filling,mango filling
Output ingredients
fish shape Delimanjoo cake,Taiyaki waffles,custard cream cake,strawberry flavored cake,mango flavored cake,cheese flavored cake,walnut shape cake,corn shape cake,pine nut shape cake,panda shape cake
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
800 PCS/H
Cake Weight
14-20g
Size
160*10*45 mm
Voltage
220V
Power
4.5kw
Mold Material
Food grade aluminum
Coating
Teflon
Heating Mode
Electrical/Gas
Weight
200KG
Dimensions
Diameter 1150*800*1100MM

Operating Characteristics


Working mechanism
Automatic,Manual
Integrated steps
Batter preparation,Mold filling,Baking,Unmolding
Batch vs. continuous operation
Continuous
Automation level
Single Operator
Cleaning method
Manual

Material Compatibility


Cleanability
Non-stick surface
Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Food-grade aluminum
Abrasion resistance
High-temperature resistance

Product type Characteristics


Filling options
Cream,fruit flavors,cheese,chocolate


3A Sanitary Standards
0
GMP Compliance
0
FDA Materials
Yes
ATEX certification
0
CE marking
0
EHEDG certification
0
FDA compliance
Yes

Physical Characteristics


Machine footprint
1150*800*1100 mm
Machine weight
200 KG
Mold material
Food-grade aluminum
Coating
Teflon
Shape options
Fish,walnut,corn,pine nut,panda
Power requirement
4.5 KW
Voltage
220V
Cake weight
14-20 g
Size (Commercial fish cake)
160*10*45 mm
Heating method
Electricity or gas

Custom Options


Mold Shape
Fish,Walnut,Corn,Pine Nut,Panda,Custom
Mold Material
Food Grade Aluminum
Heating Mode
Electrical,Gas
Flavors
Strawberry,Mango,Cheese,Chocolate,Custom
Mold Size
Customizable
