Combined metal detector and checkweigher for food production

Ensure compliance and safety in food production with this integrated system that simultaneously detects metal contaminants and verifies weight accuracy, optimizing your quality control process to meet stringent regulatory standards and customer satisfaction.

Detects Metal Contaminants and Checks Product Weight

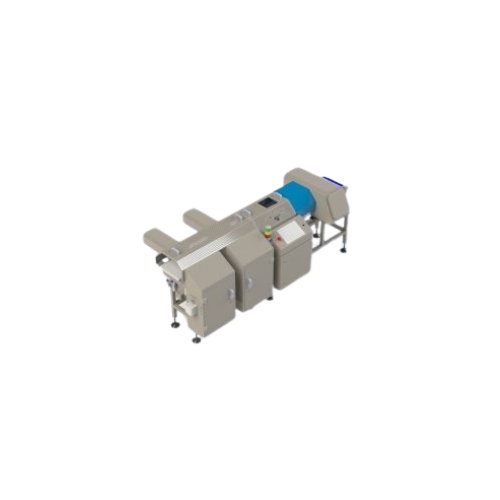

The Combined Metal Detector & Checkweigher JW-GC315 from The Food Machinery Company enhances your food production by integrating metal detection with precise weight checks. This system ensures compliance with BRC and SALSA standards, providing a crucial role in packaging and processing lines for food manufacturers. It uses a 10-inch HMI for intuitive control and a German HBM loadcell for accurate measurements. Ideal for products like sausages, cheese blocks, and chocolate bars, it operates at speeds up to 52m/min with minimal footprint. The JW-GC315 features detachable PU belts for easy cleaning and a lockable bin to secure rejected products, offering reliable contamination control and weight verification in high-speed operations. With storage for up to 100 product settings, the unit simplifies transitions in diverse production environments, while automatic average weight correction aids compliance with legislation. The system supports continuous operation and includes USB data archiving, ensuring both efficiency and traceability in food packaging and manufacturing sectors.

Benefits

  • Enhances product safety by detecting metal contaminants with high sensitivity.
  • Streamlines compliance with weight regulations through accurate weight checks.
  • Reduces downtime with quick-change capabilities and easy cleaning design.
  • Increases operational efficiency with high-speed processing up to 52m/min.
  • Ensures traceability and data management with USB data export for production records.

General


Applications
Ready meals,Snacks,Confectionery,Bakery items,Meat processing,Vegetables preparation,Packaged foods,Food products,Dairy products
End products
Pre-cooked meals,Potato chips,Packaged biscuits,Pre-made sandwiches,Chocolate bars,Diced vegetables,Sausages,Cheese blocks
Steps before
Sorting,Conveying
Steps after
Packaging,Distribution,Quality Control
Input ingredients
food products,packaged products
Output ingredients
compliant products,contamination-free products,correctly weighed products
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Detection type
Metal
Speed
32–52 m/min
Max Packaging Size
H 150mm W 400mm
Sensitivity
Fe 1mm SUS 2mm
Max Weight
2 kg
Automation
Automatic rejecting device
Output Speed
32–52 m/min
Programs capacity
Up to 100 products
Weight Correction
Automatic average (TNE)

Operating Characteristics


Speed
32–52 m/min
Changeover time
Fast changeover with capacity to store up to 100 products
Footprint
Compact design
Automation level
Automatic operation with independent rejecting device
Automation level
Customized operator-friendly software

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Max Packaging Size
H 150mm W 400mm
Discharge method
Automatic rejecting device

Custom Options


Control panel type
10 inch HMI
Compact footprint
Designed to keep footprint minimum
Integration possibilities
USB for data retrieval
Detachable belt design
Detachable PU belt
Reject device
Independent automatic rejecting device of weight and metal
Lockable reject bins
Yes
Customizable speed levels
Three levels of speed
