Cold block piping solution for breweries

Achieve optimal beverage quality and reduce production costs with this advanced piping solution, designed to streamline your cold block processes while ensuring minimal product loss and enhanced cleaning efficiency.

Streamlines Liquid Piping and Connection Systems

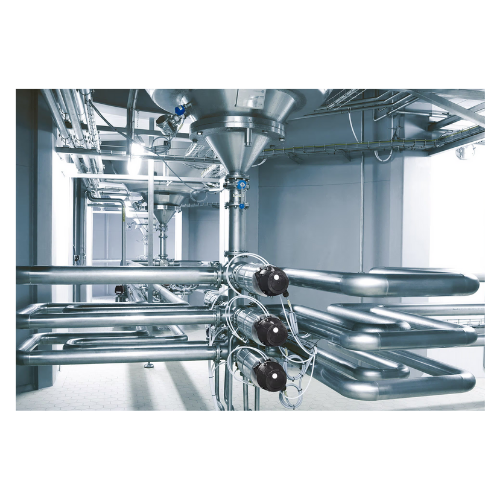

The GEA ECO-MATRIX® Piping Solution is an innovative valve matrix designed for efficient liquid piping in beverage, food, and dairy operations. This fully automatic system features a compact tank outlet tree and ECO-MATRIX® double-seat valves, optimizing cleaning conditions and minimizing product losses. It excels in cold block processing, providing seamless integration with brewery systems, ensuring high-quality production of beers, lagers, ales, and carbonated beverages. With fewer valves than traditional systems, it simplifies installation, automation, and reduces maintenance. The integrated LEFF® module significantly decreases cleaning agent and flush-out losses, operating in an ecologically sound manner. Compliant with industry standards, the system supports continuous operation with enhanced flexibility, making it an asset for producers seeking efficiency and product quality in liquid processing.

Benefits

  • Enhances product quality with minimal life cycle costs, preserving flavors and stability.
  • Streamlines installation and automation, reducing setup time and operational complexity.
  • Minimizes cleaning losses with an eco-efficient design, cutting cleaning agent usage.
  • Decreases maintenance needs through optimal valve arrangement, improving uptime.
  • Ensures fail-safe operation with fully automatic and continuous processing.

General


Applications
Food,Beverages,Brewing systems,Cold block processing,Dairy
End products
Carbonated beverages,Lager,Milk,Cheese,Stout,Sparkling water,Cold brew coffee,Yogurt,Cream,Ale,Beers
Steps before
Cold Processing,Tank Preparation
Steps after
Quality Check,Packaging,Distribution
Input ingredients
cold processing ingredients,unprocessed beer,cleaning agents
Output ingredients
processed beer,reduced cleaning agent waste
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
Fully automatic
Cleaning method
CIP
Valve type
Double-seat valves
Pipe installation
Compact tank outlet tree
Pipe length
Short vertical pipe
Efficiency
Low product losses
Maintenance
Less maintenance work
Operation
Fail-safe operation
Environmental sustainability
Ecologically sound operation
Flexibility
Highest flexibility
Valve arrangement
Favorable valve arrangement
Cleaning losses
Lower cleaning agent losses
LEFF module
Integrated
Flush-out losses
Less flush-out losses

Operating Characteristics


Automation level
Fully Automatic
Cleaning method
CIP
Batch vs. continuous operation
Batch / Inline Continuous
Fail-safe operation
Yes
Energy efficiency
Ecologically sound operation

Physical Characteristics


Compact footprint
Compact tank outlet tree
Tank shape
Short vertical pipe below the tank
Discharge method
Fully automatic pipe connection system
Valve type
ECO-MATRIX® double-seat valves

Custom Options


Valve type
Double-seat valves
Pipe configuration
Compact tank outlet tree
Piping system type
Fully automatic pipe connection
Cleaning module
Integrated LEFF® module
