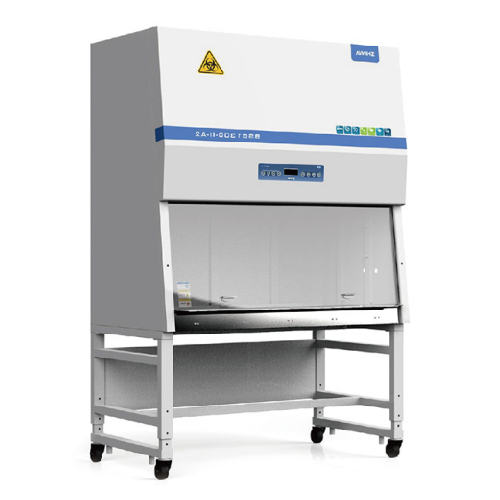

Class Ii biological safety cabinet for laboratory use

Ensure maximum protection for your laboratory personnel and samples with advanced air purification and containment technology, effectively preventing contamination and safeguarding research integrity.

Protects and Isolates Biological Samples

The BSC-II-A2/B2 Biological Safety Cabinets from Shinva are meticulously engineered to provide comprehensive protection for laboratory personnel, samples, and the environment. Using advanced air purification technology, these cabinets maintain a high level of safety by employing a vertical laminar flow and a negative pressure chamber design that effectively isolates harmful aerosols. These Class II cabinets offer 70% recirculation with 30% exhaust for the A2 model, and 100% exhaust in the B2 model, complying with US NSF/ANSI 49 standards.

They are ideally suited for applications in microbiology, biomedical, and biotechnology fields, safeguarding valuable cell cultures, pathogen samples, and vaccine preparations. Built with a durable 304 stainless steel interior that incorporates rounded corners to minimize cleaning dead zones, these cabinets also feature German EBM fans for low noise and high air volume, alongside Swedish Camfil high-efficiency filters ensuring ISO Class 5 cleanliness levels.

Intuitive control is achieved through an LCD interface, indicating real-time critical parameters while the built-in RS485 port enables remote monitoring. The cabinets also feature an automatic air volume compensation system, counterweight balanced sliding front windows with safety interlocks, and easy maintenance access via a front panel. With options for incorporating quick-connect valves and splash-proof power sockets, these cabinets can be tailored to specific laboratory needs, ensuring robust performance and user convenience.

Benefits

  • Enhances laboratory safety by effectively isolating hazardous aerosols and particles.
  • Ensures compliance with NSF/ANSI 49 standards for reliable biosafety assurance.
  • Reduces fatigue with ergonomically designed 10-degree tilt for improved user comfort.
  • Facilitates maintenance with accessible front panel and maintenance-free pulley system.
  • Provides real-time monitoring and remote accessibility through an integrated RS485 interface.

General


Applications
Environmental protection,Microbiology,Biological laboratories,Sample protection,Biomedical laboratories,Personnel protection,Biosafety protection
End products
Pathogen samples,Vaccine preparations,Cell cultures,Biological assay kits,Contaminated biological samples,Laboratory reagents,Genetic material samples,Petri dishes samples
Steps before
Installation,Initial Setup,Calibration
Steps after
Cleaning,Maintenance,Filter Replacement,Disinfection,Packing
Input ingredients
microorganisms,aerosols,suspended particles,air
Output ingredients
purified air,contained harmful particles,sterile environment
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Class Type
Class II A2,Class II B2
Gas Circulation
70% circulation for A2,100% exhaust for B2
Compliance
US NSF/ANSI 49 Standards
Tilt Angle
10 degrees
Material
Standard 304 stainless steel
Fan Type
German EBM fan
Noise Level
Small noise
Air Volume
Large air volume
Filter Type
Swedish Camfil high efficiency filter
Cleanliness Level
Level 10
Wind Speed Sensor
DegreeC from the USA
Automation
RS485 interface,LCD screen display
Air Volume Compensation
Automatic
Socket Type
Built-in splash-proof power socket
Interlock Function
Sliding front window,lighting system,UV sterilization
Maintenance Access
Front panel removable structure

Operating Characteristics


Airflow type
Vertical laminar flow
Gas circulation
70% gas circulation and 30% gas exhaust (BSC-II-A2)
Gas exhaust
100% gas exhaust (BSC-II-B2)
Negative pressure chamber
Four-sided negative pressure channel design
Window operation
Sliding front window with pulley counterweight balance system
Cleaning and maintenance
Front panel removable structure for maintenance
Control system
LCD screen display with mechanical button operation
Ergonomic design
10 degrees tilt angle design
Fan system
German EBM fan
Filter system
Swedish Camfil high efficiency filter
Wind speed sensor
DegreeC wind speed sensor
Remote monitoring
RS485 interface for remote monitoring
UV sterilization
Safety interlock function

Material Compatibility


Cleanability
Internal rounded corners
Corrosive resistance (e.g. acids)
304 stainless steel


NSF/ANSI 49 Standards
Class II Biological Safety Cabinet

Physical Characteristics


Machine footprint
Compact
Control panel type
LCD screen with mechanical buttons
Material
304 Stainless steel
Window type
Tempered glass,anti-UV
Front window mechanism
Sliding with pulley counterweight balance
Chamber design
Negative pressure chamber
Design angle
10 degrees tilt
Structure type
Split structure,separable cabinet body and frame

Custom Options


Control panel type
LCD screen display
Integration possibilities
RS485 interface for remote monitoring
Front window design
Sliding front window with pulley counterweight balance
Front panel structure
Removable for maintenance
BSC design
Split structure
Cabinet and frame separable
Fan type
German EBM fan
Filter type
Swedish Camfil high-efficiency filter
Wind speed sensor
DegreeC wind speed sensor
