Chocolate products aligner for chocoform extruder

Enhance your chocolate production line efficiency with a precision aligner that seamlessly sorts and aligns confections directly from the extruder to the enrobing stage, ensuring optimal flow and uniformity for high-quality end products.

Aligns and Sorts Chocolate Products for Enrobing

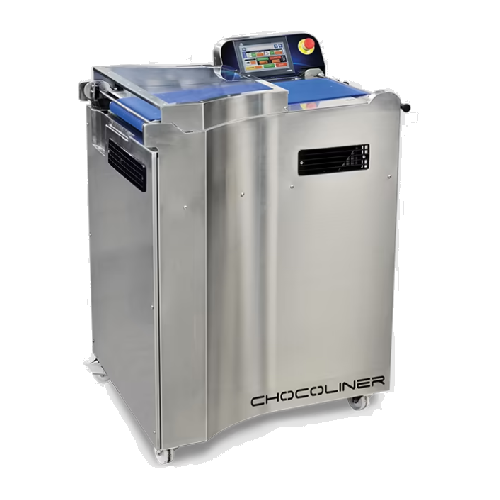

The Chocoliner from Selmi Group is a precision-engineered aligner designed to enhance chocolate and confectionery production lines by aligning and sorting products like chocolate bars, truffles, hazelnut pralines, and gianduja chocolates. Using an oscillatory motion with adjustable steps, it automates the alignment of products post-extrusion, guiding them seamlessly to enrobing and cooling phases, thereby protecting product integrity without manual intervention. This equipment supports the Chocoform extruder’s throughput of 40-50 kg per hour, ensuring efficient integration within your line.

Connecting the extruder to the coating belt, the Chocoliner is suitable for various confectionery applications including chocolates, truffles, and chocolate-coated nuts. It fits seamlessly into automated operations, enhancing production capacity without compromising quality. With electrical specifications of 220 V single-phase and a power requirement of 0.4 kW, it maintains energy efficiency and supports continuous production demands. Its stainless steel construction ensures compliance with food industry standards and resilience against wear, offering a reliable solution for high-volume chocolate production.

Benefits

  • Enhances production efficiency by seamlessly integrating alignment and sorting operations.
  • Minimizes manual handling, maintaining product integrity and reducing waste.
  • Supports continuous production with automated, hands-free operation.
  • Energy-efficient design reduces power consumption, contributing to cost savings.
  • Ensures high-quality, uniform product output, boosting end-product consistency.

General


Applications
Chocolates,Chocolate products,Hazelnuts,Gianduja,Truffles,Almonds
End products
Chocolate truffles,Hazelnut pralines,Almond clusters,Chocolate bars,Chocolate-coated nuts,Gianduja chocolates
Steps before
Extrusion
Steps after
Enrobing,Cooling
Input ingredients
chocolate,truffles
Output ingredients
aligned chocolate products,aligned chocolate truffles
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Electrical specification
220 V single phase - 50/60 Hz
Power required
0.4 Kw - 16 A - 3 poles
Hourly production
40-50 kg
Dimensions
900x7500x1250 mm
Applicable to
Chocoform
Automation
Fully automated

Operating Characteristics


Automation level
Full automation
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick changeover
Energy efficiency
Low power consumption
Oscillatory motion control
Adjustable steps
Safety Interlock System
Yes
Cleaning method
Automated Cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Standard mold sizes
Aligning capability
Chocolate products and truffles

Physical Characteristics


Machine Footprint
900x7500x1250 mm
Discharge method
Automatic / Oscillatory Motion
Control panel type
Digital / Automated
Transportation method
Conveyor Belt
Aligner type
Four aligners with oscillatory motion
