Chocolate moulding line for filled and inclusions bars

Achieve seamless chocolate production with modular flexibility, allowing for quick adaptations and high-speed operations—perfect for creating center-filled and inclusion-rich chocolate varieties.

Deposits and Moulds Diverse Chocolate Products

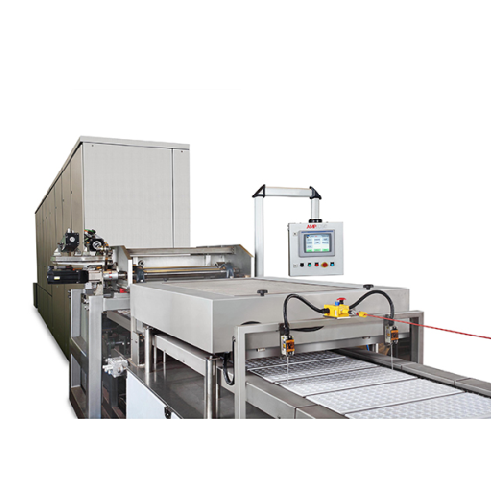

The 700-1000 Chocolate Moulding Line from A.M.P Rose is a modular system designed for precision and flexibility in chocolate production. This innovative equipment utilizes synchronized Servo motor drives to ensure smooth, continuous mould flow, and it can produce a wide range of chocolate products, from center-filled chocolates to bars with various inclusions like fruits, nuts, wafers, and biscuits. It offers a processing capacity of up to 2,800 kg/hr, accommodating up to 20 moulds per minute. Integration with existing lines is seamless, thanks to its modular design, which allows for future expansions or additions like nut mixers and aerated chocolate depositors. Energy efficiency is enhanced by the use of high-performance Servo motors, which optimize motor control and reduce downtime. The equipment is constructed from stainless steel for hygiene and durability, and its design includes features like quick product changeovers via HMI-stored recipes, minimizing cleaning and maintenance needs. Optional modules such as nut feeding systems and biscuit placing systems further extend its versatility.

Benefits

  • Enhances production flexibility with modular design adaptable to various chocolate inclusions and fillings.
  • Minimizes operational downtime with high-speed, Servo-driven continuous operation.
  • Conserves energy through optimized motor control for efficient power use.
  • Simplifies maintenance and product changeovers with HMI-stored recipes and quick-release components.
  • Ensures product consistency and quality with precise moulding and depositing capabilities.

General


Applications
Chocolate,Sweets,Biscuits,Snacks
End products
Chocolate bars with fruit inclusions,Chocolates with biscuit inside,Chocolate bars with nut inclusions,Center-filled chocolates,Whole nut chocolates,Chocolates with raisin pieces,Chocolates with rice crisps,Chocolates with wafer inside,Aerated chocolates
Steps before
Ingredient preparation,Chocolate tempering,Nut preparation,Wafer/biscuit preparation,Caramel/praline preparation
Steps after
Cooling,Demoulding,Quality inspection,Wrapping,Packaging
Input ingredients
chocolate slabs,centre filled chocolates,whole nuts,chopped nuts,fruit pieces,rice crisp pieces,raisins,biscuits,wafer sticks,aerated chocolate
Output ingredients
chocolate articles,chocolate bars with fruit inclusions,chocolate bars with nut inclusions,chocolate bars with wafer,chocolate bars with biscuit,caramel centres,praline centres,fondant centres,crème centres,jelly centres
Market info
AMP Rose is renowned for manufacturing and supplying high-quality machinery for the confectionery, chocolate, and snack industries, offering innovative solutions and engineered-to-order equipment tailored to meet specific customer needs.

Technical Specifications


Output
Up to 20 moulds/minute
Output
400 – 2,800 kg/hr
Mould Size
622 x 233 x 34mm / 922 x 233 x 34mm
Servo Motor Control
Synchronous,high-speed
Material
Stainless Steel
Speed
High speed depositing cycles
Filling Rate
Up to 60%
Doors
60mm thick,food-grade stainless steel
Insulation
Complete insulation for cooling profile
Deposit Method
Spot or Ribbon
Mould Transition
Smooth,low breakage
Cooling Control
Maintained cooling profile
Changeover Capability
Quick product change-overs
Control Interface
HMI with pre-set recipes
Motors
Servo motors for depositor pistons

Operating Characteristics


Automation level
Servo motors for various operations
Batch vs. continuous operation
Continuous
Integrated steps
One-shot depositing,Centre pin mounts,Servo-driven
Changeover time
Quick product change-overs through HMI
Cleaning method
Hygienic,Stainless steel doors,Easy to clean
Energy efficiency
Monitored motor torque settings
Air incorporation control
Smooth mould flow with Servo motors

Material Compatibility


Cleanability
Stainless steel construction
Corrosive resistance (e.g. acids)
Yes
Abrasion resistance
No
Biological compatibility
Food-grade stainless steel
Density/particle size
N/A

Physical Characteristics


Machine footprint
Modular design
Mould size
622 x 233 x 34 mm and 922 x 233 x 34 mm
Main frame material
Stainless steel
Mould mechanism
Centre pin mounts on continuously moving chains
Door thickness
60 mm
Operation level
Ground level monitoring
Control mechanism
HMI with servo motors
Door material
Food-grade stainless steel

Custom Options


Modular Design
Expandable for future capacity increase or specific modules
Control Panel Type
HMI for quick product change-overs and recipe storage
Integration Possibilities
Nut/chocolate mixer,biscuit,and wafer placing system
Depositor Settings
Spot or ribbon deposits,adjustable fill rates
