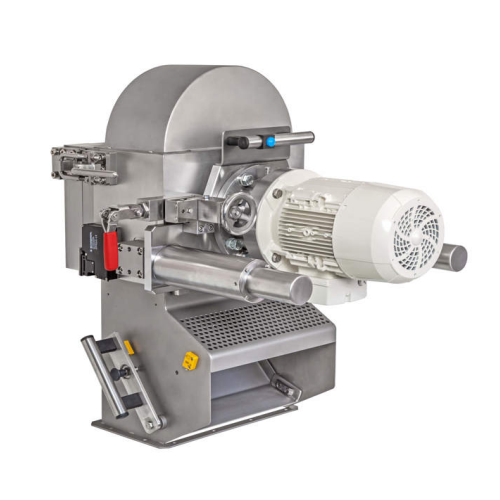

Centric pelletizer for direct extrusion

Effortlessly transform materials into uniform granules with our high-speed pelletizing solution, ensuring precise control over pellet length and consistency across vast throughput scenarios.

Pelletizes and Cuts Extruded Materials

The Centric Pelletizer ZGF Series from Coperion is engineered to enhance pelletizing efficiency for a wide range of industries, including food, pet food, chemicals, and pharmaceuticals. What sets this equipment apart is its precise knife rotor system, which centrally aligns to the die plate, cutting extruded products directly at the end of the extruder. This configuration ensures uniform pellet length and maintains high product quality. Ideal for producing cornflakes, fish pellets, dog kibble, polymer pellets, and pharmaceutical tablets, the series supports continuous, high-speed operations with adjustable pellet length through variable knife speeds. The ZGF Series integrates seamlessly with twin screw extruders, connected via quick release mechanisms for fast assembly and disassembly, minimizing downtime in your production line. Its stainless steel construction provides corrosion resistance, suitable for various operational environments. Moreover, the pelletizer comes equipped with a safety feature to ensure the hood remains closed until the motor stops, enhancing operational safety. Customization options, such as the number of knives and rotor speed, allow you to tailor the machine to specific production needs, supported by Coperion’s engineering expertise.

Benefits

  • Ensures consistent pellet quality with precise die-edge cutting for uniform size and shape.
  • Minimizes production interruptions with quick-release connections for fast maintenance and cleaning.
  • Enhances operational safety with a motor stop interlock that prevents accidental openings.
  • Customizes production to specific needs with adjustable knife speed and configurations.
  • Supports high-speed continuous operations, optimizing throughput in demanding industrial environments.

General


Applications
Pet food,Extruded chemical products,Aquatic feed,Cereals,Pharmaceuticals
End products
Cornflakes,Pharmaceutical tablets,Dog kibble,Fish pellets,Polymer pellets
Steps before
Mixing,Extrusion,Feeding,Material Blending
Steps after
Cooling,Packaging,Quality Control,Distribution
Input ingredients
directly expanded food stuffs,extruded chemical products,pharmaceutical materials,cereals,aquatic feed,pet food
Output ingredients
pellets,pelletized products
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Motor power
1.1–111 kW
Knife speed
300–3,000 min-1
Vertical chute,free volume L x W x H
150 x 200 x 144 mm,200 x 400 x 400 mm,305 x 560 x 530 mm
Pellet length control
Adjustable by knife number and speed
Quick release connections
Yes
Swivellable components
Pelletizer hood and die holder
Safety device
Prevents hood opening until motor stops
Knife rotor
Spring-loaded

Operating Characteristics


Knife rotor alignment
Centrally to the die plate
Pellet length control
Number of knives/speed of knife rotor
Die plate changeover
Quick release connections
Cleaning accessibility
Easy access to screws and die plate
Safety mechanism
Hood does not open until motor stop
Operation control
Spring-loaded knife rotor
Pellet discharge
Start-up flap

Material Compatibility


Cleanability
Easy access for cleaning
Corrosive resistance
Stainless steel construction
Biological compatibility
Yes

Product type Characteristics


Suitable for extruded chemical products
Yes
Suitable for pharmaceutical applications
Yes
Suitable for directly expanded food
Yes

Physical Characteristics


Machine footprint
ZGF 301,150 x 200 x 144 mm
ZGF 704,200 x 400 x 400 mm
ZGF 1251,305 x 560 x 530 mm
Knife arrangement
Centrally to the die plate
Knife rotor
Spring loaded on the die plate
Die holder
Swivellable
Discharge method
Through the start-up flap in strand or pellet form
Quick release connections
Yes,for easy attachment

Custom Options


Knife Speed
300 – 3,000 min-1
Pellet Length Adjustment
Number of knives and knife rotor speed
Die Plate Changeover
Quick release connections
Swivellable Hood and Die Holder
For easy access and cleaning
Knife Rotor Spring Loading
Adjustable during operation
Start-up Discharge
Through start-up flap
