Central chiller for consistent process cooling
Optimize your production with modular central chillers offering scalable cooling solutions for seamless integration into complex process environments, ensuring precise temperature control and efficient energy use.
Controls and Stabilizes Process Temperatures

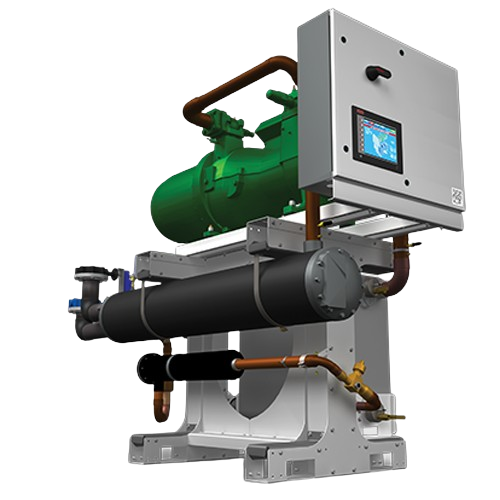

The Trident™ GS Series Modular Central Chillers from AEC integrate advanced component design to deliver efficient process cooling across various industries, including plastics, chemical processing, and food and beverage. This equipment excels in controlling and stabilizing process temperatures by utilizing a modular setup, allowing scalability from 50 to 120 tons per circuit. You can seamlessly expand capacity by paralleling circuits to match increased production demands. This system ensures robust temperature management with its stainless steel, copper brazed plate evaporator and semi-hermetic dual screw compressors, which feature crank case heaters and pressure sensors for optimal performance. The chillers employ intuitive state-of-the-art controls for straightforward operation and integration into existing systems, enhanced by a variety of communication protocols such as Ethernet, Modbus, and BACnet. Designed for continuous, automated high-capacity operations, this chiller offers compact versatility with energy efficiency through variable-frequency drive fan control and an accessible NEMA 12-style electrical control enclosure. Ideal for applications like PET bottle production, metal sheet cooling, and vaccine processing, the Trident™ GS Series can be customized to meet specific requirements, providing reliable and versatile cooling solutions for demanding industrial environments.
Benefits
- Enhances production efficiency with scalable chilling capacity to meet growing demand.
- Minimizes energy usage through advanced motor control and VFD fan operation.
- Streamlines system integration using universal communication protocols for easy connectivity.
- Reduces maintenance time with tool-less evaporator access and washable condenser filters.
- Ensures consistent product quality with precise temperature control across various industrial applications.
- Applications
- Chemical processing,Material handling industries,Blown film production,Plastics manufacturing,Hvac systems,Food and beverage industry,Process cooling,Metal processing,Industrial refrigeration systems,Pharmaceutical production
- End products
- Beverages,Sauces,Pharmaceutical oils,Liquid chemicals,Foam products,Pet bottles,Polypropylene sheets,Fermented products,Vaccines,Cpp films,Chemical resins,Cooling coils,Metal sheets,Industrial chillers,Hdpe containers,Pvc pipes,Ldpe films,Polyethylene films
- Steps before
- Material Handling,Blending,Conveying,Pre-chilling setup
- Steps after
- Cooling,Size Reduction,Granulating,Packaging
- Input ingredients
- water,heat transfer fluid,refrigerant
- Output ingredients
- chilled water,cooling capacity,leaving fluid temperature,heat
- Market info
- AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.
- Cooling Temperature Range
- 30°F to 65°F (-1°C to 18°C)
- Cooling Capacity per Circuit
- 50 tons to 120 tons
- Modular Scalability
- Parallel integration with same-size circuits
- Evaporator Type
- Stainless steel,copper brazed plate
- Control Set Communication Protocol
- Ethernet,Modbus,BACnet
- Chilled Water Line Flow Sensor
- Included
- Condenser Temperature Rating (Air-Cooled)
- Rated to -20°F (-29°C) ambient
- Electrical Control Enclosure Type
- NEMA 12-style
- Manifold Assemblies
- Available for water-cooled or air-cooled units
- Power Connection
- Single-point power and ground wiring
- Temperature range
- 30°F to 65°F (-1°C to 18°C)
- Automation level
- Intuitive controls / PLC
- Modular capability
- Paralleling circuits
- Scalability
- 50 tons to 120 tons per circuit
- Connectivity
- Ethernet,Modbus,BACnet
- Maintenance
- Effortless maintenance
- Plug-and-play capability
- Ultimate plug-and-play
- Compact footprint
- Space-saving package
- Control panel type
- Intuitive controls
- Cooling temperature range
- 30°F to 65°F (-1°C to 18°C)
- Cooling Capacity per Circuit
- 50 to 120 tons
- Evaporator type
- Stainless steel,copper brazed plate
- Evaporator design
- Shell and tube
- Condenser type
- Remote air-cooled with aluminum v-coils
- Condenser ambient rating
- -20°F (-29°C)
- Evaporator inlet strainer
- TS Tech™ tool-less
- Connectivity
- Market leading connectivity
- Scalability
- Parallel with other circuits
- Power connection
- Single-point power and ground wiring
- Control enclosure
- Fully accessible NEMA 12-style
- Maintenance
- Virtually effortless
- Control panel type
- Intuitive controls with dashboard sets
- Integration possibilities
- Compatible with AEC pump tanks
- Modularity
- Circuits can parallel with others for scalability
- Connectivity
- Ethernet,Modbus,BACnet protocols
- Plug-and-play capability
- Integrated control set across units
