Capsule polisher for pharmaceutical capsules

Ensure your capsules are free from dust and perfectly polished with a solution that integrates seamless upwards conveying, minimizing product jams and optimizing efficiency in high-speed continuous operations.

Polishes and Dedusts Capsules Efficiently

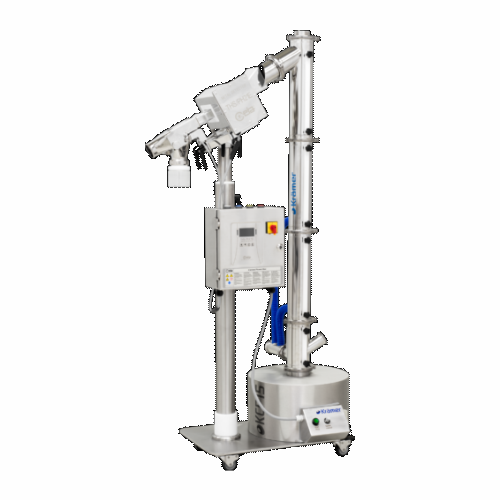

The KCP15 from Krämer AG is a versatile capsule polisher and deduster that elevates the polishing process in pharmaceutical and nutraceutical production lines. Specially designed with a rotational spiral brush, it efficiently removes excess dust while polishing capsules of all sizes, ensuring pristine end-products like gelatin and softgel capsules. With an upward conveying range of 800 to 2000 mm, it seamlessly integrates with existing setups, featuring dust-tight Tri-Clamp connections and compatibility with metal detectors such as Ceia, Lock, and Safeline. Its modular structure allows for quick assembly and disassembly without tools, making cleaning a breeze. Certified for ATEX Zone II 2D/- Db 140 °C and compliant with cGMP standards, the KCP15 guarantees safety and regulatory adherence. Its compact design minimizes footprint, while the quiet operation at under 68 dB supports a conducive working environment. Additionally, the KCP15 supports continuous, high-speed operations and can be easily customized with options like inlet and outlet adapters, metal detector inserts, and various diverter systems.

Benefits

  • Enhances product quality with efficient polishing and dedusting to ensure pristine capsules.
  • Facilitates seamless production line integration with modular design and multiple connection options.
  • Minimizes downtime with tool-free assembly and disassembly, streamlining maintenance and cleaning.
  • Ensures compliance and safety with certifications for ATEX Zone II and cGMP standards.
  • Operates quietly at under 68 dB, maintaining a low-noise environment conducive to continuous production.

General


Applications
Pharmaceutical capsules,Supplements,Pharmaceutical tablets,Nutraceuticals,Effervescent tablets
End products
Gelatin capsules,Softgel capsules,Antihistamine tablets,Multivitamin capsules,Herbal supplement capsules,Electrolyte effervescent tablets,Vegan capsules,Vitamin c effervescent tablets,Pain relief tablets
Steps before
Capsule Filling,Tablet Compression
Steps after
Metal Detection,Sorting,Packing
Input ingredients
capsules,tablets,mini/micro-tablets,effervescent tablets
Output ingredients
polished capsules,dust-free capsules,sorted capsules,cleaned tablets
Market info
Kraemer is known for designing and manufacturing customized engineered-to-order equipment for industrial applications, leveraging advanced engineering expertise to deliver high-quality, reliable solutions tailored to meet specific client needs in various sectors.

Technical Specifications


Noise emission (1 m)
< 68 dB(A)
Elevation height
800-1200-1600-2000 mm
Outlet height
930-2130 mm
Inlet height adjustable
503 mm
Total height
1465-2665 mm
Conveying technology
Upward conveying brush
Drive unit technology
Gear motor
Footprint
932-545 mm
Product contacting parts
AISI 316L,stylon,PET-G,PUR
Weight
105-150 kg
Compressed air
Ø6/4mm,50-100 l/min (p=1.5-2 bar)
Air extraction
2" tri-clamp,100-250m³/h (p=10-20 mbar)
Product inlet
2" tri-clamp
Product outlet
Ø 66 mm
Protection rating drive unit
IP54
Protection rating housing/controller
IP50
Controller
Control with potentiometer
Metaldetector models
Ceia THS/PH21 EE,Lock PH IQ4,Safeline Tablex 2S
Metaldetector sensitivities
Ceia SS316L=0.50 / FE=0.30 / N-FE=0.35,Lock SS316L=0.50 / FE=0.30 / N-FE=0.35,Safeline SS316L=0.50 / FE=0.30 / N-FE=0.40
Processing of tablets (var. forms)
Ø3-35 mm
Processing of mini/micro-tablets
Ø1.5-3 mm
Processing of effervescent tablets
Ø25-35 mm
Processing of capsules
Nr. 4-00
Conveying speed capsule size Nr. 4
300,000 caps/h
Conveying speed capsule size Nr. 00
250,000 caps/h
Explosion protection
ATEX 94/9/EGII 2D/- Db 140 °C
OEL Level acc. SMEPAC
OEB 3-4

Operating Characteristics


Working mechanism
Rotational spiral brush
Integrated steps
Polishing,dedusting
Automation level
Manual / PLC control
Cleaning method
Easy assembly/disassembly without tools
Batch vs. continuous operation
Continuous
Conveying height
800-2000 mm
Containment
OEB 3-4 compliant
Quiet operation
Noise level < 68 dB
Speed adjustment
Continuously adjustable
CIP/SIP
No,easy manual cleaning
Energy efficiency
Optimized for minimal footprint
Dust collection
2 inch Tri-Clamp vacuum port

Material Compatibility


Cleanability
Easy to clean,no tools needed
Corrosive resistance (e.g. acids)
AISI 316L stainless steel

Product type Characteristics


Capsule processing
Polishing,dedusting,conveying


ATEX certification
ATEX 94/9/EGII 2D/- Db 140 °C
CE compliance
Yes
CGMP compliance
Yes
OEB containment certification
OEB 3-4

Physical Characteristics


Machine footprint
932-545 mm
Conveying height
800-2000 mm
Total height
1465-2665 mm
Outlet height
930-2130 mm
Inlet height
503 mm adjustable
Weight
105-150 kg
Compact design
Minimum footprint
Discharge method
2" Tri-Clamp connections
Control panel type
Easy to use control panel
Brush design
Rotational spiral brush

Custom Options


Control panel type
Control with potentiometer
Modularity
400 mm modular structure
Disassembly Ease
No tools needed
Compatibility with Metal Detectors
Ceia,Lock,Safeline
Connection Ports
2 inch Tri-Clamp
Inlet Adapter Option
Available
Outlet Adapter Option
Available
Air Extraction Adapter Option
Available
Metal Detector Test Tablet Insert Device
Option KT2010
WIP Manual/Auto Option
Available
2-Way Diverter Manual Option
KV2010 DT/WIP
2-Way Diverter Auto Option
KV2020 DT/WIP
2-12 Way Diverter Auto Option
V40000-V5000 DT/WIP
Filling Level Sensors Option
Available
Air Extraction Monitoring Option
Available
Validation Documentation Option
Available
Material Certificates Option
Available
