Capsule filler for high-speed, dust-free capsule production

Enhance your production efficiency with a solution designed to handle challenging powders, minimizing waste while ensuring precise, high-speed filling of capsules, tablets, and soft gels. Ideal for operations needing reliable, dust-free processing and seamless integration into existing lines for optimal output.

Fills and Weighs Capsules with Precision

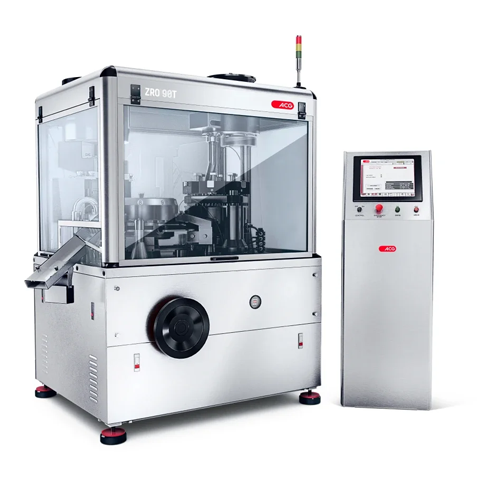

The ZRO 90T from ACG is a high-speed capsule filling machine designed to enhance yield and efficiency for pharmaceutical and nutraceutical manufacturers. Utilizing patented Zero Relative Motion (ZRM) technology, it simplifies the filling process for challenging powders and minimizes waste. Capable of processing up to 90,000 capsules per hour, it supports a wide range of applications, including hard and soft gelatin capsules, tablets, and low-dose APIs. The machine offers seamless integration into existing production lines with ACCURA 100% capsule check-weighing, ensuring precision and compliance with industry standards. With its ability to handle powders as well as granules, and providing partial filling capabilities, the ZRO 90T is adaptable and supports quick mechanical changeovers to maximize productivity and minimize downtime.

Benefits

  • Enhances capsule yield by minimizing powder wastage.
  • Supports diverse formulations, including low-dose APIs, expanding product offerings.
  • Ensures dust-free operation, improving workplace safety and cleanliness.
  • Quick changeover reduces downtime, maximizing productivity.
  • Compatible with check-weighing systems for precise quality control.

General


Applications
Supplements,Soft gels,Nutraceuticals,Micro-tablets,Low-dose apis,Tablets,Inhalation formulations,Capsules,Pharmaceuticals
End products
Allergy medication capsules,Micro-tablets for pediatric formulations,Herbal supplement capsules,Vitamin c tablets,Probiotic capsules,Omega-3 fish oil soft gels,Cold and flu relief capsules,Soft gelatin capsules,Low-dose inhalable bronchodilators,Hard gelatin capsules
Steps before
Grinding,Mixing,Blending
Steps after
Weighing,Packaging,Inspection,Coating
Input ingredients
powders,pellets,tablets,micro-tablets,capsules,soft gels
Output ingredients
capsules filled with powders,capsules filled with pellets,capsules filled with tablets,capsules filled with micro-tablets,capsules filled with capsules,capsules filled with soft gels
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Capsule sizes
000 to 5
Maximum speed
90,000 capsules/hr
Stations
10
Partial filling capability
As low as 25 mg
Filling purpose
Powders,pellets,tablets,micro-tablets,capsules,soft gels

Operating Characteristics


Filling speed
Up to 90,000 capsules/hr
Batch vs. continuous operation
Batch
Changeover time
Under 1 hour
Capsule sizes compatible
000 to 5
Automation level
Automated with PLC
Dust-free operation
Ensured

Material Compatibility


Partial filling capability
25 mg
Capsule size compatibility
000 to 5

Custom Options


Control panel type
HMI with touchscreen
Integration possibilities
Seamless integration with ACCURA check-weigher
Adaptability
Fully adaptable to a range of capsule products
Capsule size adaptability
000 to 5
