Bottom coating system for confectionery production

Optimize your confectionery line with precision bottom coating, ensuring consistent chocolate layers that enhance texture and flavor, ideal for crafting a variety of chocolate-coated products with customizable thickness.

Performs Bottom Coating and Pre-Dipping

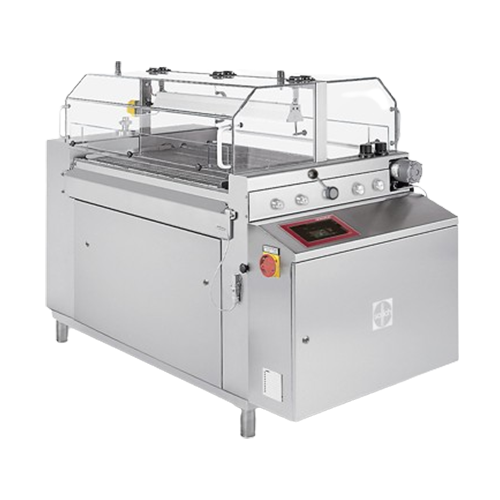

The BM 6 / BT 6 from Sollich is designed to revolutionize your confectionery production with precise bottom coating and pre-dipping of products such as biscuits, bars, praline centers, and more. What sets this equipment apart is its patented bottoming device with counter-rotating rollers that ensure consistent coating thickness. It employs advanced temperature control for optimal coating quality and integrates seamlessly into existing production lines, offering options for external or built-in temperature systems. The machine caters to high-speed operations and is easy to operate with minimal manual intervention.

Designed for continuous use, the BM 6 / BT 6 achieves high throughput while maintaining quality, thanks to features like an adjustable licking roller for uniform texture and a hold-down roller for controlled half-coating. Its construction offers easy cleaning and maintenance, adhering to high hygienic standards. Available in working widths from 620 to 1300 mm, it can be customized to meet specific production needs, with options for materials that ensure corrosion resistance and durability. The inclusion of a biscuit turning device enables innovative product handling, enhancing flexibility and efficiency in confectionery processing.

Benefits

  • Ensures consistent product quality with precise coating thickness and uniform texture.
  • Enhances productivity with high-speed and continuous operation capabilities.
  • Reduces operational costs through easy maintenance and quick cleaning processes.
  • Increases production flexibility with adjustable features for various coating applications.
  • Improves product handling, allowing complex layering and innovative confectionery designs.

General


Applications
Biscuits,Snacks,Pralines,Chocolate products,Sweets,Bars,Coating materials
End products
Coated fruit bites,Praline centers,Chocolate pralines,Cereal bars,Confectionery dragees,Enrobed nuts,Bottom-coated confectionery products,Chocolate-coated biscuits,Nut clusters with chocolate coating,Chocolate snack bars,Protein bars
Steps before
Tempering,Cooling,Mixing,Dosing
Steps after
Full Coating,Sprinkling,Decorating,Product Handling
Input ingredients
chocolate mass,confectionery products,nuts,cereal bars,candy bars,fruit bars,brittle bars,chocolate liquors
Output ingredients
bottom coated chocolates,enrobed confections,half-coated products,uniformly coated bottoms,pre-dipped bottom products
Market info
Sollich is known for manufacturing engineered-to-order equipment for the confectionery industry, particularly chocolate processing and enrobing machines. They have a strong reputation for innovation, quality, and tailored solutions to meet specific customer requirements.

Technical Specifications


Working width
620 up to 1300 mm
Length
0.95 m
Uniform enrobing thickness
Yes
Temperature control type
Turbo / External
Licking roller adjustment
Yes

Operating Characteristics


Working mechanism
Counter-rotating bottoming roller
Integrated steps
Pre-dipping and bottom coating
CIP/SIP
Easy to clean design
Temperature control
Built-in turbo temperature control
Batch vs. continuous operation
Inline Continuous
Biscuit turning device
For turning bottom-coated products

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Not specified
Working Width
620 up to 1300 mm
Length
0.95 m
Bottoming Roller
Counter-rotating
Licking Roller
Adjustable
Discharge Method
Not specified
Biscuit Turning Device
Available
Roller Bed
For very thin coatings

Custom Options


Control panel type
Manual / PLC / HMI
Integration possibilities
External temperature control compatibility
Coating options
Pure bottom coating / Pre-dipping
Working width
620 mm to 1300 mm
Temperature control type
Built-in turbo control / External control
Roller adjustment
Adjustable licking roller
