Bin blender for pharmaceutical powder mixing
Achieve uniform mixing and homogenization of dry powders directly in storage bins, eliminating the need for additional handling and ensuring a seamless batch processing workflow.
Mixes and Homogenizes Pharmaceutical and Chemical Powders

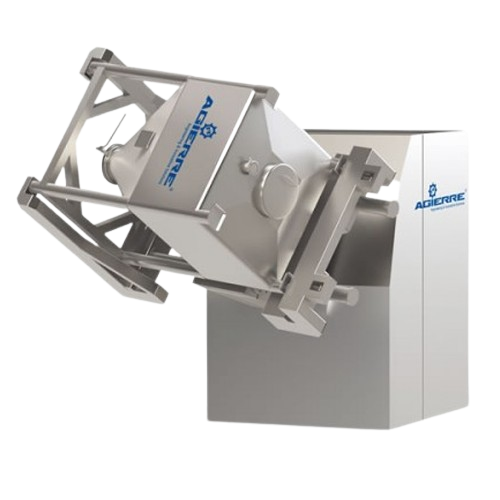

The Bin Blender Tumbler from AGIERRE is engineered to enhance the mixing and homogenization of dry powders within the pharmaceutical and chemical industries. Its unique design, featuring a dual 15° inclination and bidirectional rotation, ensures efficient powder blending directly within storage bins. This not only eliminates the need for manual loading and unloading but also minimizes cleaning downtime. Primarily used in the creation of tablet formulations, APIs, and specialty chemical compounds, the equipment offers adjustable speeds between 4 to 20 rpm, accommodating various batch processing requirements. It is built from durable AISI 304 stainless steel, ensuring resistance to corrosion and adherence to cGMP standards. A PLC system automates operations, integrating seamlessly with existing production lines, while magnetic sensors and photoelectric barriers enhance operational safety. The Bin Blender Tumbler supports capacities up to 2000 kg, making it a versatile option for diverse powder processing applications.
Benefits
- Achieves uniform powder blends, eliminating inconsistencies in final products.
- Minimizes handling and cleaning time, boosting overall production efficiency.
- Enhances operational safety with integrated sensor systems and barriers.
- Handles diverse batch sizes up to 2000 kg, supporting scalable production needs.
- Complies with cGMP standards, ensuring quality in pharmaceutical manufacturing.
- Applications
- Nutraceuticals,Pharmaceutical powder,Fine chemicals
- End products
- Tablet formulations,Dietary supplement mixtures,Active pharmaceutical ingredients (apis),Capsule fill mixes,Specialty chemical compounds,Vitamin powder blends,Nutrient supplements
- Steps before
- Powder Handling,Loading,Material Preparation,Weighing
- Steps after
- Unloading,Batch Analysis,Quality Control,Packaging
- Input ingredients
- dry powders,storage containers,pharmaceutical powders,chemical powders
- Output ingredients
- homogeneously mixed powders
- Market info
- Agierre is known for its expertise in designing and manufacturing customized engineered-to-order industrial equipment, with a strong reputation for innovation, quality, and delivering tailored solutions to meet specific client needs in various industries.
- Rotation speed
- 4–20 rpm
- Capacity
- Up to 2000 kg
- Inclination angle
- 15°
- Automation
- PLC-controlled
- Material
- AISI 304 and carbon steel
- Motor type
- Electric motor with gearbox
- Electromechanical locking system
- Yes
- Cyclic operation
- Orial and antioral rotation
- Working mechanism
- Rotating double-inclined
- Batch vs. continuous operation
- Batch
- Automation level
- PLC-controlled
- Cleaning method
- Easily cleanable,manual
- Rotational speed
- 4 rpm to 20 rpm
- Load/unload operation
- Horizontal positioning
- Locking mechanism
- Electromechanical
- Biological compatibility
- Pharmaceutical-grade
- Cleanability
- Easy to clean,cGMP compliant
- Corrosive resistance (e.g. acids)
- AISI 304 steel construction
- Abrasion resistance
- Yes,suitable for handling powders
- Container type
- BIN / IBC
- Bin/Basket size
- Up to 2000 kg
- Rotation angle
- 15° double inclination
- Material of construction
- AISI 304 Stainless Steel
- Rotation direction
- Clockwise/Counterclockwise
- Control panel type
- PLC-controlled
