Big bag unloading station for solid materials
Streamline your production line by efficiently handling and dosing bulk solid materials, ensuring precise dosage and seamless integration with downstream processing.
Efficiently Unloads and Doses Bulk Solids

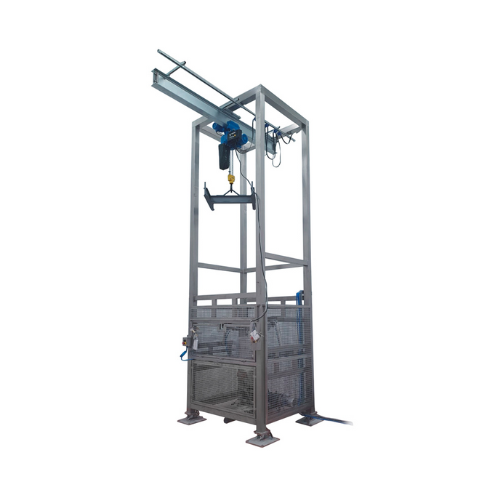

The Big Bag Unloading Station from INOXPAGO is meticulously engineered to streamline the handling and dosing of bulk solids like sugar, flour, and salt. This equipment stands out due to its robust design featuring a ATEX-compliant hoist for safe lifting and a sophisticated system of rotary and gate valves for precise dosing.
Operating on a principle of vertical support and controlled material transfer, it is tailored for applications across the food, dairy, bakery, and pharmaceutical industries. Capable of managing materials with granular consistency, the station supports processing capacities from 180 kg/h to 2.5 t/h, enabling seamless integration into your production line.
With an option for pneumatic vibration and a solids level detector, it ensures efficient unloading, tackling industry-specific challenges such as anti-caking and flow consistency. Constructed with corrosion-resistant AISI 316 stainless steel for product-contact parts, it meets FDA standards and offers optional configurations for enhanced customization and compliance with stringent industry regulations.
Benefits
- Enhances operational safety and efficiency with ergonomic design and ATEX-compliant hoist.
- Maximizes productivity by handling up to 2.5 t/h, with quick adaptability to varying product types.
- Minimizes material wastage with precise dosing and controlled flow systems.
- Reduces downtime through easy cleaning and maintenance with integrated CIP system.
- Ensures compliance with industry standards using FDA-approved materials and optional ATEX features.
- Applications
- Grains,Sugar,Flour,Starch,Bakery products,Food products,Powders,Solids,Salt,Dairy products
- End products
- Confectionery sugar,Table salt,Cornstarch,Cake flour,Sliced bread,Dry soup mix,Milk powder,Protein powder,Rice grains
- Steps before
- Grinding,Sifting,Crushing
- Steps after
- Dosing,Mixing,Blending
- Input ingredients
- sugar,flour,salt,solid food products,powder form materials,starch,leaf,grain
- Output ingredients
- dosed solid food products,decanted raw material
- Market info
- INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.
- Flow rate with rotary valve
- 2.5 t/h
- Flow rate with endless screw (for sugar)
- 180 kg/h to 1,450 kg/h
- Flow rate with endless screw (for flour)
- 180 kg/h to 1,100 kg/h
- Hoist capacity
- 2,000 kg with ATEX control unit (on request)
- Structure dimensions
- 1650x1350x5235 (mm)
- Material compatibility
- Flour,Starch,Leaf,Grain,Sugar,Salt
- Pneumatic vibration
- Facilitates decanting of raw material
- Pressurization
- Applied to extraction components for sugar or salt
- Materials in contact with product
- AISI 316 stainless steel
- Other stainless steel parts
- AISI 304
- Seals in contact with product
- TR08 FDA cellular silicone
- Bag closing system
- Available
- Batch vs. continuous operation
- Batch / Inline Continuous
- Automation level
- Manual / PLC / SCADA
- CIP/SIP
- CIP 121°C / SIP 135°C
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Cleaning method
- CIP / Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Structure size
- 1650x1350x5235 mm
- Hoist capacity
- 2000 kg
- BigBag flow rate
- 2.5 t/h with rotary valve
- BigBag flow rate
- 180–1450 kg/h for sugar with endless screw
- BigBag flow rate
- 180–1100 kg/h for flour with endless screw
- Material contact type
- AISI 316
- Other stainless steel parts
- AISI 304
- Guards material
- Aluminium
- Seals contact type
- TR08 FDA cellular silicone
- Control panel type
- ATEX block and tackle control unit
- Control panel type
- Non-standard ATEX marking
- Discharge method
- Pneumatic vibration
- Bag closing system
- Included
- Structure options
- Single / Double / Triple structure
- Weighing system
- Available
- Anti-caking system
- Available
- Safety guards material
- Aluminium / Stainless steel
