Belt dryers for gelatin processing

Efficiently transform liquid gelatin into high-quality solids with precise moisture control and gentle thermal treatments, ensuring optimal product consistency and meeting stringent quality standards in your production line.

Dries and Processes Gelatin for Production

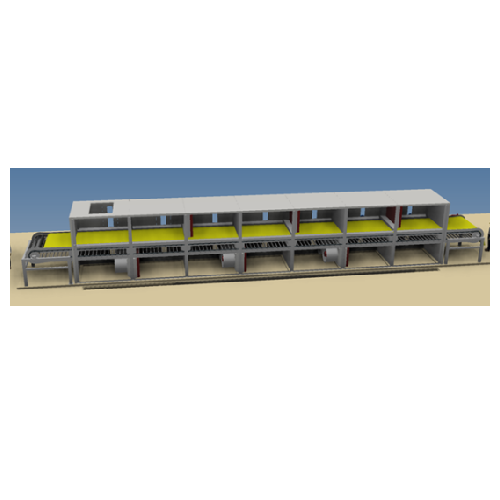

The industrial belt dryer from TEMA Process is engineered for the precise drying of gelatin, catering to food and pharmaceutical producers. It uses segmented drying zones with adjustable air volumes, temperature, and humidity for optimal thermal efficiency. Ideal for gelatin sheets, gummy bears, and capsule production, this dryer integrates seamlessly into continuous, automated production lines. With a capacity to handle large volumes, it minimizes energy consumption via hot water or heat pump systems. Constructed with hygienic stainless steel for easy cleaning, it also includes metal detection systems and dehumidification with a salt solution. The equipment meets rigorous GMP standards and offers customizable configurations to suit specific production needs.

Benefits

  • Enhances product consistency and quality with precise moisture control.
  • Reduces energy costs through efficient hot water and heat pump systems.
  • Ensures high safety standards with integrated metal detection systems.
  • Simplifies cleaning and maintenance with hygienic stainless steel construction.
  • Customizable to meet specific production requirements, increasing operational flexibility.

General


Applications
Adhesive tapes,Hard and soft capsules,Gelatin,Marshmallows,Pudding,Encapsulation of vitamins,Pâté,Coating of tablets,Yoghurt,Candy bars,Matches,Sausages,Bank notes
End products
Sausage casings,Gummy bears,Yogurt gel packs,Medical adhesive tapes,Safety match head adhesives,Vitamin soft gels,Gel capsules,Pâté jelly layers,Enteric-coated tablets,Gelatin sheets,Anti-counterfeit banknote films,Gelatin dessert packs
Steps before
Extrusion,Chilling,Gelling,Forming Gelatin Noodles
Steps after
Milling,Grinding,Blending,Metal Detection
Input ingredients
gelatin concentrate,moist gelatin,pumpable liquid gelatin
Output ingredients
dry gelatin powder,gelatin noodles,solid gel,dried gelatin,coarse gelatin,fine gelatin powder
Market info
TEMA Process is renowned for its expertise in designing and manufacturing industrial drying solutions, specifically fluid bed dryers and coolers, powder processing equipment, and waste material recycling technologies, recognized for efficiency and innovative technologies across various industries.

Technical Specifications


Moisture Content
10–12%
Automation
PLC-controlled
Airflow control
Continuous
Heating Media
Hot Water / Heat Pump
Temperature Control
Low Temperature
Residence Time
Long
Metal Detection
Free-fall
Dehumidification
Salt Solution
Drying Zones
Multiple
Cooling Medium
Glycol
Humidity Control
Salt Solution
Grinder Type
Fine Grinder
Noodle Forming
Extruder
Air Temperature Range
-20 to +40°C

Operating Characteristics


Working mechanism
Perforated belt dryer
Integrated steps
Drying,dehumidifying,milling
Automation level
PLC / SCADA
Batch vs. continuous operation
Inline Continuous
CIP/SIP
Manual cleaning
Cleaning method
Hygienic design,water cleaned
Energy efficiency
Minimized through heat recovery systems
Changeover time
N/A

Material Compatibility


Cleanability
Hygienic design,easily cleaned with water
Corrosive resistance (e.g. acids)
Corrosion-resistant materials like stainless steel
Density/particle size
Uniform drying for various particle sizes

Physical Characteristics


Machine footprint
Varies depending on configuration
Belt type
Perforated plate belt
Belt width
Full width belt for even distribution
Belt segments
Multiple drying zones
Construction
Stainless steel hygienic design
Discharge method
Vibrating chute
Segmented design
Drying zones with air controls
Cooling integration
Inline cooling after drying

Custom Options


Control panel type
PLC / HMI / SCADA
Heating system type
Hot water / Steam / Electric heat pump
Belt type
Perforated
Airflow control system
Adjustable air volumes
Heating coil configuration
Zone-specific coils
Drying zone setup
Multiple zones
Energy recovery system
Available
