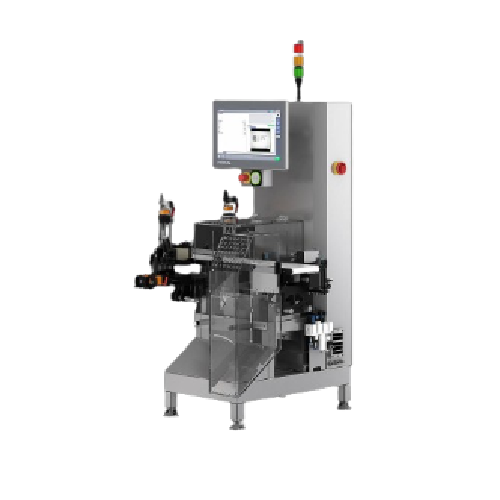

Batch coding system for product verification

Optimize your production line with an integrated system that accurately marks, verifies, and weighs products, ensuring quality and compliance while efficiently managing space and reducing manual intervention.

Marks, Weighs, Verifies, and Ejects Non-Compliant Products

The TQS featuring checkweigher, printer, and camera is a compact batch coding solution from Wipotec, uniquely designed to integrate marking, weighing, and verification in one streamlined process. This system is ideal for pharmaceutical, food, and cosmetics industries, ensuring accurate product identification and quality control. Leveraging a compact design, it efficiently marks products with batch-specific details on the infeed conveyor, followed by immediate verification through a sophisticated camera system. The equipment continuously evaluates each product’s weight and ejects items that fail to meet predefined standards. With a central operation via a 21″ touch panel, the TQS system offers tool-free adjustments and seamless integration into existing packaging lines, enhancing operational efficiency while supporting high-speed, automated batch processing. Its modular architecture ensures easy upgrades, and the system is ready for full serialization, catering to diverse production demands across solid product manufacturing.

Benefits

  • Enhances product quality control by ensuring accurate weight and imprint verification.
  • Streamlines production efficiency with compact design and centralized touch panel operation.
  • Minimizes waste and rework through precise ejection of non-compliant products.
  • Reduces integration complexity with tool-free adjustments and easy incorporation into existing lines.
  • Future-proofs operations with modular upgrades and full serialization capabilities.

General


Applications
Food,Aerosol products,Mail,Chemical products,Cosmetics,Building and mineral compounds,Machinery products,Logistics,Pharmaceuticals
End products
Cosmetic creams,Courier parcels,Pharmaceutical tablets,Cement bags,Spray cans,Chemical solvents,Packaged snacks,Packaged goods,Electronic components
Steps before
Product infeed,Batch preparation
Steps after
Ejection of non-compliant packages,Packaging,Product logistics
Input ingredients
products for marking,packages for weighing,batch-specific information
Output ingredients
marked products,verified imprints,weighed packages,ejected non-conforming products
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Operation
Central control via 21" touch panel
Design
Compact,1,000 mm length
Tool Adjustability
Adjustable without tools
Software Interface
One software/user interface for all modules
Integration
Easy integration into existing packaging lines
Serialization
Ready for full serialization
Modular Upgrade
Easy to upgrade modularly
Batch Coding
Batch-specific information marking
Verification
100% marking verification
Weight Checking
Weighing with checkweigher module
Ejection Mechanism
Ejection of packages with incorrect weight/print
Camera Control
Camera for immediate verification

Operating Characteristics


Integrated Steps
Marking,verifying,and weighing
Automation Level
Centrally controlled via a single interface
Batch vs. Continuous Operation
Batch
Footprint
Minimum space required (1,000 mm length)
Changeover Time
Tool-free adjustments
Cleaning Method
Manual
Energy Efficiency
Ready for full serialization and modular upgrades

Physical Characteristics


Compact design
1,000 mm length
Machine footprint
Minimum footprint
Control panel type
21" touch panel
Discharge method
Integrated ejection for over- or underweight products

Custom Options


Control panel type
21" touch panel
Integration possibilities
Standalone or inline with automatic product infeed
Customization interface
ConfigureFast user interface
Modular upgrade options
Ready for full serialization
