Bag inserter for drums

Effortlessly streamline your packaging process by automatically inserting custom-made bags into drums, ensuring hygienic, cost-effective solutions for bulk storage and protective packaging of powders and food ingredients.

Inserts and Secures Bags in Drums

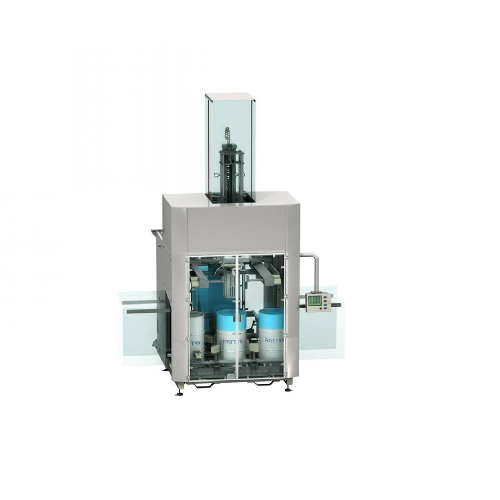

The Razim-21-D from Pattyn Packaging Lines is a cutting-edge bag inserter designed for the food and chemical industries, excelling in precision and hygiene. It automatically forms and inserts bags from gusseted or non-gusseted tubular films into drums, efficiently catered for packing pigment powders, malt powder, spices, and industrial chemicals. This machine can handle up to four drums per minute, integrating seamlessly into automated packaging lines with its PLC control and user-friendly color touch panel. The integrated mechanical plunger and maintenance-free V-shaped guillotine knife ensure precise bag placement and reliable operation. Available in corrosion-resistant materials, it is designed for easy cleaning access, supporting compliance with rigorous hygiene standards. Configurations for different drum sizes and the use of specialized films make it versatile for various operational needs.

Benefits

  • Minimizes material costs with made-to-measure bags from reels.
  • Enhances hygiene by reducing manual handling.
  • Achieves up to four drum insertions per minute for high-speed operations.
  • Supports versatile processing needs with customizable film options.
  • Simplifies maintenance with easy-access design and reliable components.

General


Applications
Drums,Paint powders,Industrial applications,Packaging,Food ingredients
End products
Protective packaging,Bulk food storage,Nutritional supplements,Food flavorings,Drum liners,Spices,Industrial chemicals,Pigment powders,Chemical additives,Malt powder
Steps before
Purification,Formulation,Mixing,Blending
Steps after
Sealing,Labelling,Palletizing,Shipping
Input ingredients
gusseted tubular film,non-gusseted tubular film,drums,special film,aluminium coated film,high barrier film
Output ingredients
bags in drums
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Automation
Automatic
Bag type
Gusseted / Non-gusseted tubular film
Cycle speed
Up to 4 drums/minute
Film cut method
V-shaped guillotine knife
Drum size range
Ø 400 x 400 (D) to Ø 600 x 950 (D)
Liner type
Single / Double

Operating Characteristics


Working mechanism
Automatic bag insertion
Integrated steps
Bag making and inserting
Automation level
PLC-controlled
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Corrosive resistance (e.g. acids)
Compatible with aluminium coated film
Biological compatibility
Suitable for food ingredients
Cleanability
Hygienic design for easy cleaning
Abrasion resistance
Suitable for high barrier film
Density/particle size
Adaptable for paint powders

Product type Characteristics


Container type
Plastic drum / Fiber drum

Physical Characteristics


Machine footprint
Mono footprint / mono height
Drum size
Min. Ø 400 x 400 (D) Max. Ø 600 x 950 (D)
Control panel type
Colour touch panel
Bag type
Gusseted and non-gusseted tubular film
Discharge method
Integrated mechanical plunger

Custom Options


Integrated mechanical plunger
Yes
Control panel type
Colour touch panel
Film types supported
Gusseted / Non-gusseted / Aluminium coated / High barrier
Liner options
Single liner / Double liner
Guillotine knife
V-shaped,maintenance-free
