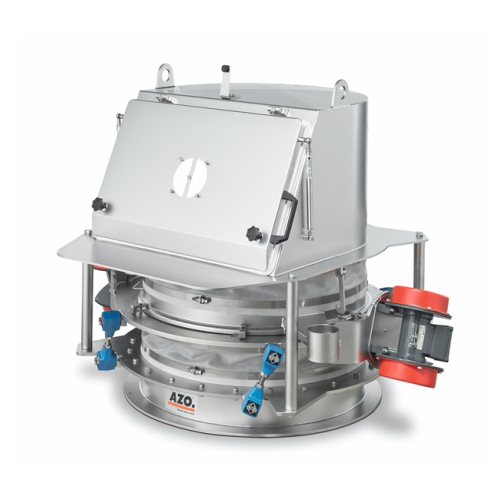

Bag feeding hopper for bulk solids

Optimize your material handling with a robust feeding hopper that seamlessly integrates into your production line, ensuring precise and efficient discharge of powders and granular materials while maintaining superior dust control and coarse material separation.

Facilitates Discharge and Screening of Bulk Materials

The ET…VS GA Vibrating Feeding Hopper from AZO GmbH & Co. KG is designed to overcome the challenges of handling bulk solids with poor flow properties. Featuring an integrated vibrating perforated sheet, it ensures automatic coarse product discharge, preventing packaging residues from entering your production line. The equipment is suitable for applications in the food, chemical, and plastics industries, effectively managing materials such as flour, sugar, and polyethylene granules. Its operation involves a seamless feeding and screening process, activated as the hopper cover opens, ensuring minimal dust exposure. Capable of integration with pneumatic conveying systems, the hopper incorporates various discharge aids, such as vibrators and aeration jets, to enhance flow. Constructed from chrome-nickel-steel with industry-specific finishes, it offers customization options to suit specific material properties, installation requirements, and production line configurations. Additionally, it supports efficient cleaning and maintenance, with all operational tasks accessible from one side.

Benefits

  • Ensures efficient material flow with vibrating discharge, reducing potential blockages.
  • Minimizes dust exposure for improved workplace safety and cleanliness.
  • Enhances product quality by preventing coarse contaminants in the production process.
  • Facilitates easy maintenance with accessible design for rapid screen changes.
  • Offers customizable configurations to integrate seamlessly into existing production lines.

General


Applications
Powdered materials,Granular materials,Food industry,Chemical industry,Bulk solids,Plastics industry
End products
Detergent powder,Baking mixes,Polyethylene granules,Food additives,Sugar,Cornstarch,Granulated sugar,Flour,Pvc resin,Plastic pellets
Steps before
Bag Preparation,Material Mixing,Pre-screening,Weighing
Steps after
Pneumatic Conveying,Dust Collection,Bulk Material Discharge,Product Screening
Input ingredients
bulk solids,powdered materials,granular materials,bags,bulk materials with poor flow properties
Output ingredients
fine material,coarse particles,coarse product discharge
Market info
AZO is renowned for designing and manufacturing automated bulk material handling systems, specializing in mixer feeding, ingredient automation, and process control, known for their reliability and tailored solutions in the food, pharmaceuticals, and chemical industries.

Technical Specifications


Aspiration control
Automatic
Coarse product discharge
Automatic
Material of construction
Chrome-nickel-steel
Surface finish
Industry-specific
Mesh size
2–5 mm (woven polyester fabric)
Various for metal screens
Vibration motor adjustment
Torque and angle inclination adjustable
Hopper capacity
Customizable per requirements
Screen material
Polyester fabric or Chrome-nickel-steel (1.4301)
Filter type
Top-mounted or connection for central aspiration
System type
Closed materials handling / Pneumatic conveying

Operating Characteristics


Working mechanism
Vibrating perforated sheet with coarse product discharge
Discharge assistance
Rappers,vibrators,vibration bottoms,aeration jets
Product flow monitoring
Automatic coarse product discharge
Coarse particle removal
Integrated vibrating perforated sheet
Screen mesh size
2 to 5 mm polyester fabric / special metal screens
Automation level
Automatic aspiration upon cover opening
Dust exposure minimization
Minimal dust exposure via closed system
Screen change method
Quick and easy with standard tools
Product flow direction
Defined via vibration motors and weights
Changeover location
All tasks performed from one side
Batch vs. continuous operation
Batch
Inclination and torque adjustment
Customizable to meet product flow properties

Material Compatibility


Abrasion resistance
Suitable for abrasive bulk materials
Biological compatibility
Food-grade options available
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Chrome-nickel-steel construction
Density/particle size
Adaptable for various densities and sizes


GMP Compliance
Yes
FDA materials
Yes
CE marking
Yes
ATEX certification
Yes
EHEDG certification
Yes

Physical Characteristics


Shape
Cylindrical
Size
Variable (based on customer requirements)
Material
Chrome-nickel-steel
Surface Finish
Industry-specific finishes
Feed Method
Integrated vibrating perforated sheet,rappers,vibrators,vibration bottoms,aeration jets
Discharge Method
Automatic coarse product discharge
Flange Outlet
Standard for downstream systems adaptation
Screen Insert Material
Polyester fabric or chrome-nickel-steel (1.4301)

Custom Options


Material
Chrome-nickel-steel
Surface Finish
Industry-specific
Screen Insert
Polyester fabric or chrome-nickel-steel (1.4301)
Support Type
Support bracket,mounting brackets,or frame
Filter Option
Attached filter or central aspiration connection
Discharge Assistance
Rappers,vibrators,vibration bottoms,or aeration jets
Vibration Screen Mesh
2 to 5 mm polyester or special metal
Installation Location Adaptation
Customized according to building layout
Product Flow Adjustment
Adjustable angle inclination and imbalance torque
