Automatic servo Pet bottle blower

Elevate your production capabilities with a PET bottle blowing machine designed for high-speed, precision blowing across a wide range of beverages and consumer goods, optimizing bottle quality and reducing energy costs through advanced servo motor technology.

Forms PET Bottles with Precision and Efficiency

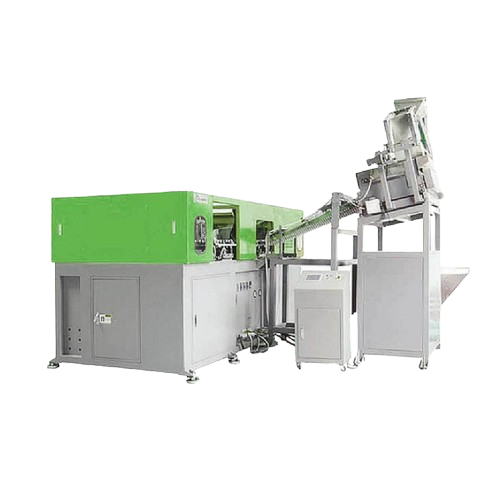

The EBM06 from Alps Machinery is a servo type PET stretch blow molding machine crafted for high-efficiency bottle production across diverse industries. Utilizing servo motors for both clamping and preform positioning, it significantly reduces mold-clamping time, enhancing productivity while maintaining bottle integrity, crucial for applications in beverages, cosmetics, and pharmaceuticals. Capable of producing up to 12,000 bottles per hour, the EBM06 integrates seamlessly into your production line, offering precise controls and reduced energy consumption with its intelligently designed heating system. Its robustness supports varying bottle sizes, from 100ml to 2L, catering to a broad range of end-products such as soda, shampoo, and olive oil bottles. The servo-driven clamping system ensures minimal joint lines, assuring premium finish quality. Additionally, the EBM06’s energy-efficient profile is bolstered by a specialized oven design and adjustable heating parameters, optimizing power use and maintaining an eco-friendly footprint.

Benefits

  • Increases output efficiency by producing up to 12,000 bottles per hour.
  • Lowers energy costs with optimized power-saving heating systems.
  • Ensures superior bottle quality with precision servo-driven clamping.
  • Accommodates diverse product lines with flexible bottle size capabilities.
  • Seamlessly integrates into existing production lines for streamlined operations.

General


Applications
Food,Beverages,Mineral water,Water bottle,Cosmetic bottle,Oil bottle,Juice bottle,Cosmetics,Pharmaceutical products,Pure water,Drinking water,Beverage bottle,Edible oil
End products
Lotion bottles,Spring water bottles,Sparkling water bottles,Olive oil bottles,Sunflower oil bottles,Soda bottles,Perfume bottles,Orange juice bottles,Ketchup bottles,Bloo energy drink bottles,Shampoo bottles
Steps before
Preform Fabrication,Preform Heating,Oven Heating,Preform Drying
Steps after
Bottle Cooling,Beverage Filling,Capping,Labeling,Packing
Input ingredients
PET preform,electric power,servo motor
Output ingredients
PET bottles,water bottles,beverage bottles,juice bottles,oil bottles,cosmetic bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
6000 ~12000 Bottles Per hour
Output capacity (500ml)
6000bph-12000bph
Bottle Sizes
100ml ~2L
Max Voulume
700ml-2000ml
Max. bottle diameter
68mm-106mm
Neck diameter range
18mm~38mm
Total power
70kw-110kw
Main machine size
4.5x2.3x2.6m-5.8x2.6x2.6m
Preform elevator size
2.8x2.8x3.2m-4.5x3.5x3.5m
Weight
7000kg-11000kg
Automation
Automatic
Application
PET stretch blowing
Function
Reverse Osmosis
Cavities quantity
4cavities-9cavities

Operating Characteristics


Working Mechanism
Servo motor driven
Automation Level
PLC-controlled
CIP/SIP
Manual/Cleaning in Place (CIP)
Batch vs. Continuous Operation
Continuous
Energy Efficiency
Power saving design
Changeover Time
Quick mold clamping
Clamping System
Mould Clamping System (Servo system)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
4.5x2.3x2.6 m to 5.8x2.6x2.6 m
Weight
7000 kg to 11000 kg
Preform Elevator Size
2.8x2.8x3.2 m to 4.5x3.5x3.5 m
Cavities Quantity
4 to 9 cavities
Max Bottle Diameter
68 mm to 106 mm

Custom Options


Mould Clamping System
Servo motor system
Control Panel Type
PLC Control
Integration Possibilities
Turnkey Project Integration
Application Range
Multiple bottle sizes,100ml ~ 2L
Energy Saving Design
Servo motor driven
Partnership Brands
Cooperation with international brands
Preform Heating Adjustment
Adjustable lamp position and temperature
